OASE Cascade T Nozzles | Fountains - Water Garden UK

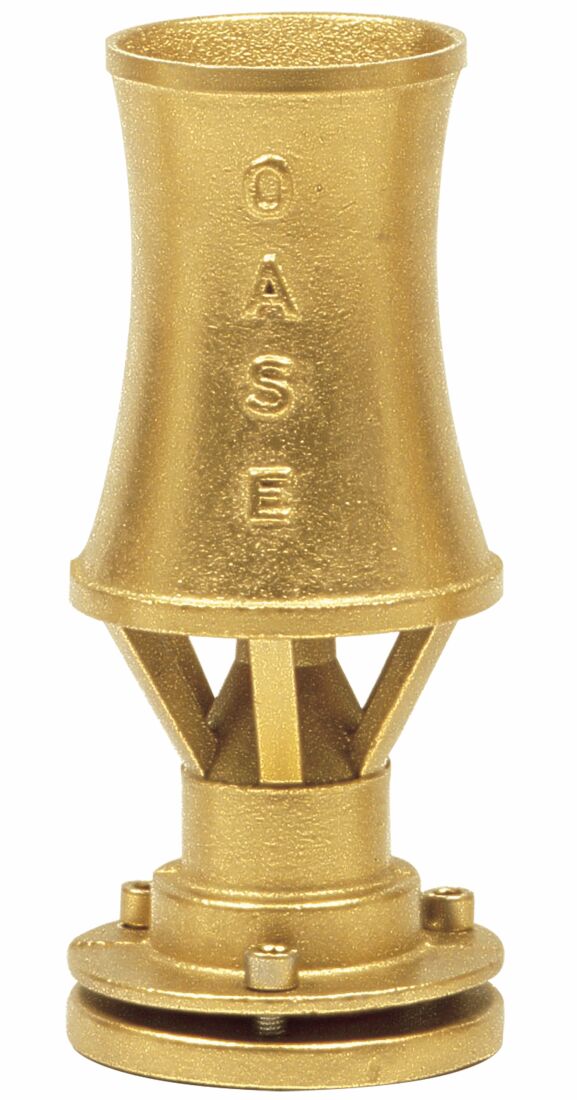

  • The OASE Cascade T are a range of high-flow aerating fountain nozzles. The Cascade T nozzles mix air and water to produce a spume-pattern fountain spray. Cascade nozzles typically produce an irregular jet of water known as the cascade effect.

    The OASE Cascade T range consists of 5 fountain nozzles ranging from 54mm to 137mm in jet orifice size. Considerable fountain heights can be achieved by coupling Cascade nozzles with high flow Aquarius fountain pumps. Aquarius ECO Expert Fountain Pumps can supply the necessary flow and pressure to the Cascade T nozzles and also enable dynamic/dancing functionality.

    Aerating nozzles are ideal for large ponds and are beneficial for water quality. Cascade T nozzles are also very effective for creating water noise to block out external noise pollution from nearby roads.

    OASE Cascade T fountain nozzles are water level dependent and require a stable water level.  In order to perform, water must be maintained at a level above the air intake.

    Find out more
  • Please select from the following options before buying your OASE Cascade T Nozzle
  • QTY

    £234.00 inc. VAT

    £195.00 exc. VAT

  • Please select a product option above in order to add this item to your basket

    Pay in 3 interest free payments of £78.00

Description

Cascade T nozzles are water level dependent. This means these require a constant and stable water level in order to operate effectively. Water level should not be allowed to rise above the top of the nozzle, neither can it be allowed to drop below the air intake component. The image below shows acceptable margins for water level fluctuation with approximate minimum/maximum operating levels. Low water level will result in a cleaner higher jet of water and high water level will produce a lower and wider spray. A water level within the suggested margin will effect the proper cascade effect.

oase_cascade_t_water_level

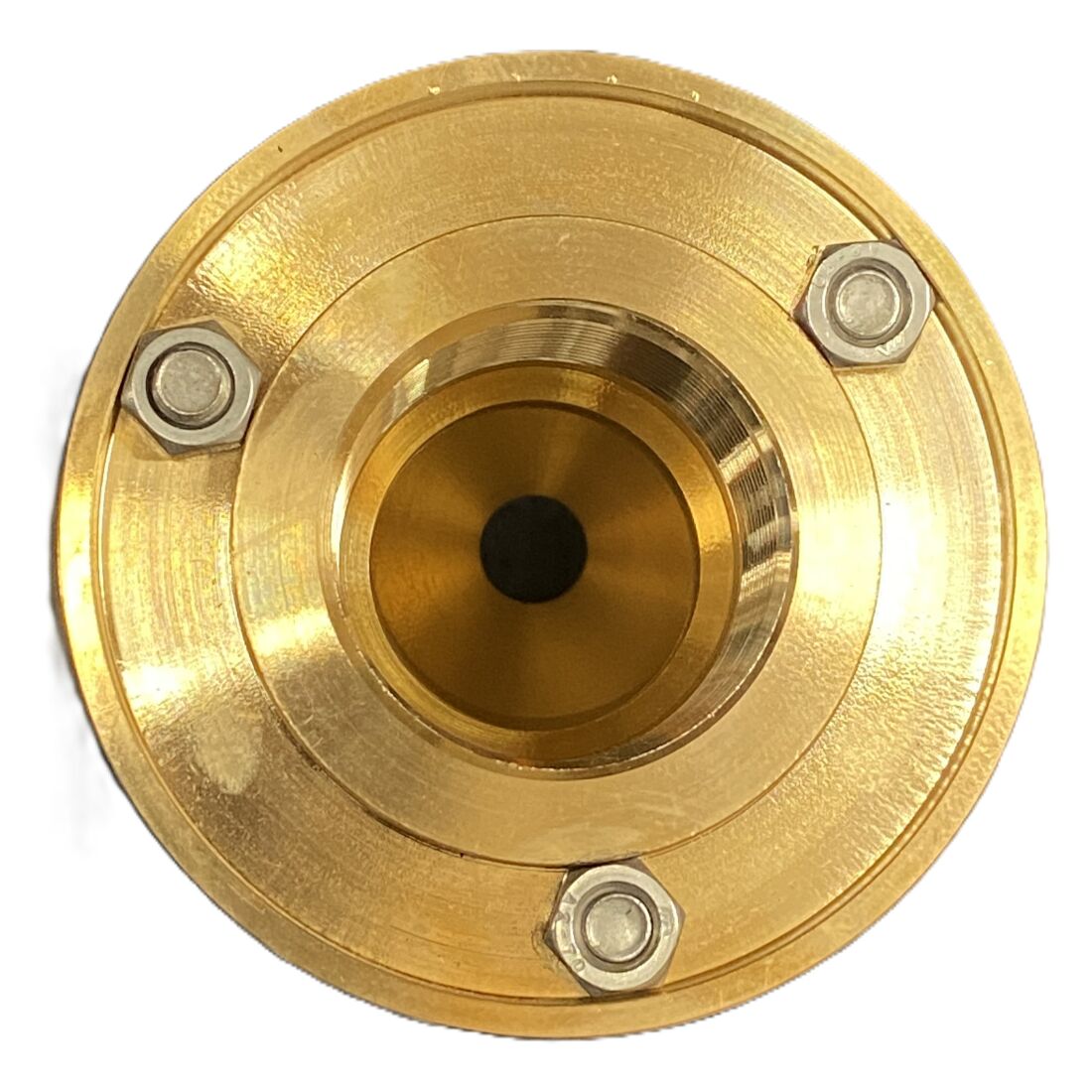

The bases of all Cascade T nozzles feature female threaded inlets for screwing onto fountain pumps or associated pipework. These bases also allow for 360º adjustment, with the head able to be angled up to 5º off vertical. Bolts are used to lock the head in a fixed position once the angle has been set.

Product reviews

  • All reviews
    (1)
  • 5 stars
    (1)
  • 4 stars
    (0)
  • 3 stars
    (0)
  • 2 stars
    (0)
  • 1 star
    (0)
Read More Reviews
  • Damon Manley
    As a company we maintain municipal water features in the Devon area. We have 2 fountains with Oase Cascede T nozzles. 1 has 21 T50's the other has 4 T70's and 1 T90 in the centre. They all perform extremely
    5 stars

Additional Information

Technical Info

Technical Info

OASE Cascade T Nozzles - Technical Details



Cascade 50 T

Cascade 70 T

Cascade 90 T

Cascade 110 T

Cascade 130 T

Thread1” BSP Female1 ½” BSP Female2” BSP Female2 ½” BSP Female3” BSP Female
Jet Orifice54mm Ø74mm Ø97mm Ø117mm Ø137mm Ø
DimensionsH192mm x Ø 62mmH237mm x Ø 98mmH294mm x Ø 125mmH348mm x Ø 150mmH410mm x Ø 176mm
Weight1.6kg2.4kg3.6kg7.0kg11.0kg
Drawing50 T70 T90 T110 T130 T



OASE Cascade T Nozzles - Jet Height Flow and Pressure Figures
cascade_flow_head

Performance Data

Performance Data

We recommend using OASE Aquarius pumps to supply OASE Cascade T fountain nozzles. The pump selected to supply the fountain nozzle ultimately dictates the height of the water jet.

The table below identifies the achievable jet heights from each of the Cascade T nozzles, and also identifies which OASE Aquarius pump would be required to achieve the necessary height.

OASE Aquarius Pump Selection Guide

 Aquarius Universal 12000Aquarius ECO Expert 22000 Aquarius ECO Expert 28000Aquarius ECO Expert 36000Aquarius ECO Expert 44000

50T

1 Metre High Jet2 Metre High Jet

70T

1 Metre High Jet2 Metre High Jet 2.5 Metre High Jet3 Metre High Jet

90T

 1.5 Metre High Jet2 Metre High Jet2.5 Metre High Jet3 Metre High Jet

110T

 1 Metre High Jet 1.5 Metre High Jet2 Metre High Jet

130T

   1 Metre High Jet1.5 Metre High Jet


Higher fountain jets than those stated can be achieved with all of the Cascade T nozzles. Fountain jets at greater height will require the use of OASE Fountain Technology Commercial Fountain Pumps to overcome greater flow rate and pressure requirements.

Please call or email Water Garden Ltd if you have a specific requirement.
