PondoMax Eco Control Pumps | OASE Pontec - Water Garden Ltd
  • PondoMax Eco 5000 - 20000 Controllable Pumps

  • Please select from the following options before buying your PondoMax Eco 5000 - 20000 Controllable Pumps
  • QTY

    £169.99 inc. VAT

    £141.66 exc. VAT

  • Please select a product option above in order to add this item to your basket

    Pay in 3 interest free payments of £56.66

  • Next Generation PondoMax Eco Control pumps from OASE Pontec.  The PondoMax Eco Control pumps are fitted with a digital flow controller which will electronically alter the water flow rate but also reduce the power consumption used, providing significant power savings.

    With 4 models in the range, the PondoMax Eco Control is available with maximum flow rates of 5000L/Hour, 10,000L/Hour, 15,000L/Hour & a range-topping 20,000L/Hour, making these highly versatile pumps for a range of aquatic applications such as waterfalls, streams, cascades and supplying water to pond filter systems.

    The PondoMax Eco Control pumps can be directly submersed or dry mounted (flooded suction scenario) and the outlet connection can be set either horizontally or vertically as preferred.  The large strainer is capable of handling up to 8mm solids, so is well suited as a pond filter pump.

    Find out more

Description

The PondoMax Eco Controllable pump range features:

  • Flow rates from 5000 Litres/Hour to 20000 Litres/Hour.
  • Max Head from 4.5m to 7.5m
  • 8mm Strainer Casing
  • Integrated, In-Line Control Module
  • Energy Efficient Operation
  • 8m Controller Cable (from pump to controller)
  • 2m Power Cable (from controller to wiring point)
  • Integrated Thermal Protection
  • Hosetail Connections for 1", 1 1/4" and 1 1/2" hose (5000, 10000)
  • Hosetail Connections for 1 1/4" and 1 1/2" hose (15000, 20000)
  • 3 Year OASE Pontec Warranty

Please note the weatherproof controller can be opened and the simple spade connections unplugged, in order to pass the controller cable through a suitable conduit.  Please do not cut the controller cable as this will invalidate the warranty and may affect performance of the pump and controller.

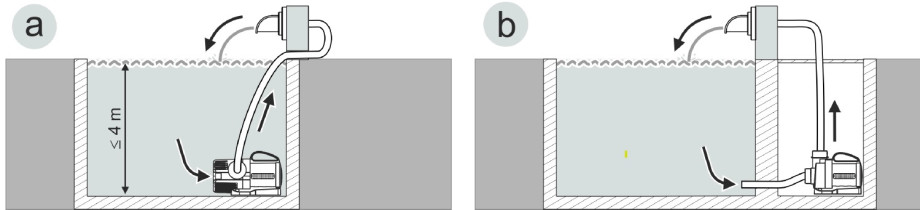

PondoMax Eco Control - Installation Options

Additional Information

Technical Info

Technical Info

PondoMax Eco Control Pumps Technical Details

Item Number95661956639566495665
Product Name
PondoMax Eco 5000
Control
PondoMax Eco 10000
Control
PondoMax Eco 15000
Control
PondoMax Eco 20000
Control
Dimensions (L x B x H) (mm)220 x 100 x 135220 x 100 x 135255 x 130 x 170255 x 130 x 170
Multistage hosetail outlet1",1 1/4",1 1/2"1",1 1/4",1 1/2"1 1/4",1 1/2"1 1/4",1 1/2"
Maximum solids handling8mm8mm8mm8mm
Max Power Consumption (W)5590125190
Voltage/Hz220-240/50220-240/50220-240/50220-240/50
Litres per hour max. (l/h)5000100001500020000
Max Head Height (m)45.56.57.5
Cable length (m)10101010
Warranty (years)3



Performance Data

Performance Data

PondoMax Eco Control Performance Data

PondoMax Eco Control Performance Data

PondoMax Eco 5000 - 20000 Controllable Pumps

  • £169.99 inc. VAT

    £141.66 exc. VAT
