Pump Performance Curves

--- WE ARE RUNNING SERVICE AS USUAL ONLINE. PLEASE ALLOW 1-2 WORKING DAYS DELIVERY FOR STOCK ITEMS ---

OASE AquaMax ECO Classic

The Aquamax Eco Classic are a mid-range, energy-efficient solids-handling pumps from OASE Germany, designed for use with filters, small watercourses and cascades.

  • Energy Efficient with Dry Run Protection.
  • Flow Rates from 2600 - 17,400 Litres / Hour.
  • Maximum Vertical Lift from 2.2 - 3.7 metres.
  • 5 Year Warranty.

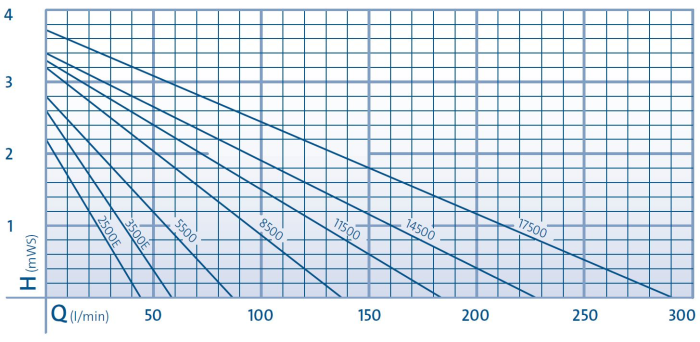

Curves - AquaMax Classic Curve

OASE AquaMax Eco Classic C

The Classic C is a flow controllable version of the AquaMax Eco Classic Pumps.  These models offer digital flow regulation via a small cable linked controller but can also be controlled by an OASE App via Blutooth to your smart phone.  Ideal for passing water to cascades and pond filtration systems.

  • Digital water flow regulation via OASE App or control box.
  • Highly energy efficient motors
  • Flow Rates from 8,800 - 17,600 Litres / Hour.
  • Maximum Vertical Lift from 4.5 - 5.3 metres.
  • 5 Year Guarantee.

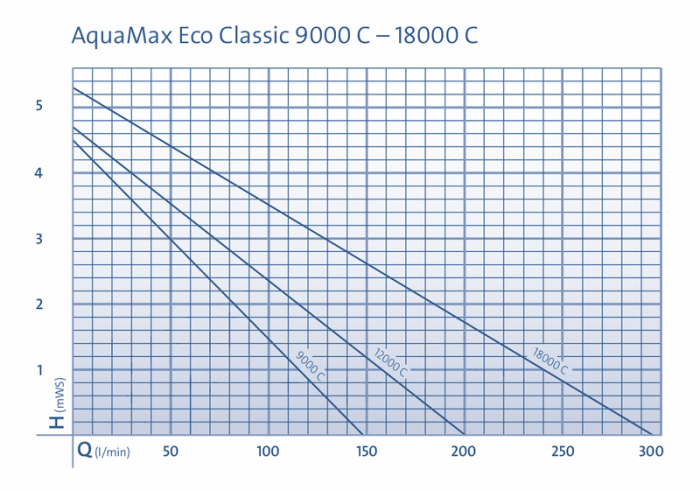

Curves - AquaMax Classic Controllable Curve

OASE AquaMax Eco Premium

The AquaMax Eco Premium pumps offer top-of-the-range performance for powering medium sized watercourses and pond filtration systems.  Cutting-edge technology for ultra efficient operation.  Easy to clean and service with German engineering for outstanding reliability.

  • Market-leading pond pump, designed by German engineers.
  • Offers a second point of suction for an optional surface skimmer of strainer.
  • Can be dry-mounted (flooded suction) or fully submersed.
  • Flow rates from 4,000 - 19,500 Litres / Hour.
  • Maximum Vertical Lift from 3.2 - 5.4 metres.

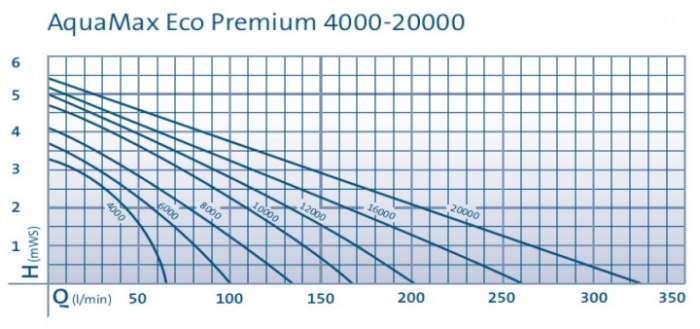

Curves - AquaMax Eco Premium Curve

OASE AquaMax Eco Twin

The AquaMax Eco Twin pumps feature a double pump and digital controller for altering the water flow rate.  Eco motors offer cost-saving performance and are well suited to low lift applications to wider watercourses and larger low-level pond filters.

  • Powerful, low head pumps for impressive streams and demanding pond filters.
  • Energy efficient twin-mounted pumps with digital flow control.
  • Flow Rates from 20,000 - 27,000 Litres / Hour.
  • Maximum Vertical Lift from 4.5 - 5.2 metres.
  • 5 Year Guarantee.

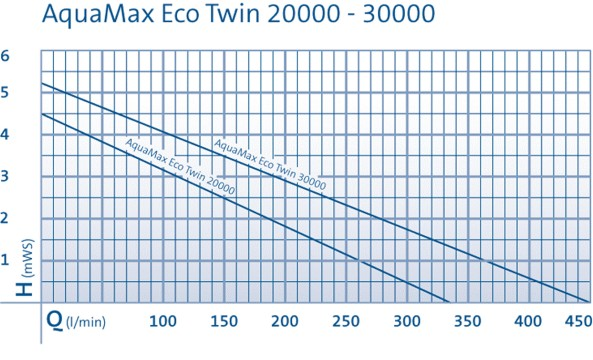

Curves - AquaMax Eco Twin Curve

OASE AquaMax Dry

The AquaMax Dry pumps are an excellent solution for supplying gravity-fed pond filters when the pump is needing to be externally mounted in flooded suction scenario.  The pump body features a stable mounting plate for securing down to a suitable base.

  • Stable Mounting Base Plate.
  • Can be submersed or dry mounted (below water level).
  • Flow Rates from 6,000 - 13,500 Litres / Hour.
  • Maximum Vertical Lift from 2.2 - 5.0 metres.
  • 5 Year Guarantee.

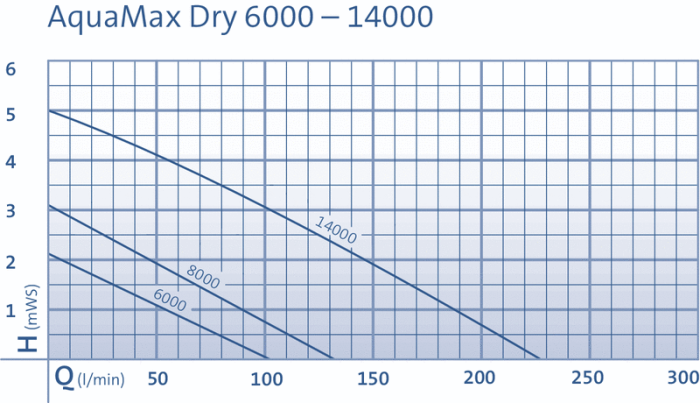

Curves - AquaMax Dry Curve

OASE AquaMax Eco Gravity

The AquaMax Eco Gravity pumps offer outstanding energy efficiency in low/zero head applications such as gravity fed filtration systems and for direct connection to surface skimmers.  Powerful, low pressure pumps for direct submersion or dry mounting (flooded suction).

  • Low pressure, high flow pumps for gravity filters and skimmers.
  • Outstanding energy efficiency for extremely low running costs.
  • Flow Rates from 10,000 - 20,000 Litres / Hour.
  • Maximum Vertical Lift from 1.3 to 2.2 metres.
  • 5 Year Guarantee.

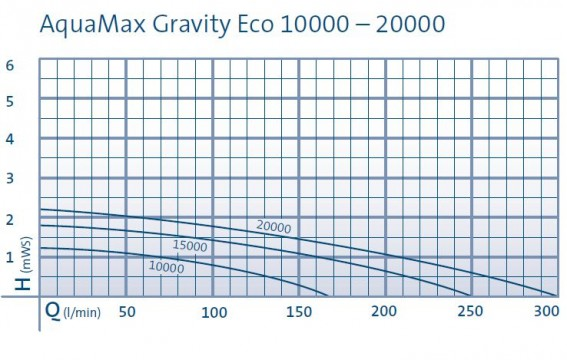

Curves - AquaMax Gravity Curve

OASE AquaMax Eco Expert

The AquaMax Eco Expert range of semi-commercial pumps provide considerable water flow and greater vertical heights, making these well suited to larger waterfalls, powerful streams and large filtration systems.  The pumps can also be connected to various OASE controllers for remote flow adjustment and App control.

  • Powerful, energy efficient pumps for demanding applications.
  • Can be connected to the AquaMax Eco Control and Cloud EGC controllers
  • Flow Rates from 19,300 - 44,000 Litres/Hour.
  • Maximum Vertical Lifts from 4.6 - 9.5 metres.
  • 5 Year Guarantees.

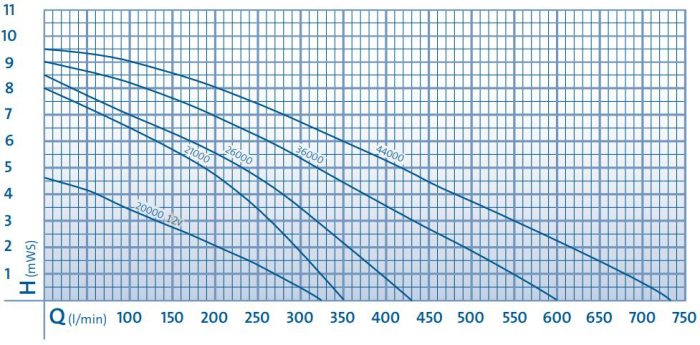

Curves - AquaMax Eco Expert Curve

OASE AquaMax Eco Titanium

The pinnacle of German-engineered pond filter pumps, the AquaMax Eco Titanium offers exceptional performance in low head applications and is particularly well suited to mounting within the OASE ProfiClear Drum Filtration Systems.  Significant flow rates at low running costs, matched with superb engineering materials in their construction.

  • Superior quality pump, well suited to gravity fed Drum Filter technology.
  • Low head, high flow pumps can be mounted dry or submersed.
  • Flow rates from 31,000 - 51,000 Litres/Hour.
  • Maximum Vertical Lift from 3.3 - 4.0 metres.
  • 5 Year Guarantee.

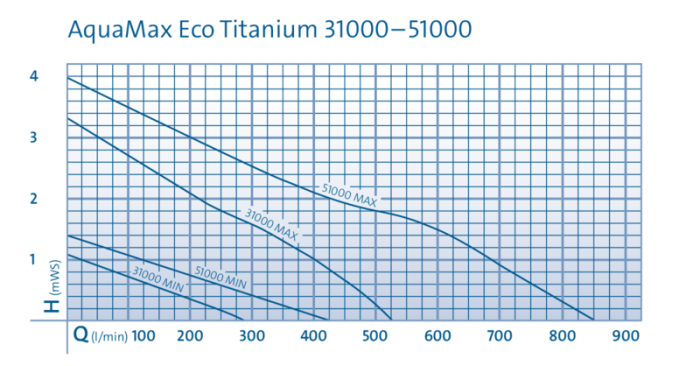

Curves - AquaMax Eco Titanium Curve

Aquarius Universal 440-2000

The compact, versatile Aquarius Universal 440-2000 pumps are well suited to small garden water features.  Usually connected to a small diameter flexible hose, these versatile units will provide gentle water flow and trickling, tranquil water sound.  All models are fitted with a flow regulator.

  • Ideal for small garden water features or bubbling fountains in small clean ponds and rills.
  • In-built regulator for easily adjusting the pumped water amount.
  • Flow rates from 440 - 2,000 Litres/Hour.
  • Maximum vertical lift from 0.75 - 2 metres.
  • Guarantee:  2 Years (440 model) / 5 Years (600-2000 models).

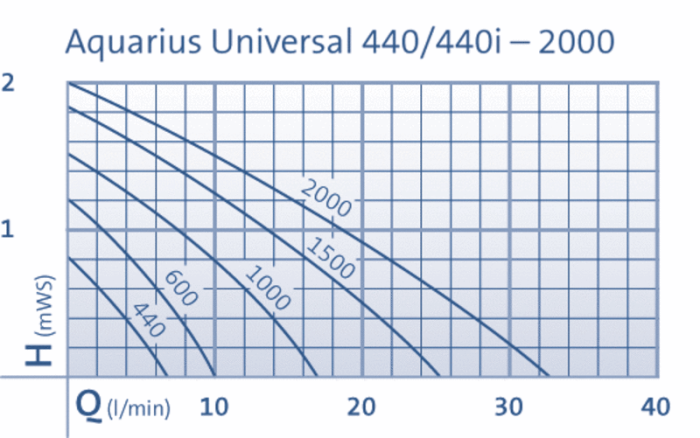

Curves - Aquarius Universal Curve 440 - 2000

OASE Aquarius Universal 3000 - 12000

The Aquarius Universal 3000 - 12000 water feature pumps provide capable performance on medium-sized water features such as decorative tiered cascades, formal water rills and cascading water blades, usually via flexible hoses.  Compact yet powerful and all models are supplied with integrated flow regulator.

  • Powerful, mid-range pumps for more dramatic water features.
  • Compact and robust with in-built flow controller.
  • Flow rates from 3,000 - 12,000 Litres / Hour.
  • Maximum vertical lift from 3.2 - 7.0 metres.
  • 5 Year Guarantees.

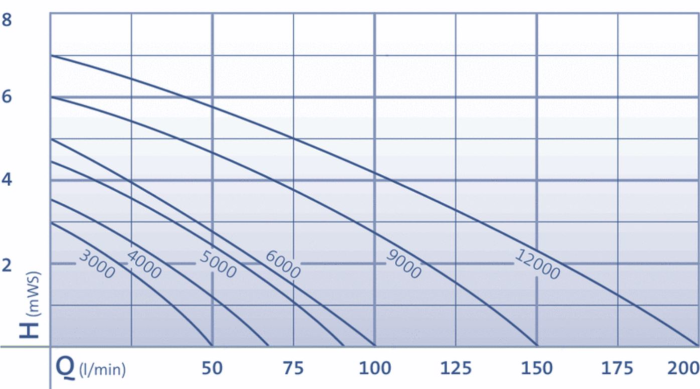

Curves - Aquarius Universal Curve 3000 - 12000

Aquarius Fountain Set 750-3500

The OASE Aquarius Fountain Set Classic pumps are ideal for providing a decorating spray fountain display in smaller ponds or in pondless water features.  The range is supplied with 3 fountain nozzles, telescopic riser pipe and 2 way valve, enabling a fountain display and the ability to send some of the water to a small cascade or separate water feature.

  • Compact design for smaller ponds and features
  • Flow Rates from 750 – 3500 Litres / Hour
  • Maximum Vertical Lift from 1.1 – 2.7m
  • Supplied with 3 decorating water nozzle effects
  • 3 Year guarantee.

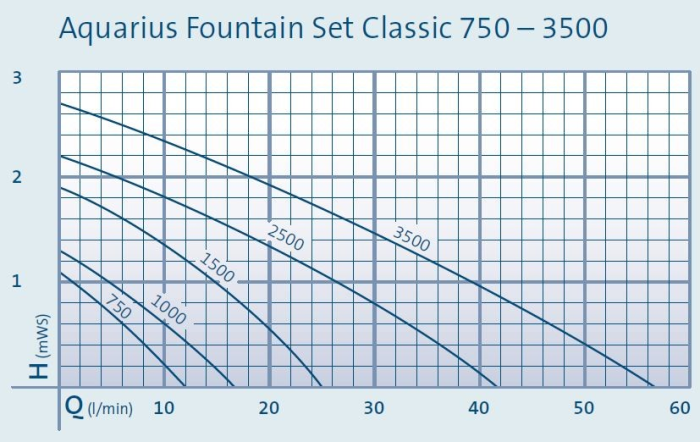

Curves - Aquarius Fountain Set 750 - 3500

Aquarius Fountain Set Eco

The Aquarius Fountain Set Eco pumps are designed to provide more impressive fountain displays in medium sized ponds.  The Eco motors are energy efficient and each set includes two decorative fountain nozzles, telescopic riser pipe and 2 way valve.  The Aquarius Fountain Set Eco range are also well suited to our full range of 1” BSP fountain nozzles to provide a wide range of inspiring displays.

  • Energy efficient, German engineered fountain pump
  • Flow Rates from 5500 – 9500 Litres / Hour
  • Maximum Vertical Lift from 3.8 – 5.2m
  • Supplied with 2 decorative water nozzles
  • 5 Year Guarantee

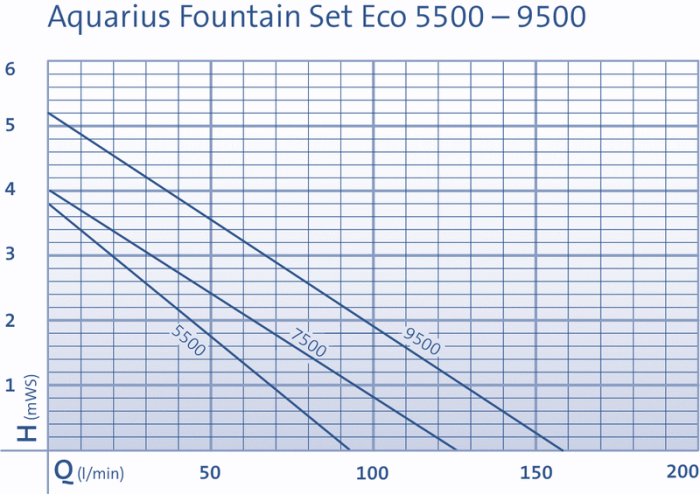

Curves - Aquarius Fountain Set 5500 - 9500

PondoMax Eco

The PondoMax Eco pumps from Oase Pontec are the perfect balance of cost versus performance, offering low running wattages and budget-friendly value.  The side outlet make these an excellent choice for coupling to our cascading water blades up to 900mm width or for powering waterfalls and streams.

  • 4-8mm solids handling capability.
  • Eco motors for cost effective operation.
  • Dry run protection.
  • Flow rates from 1,500 – 17,000 Litres / Hour.
  • Maximum vertical lift from 1.9m to 3.5 metres.

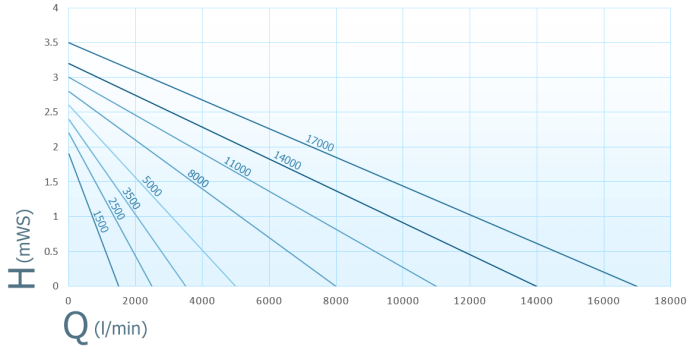

Curves - PondoMax
