  • 2 inch BSP M/F Extended Tank Connector

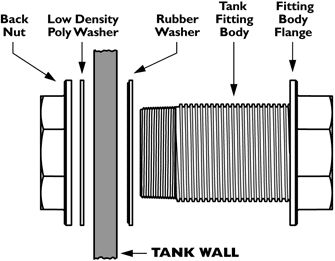

  • Glass Fibre Reinforced Nylon Tank Connector. Male threaded mid-section to end, fixed top flange with female threaded end, 1 x rubber washer, 1 x low density poly washer and adjustable back nut. Ideal for watertight pipe passage through wall or tank side. 16 Bar maximum pressure rating.

    • 2” BSP Male pipe thread.  2” BSP Female top thread
    • Suggested drilling diameter:  Ø 60mm - 85mm
    • Outer Flange Diameter:  Ø105mm
    • Maximum wall thickness for clamping:  55mm
    • Recommended hose pipe fitting for male end  2” BSPF Union/Hosetail
    • Recommended hose pipe fitting for female end  2” BSPM Hosetail
    • For use with pipe/hose, size 2” (50mm internal diameter)
    More information
  • Quantity:

    £28.20 inc. VAT

    £23.50 exc. VAT
