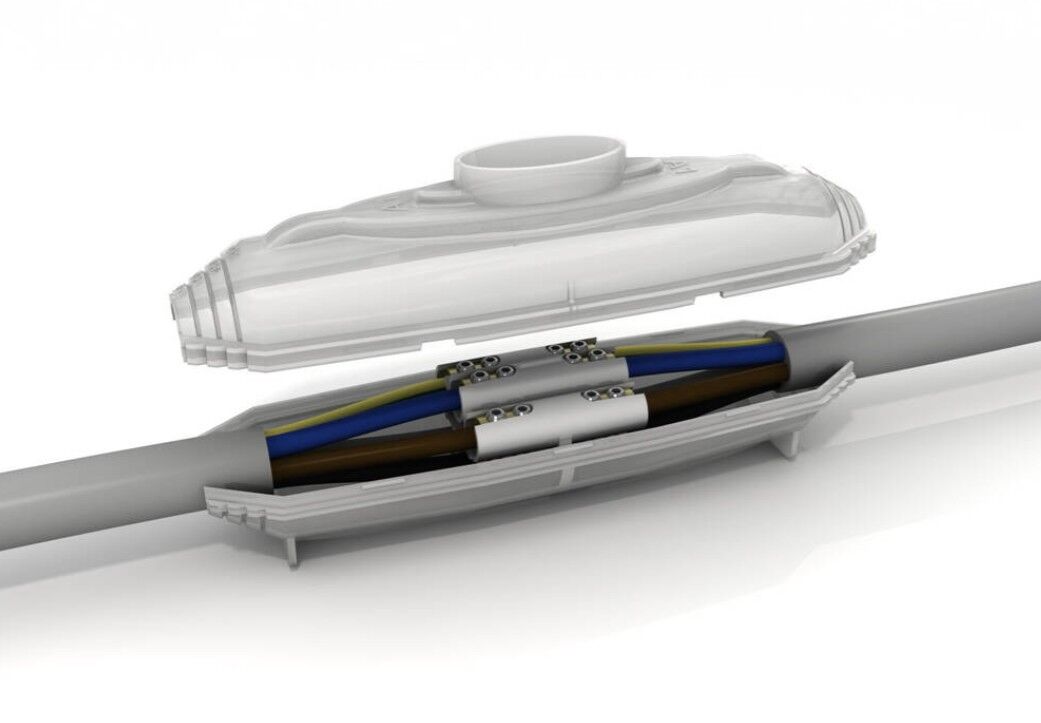

Submarine IP68 Resin Filled Cable Joiner

The Submarine IP68 Cable Joiner allows joining of 0.6 - 1 kV single and multicore cables with up to four cores. The kit includes 2 transparent half-shells and a 2 component resin.  The direct Injection casting system allows pre-mixed resin to be injected inside the joint to create a completely water-tight, modular phase separator.  The Submarine connector comes with 2 sets of 4 insulated crimp connectors an earthing braid and constant force roll springs.

The Submarine IP68 connector is perfect for underground and underwater installations and provides excellent electrical insulation and mechanical strength.

• Resin Filling
• Voltage Rating : 0,6 kV - 1 kV
• Minimum Cable Ø : 8mm
• Maximum Cable Ø : 26mm
• 1,5 - 6 mm² Terminals/Poles
• 3 Year Shelf Life
