OASE Bitron C Technical Details:
Bitron UV Clarifier | |||||
Dimensions L x W x H - mm | 440 x 180 x 198 | 600 x 180 x 198 | 600 x 180 x 198 | 730 x 215 x 200 | 730 x 215 x 200 |
Voltage | 220 - 240V / 50/60Hz | 220 - 240V / 50/60Hz | 220 - 240V / 50/60Hz | 220 - 240V / 50/60Hz | 220 - 240V / 50/60Hz |
Power consumption - watts | 24W | 36W | 55W | 72W | 110W |
Power cable length - metres | 5m | 5m | 5m | 5m | 5m |
Net weight - kilograms | 3.9kg | 4.48kg | 4.52kg | 6.44kg | 6.5kg |
Max pressure - bar | 0.5 bar | 0.5 bar | 0.5 bar | 1 bar | 1 bar |
Max head - metres | 5m | 5m | 5m | 10m | 10m |
Pump capacity maximum – L/hr | 15000L | 30000L | 30000L | 40000L | 40000L |
Pump capacity maximum – L/min | 250L | 500L | 500L | 667L | 667L |
Pump capacity minimum – L/hr | 4000L | 8000L | 8000L | 12000L | 12000L |
Pump capacity minimum – L/min | 67L | 133L | 133L | 200L | 200L |
Suitable for ornamental ponds up to | 25000L | 40000L | 60000L | 75000L | 110000L |
Suitable for fish ponds up to | 12500L | 20000L | 30000L | 37500L | 55000L |
Suitable for Koi ponds up to | 6500L | 10000L | 15000L | 19000L | 27500L |
Guarantee (excluding bulbs) | 2 years | 2 years | 2 years | 2 years | 2 years |
![]() | ![]() | ![]() |

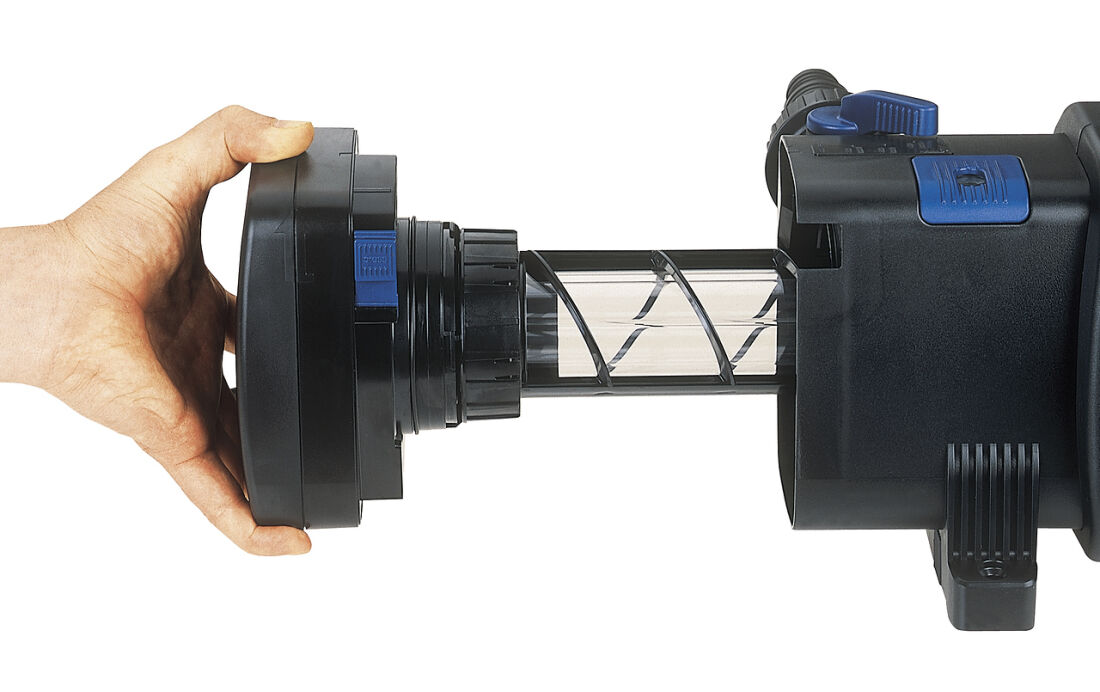

| The Bitron UV Bulb and self cleaning mechanism can be easily accessed and inspected, via the quick release button | Flow rate across the UV light can be easily adjusted to achieve optimum algae "kill" rate. | The Bitron features a self cleaning mechanism which spins in the flow of water, keeping the quartz sleeve free of debris. |
