AquaOxy 500 Pond Aerator Pump

  • £71.40 inc. VAT

    £59.50 exc. VAT

  • AquaOxy 500 Pond Aerator Pump
  • AquaOxy 500 Pond Aerator Pump
  • AquaOxy 500 Pond Aerator Pump
  • AquaOxy 500 Pond Aerator Pump

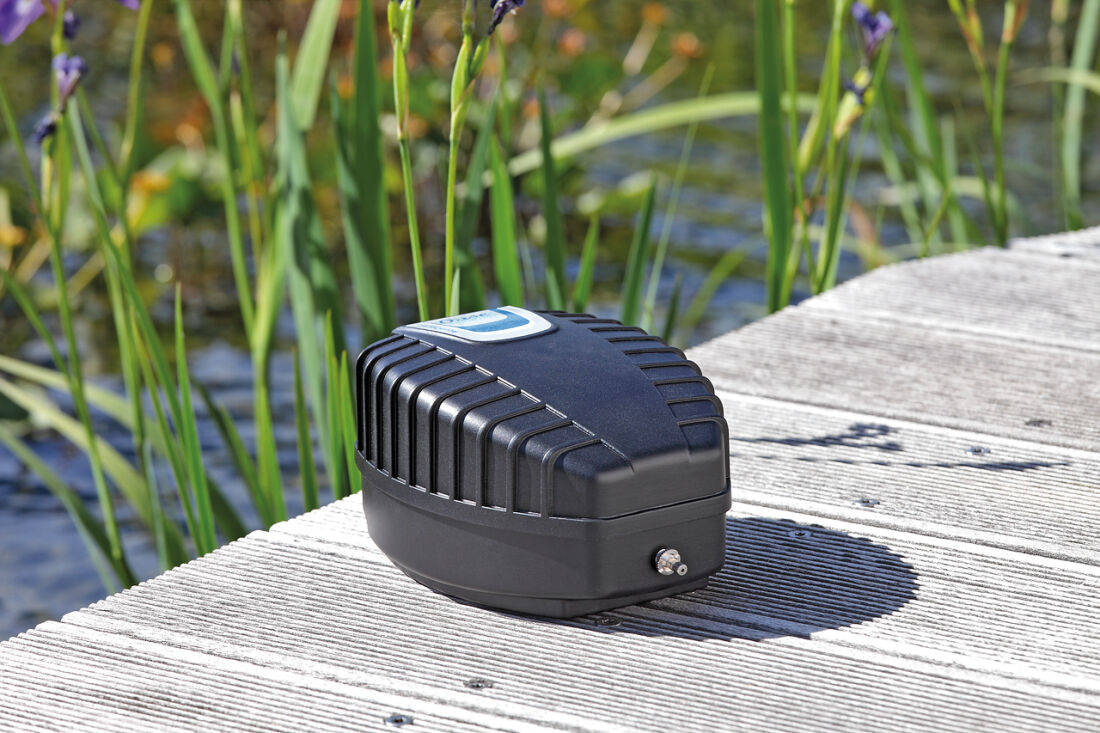

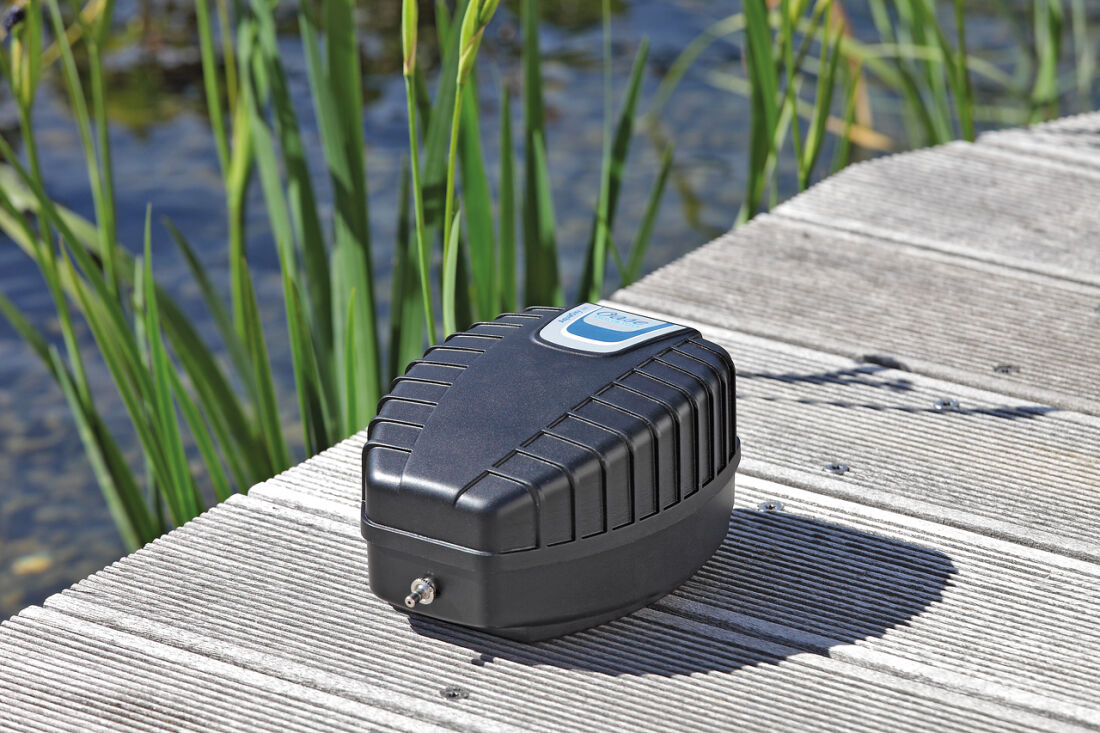

  • The OASE AquaOxy 500 air pump is a brand new addition to the OASE Pond Aerator range.  The compact dry-mounted air pump is supplied with submersible air stones to diffuse vital oxygen into pond water up to 5000 Litres (approx. 1,100 Gallons).

    • Pond Aerator suitable for ponds of up to 5000 litres
    • Max. air displacement of 500 l/hr via valved regulated outputs

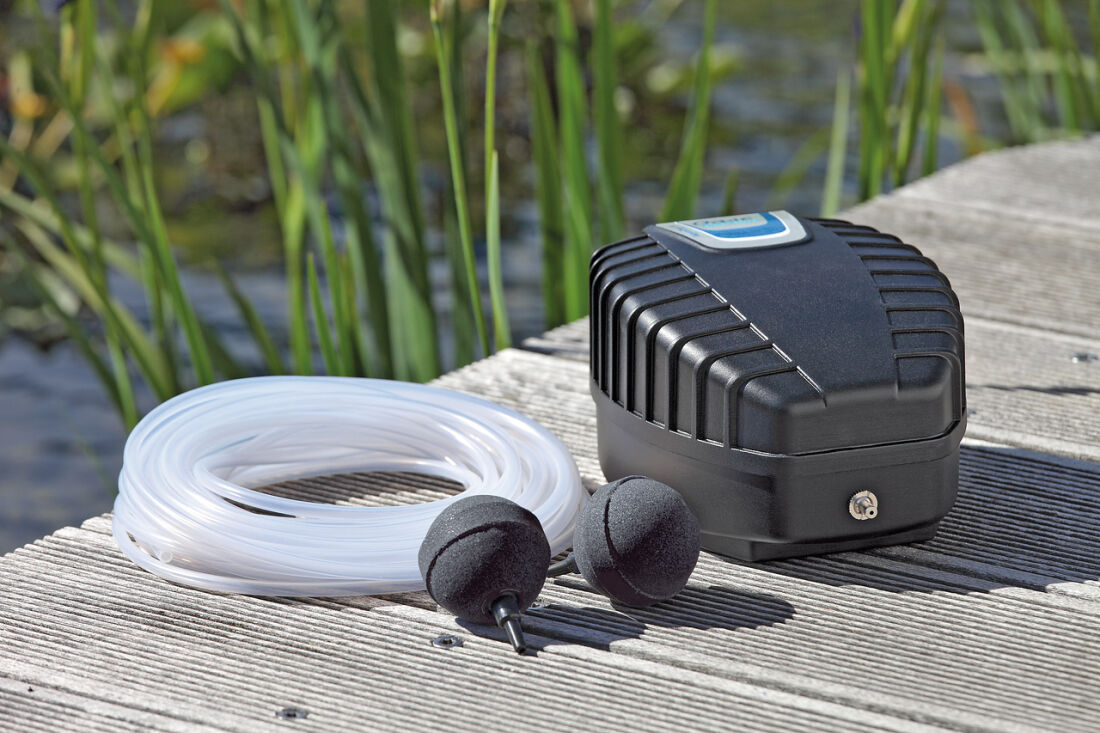

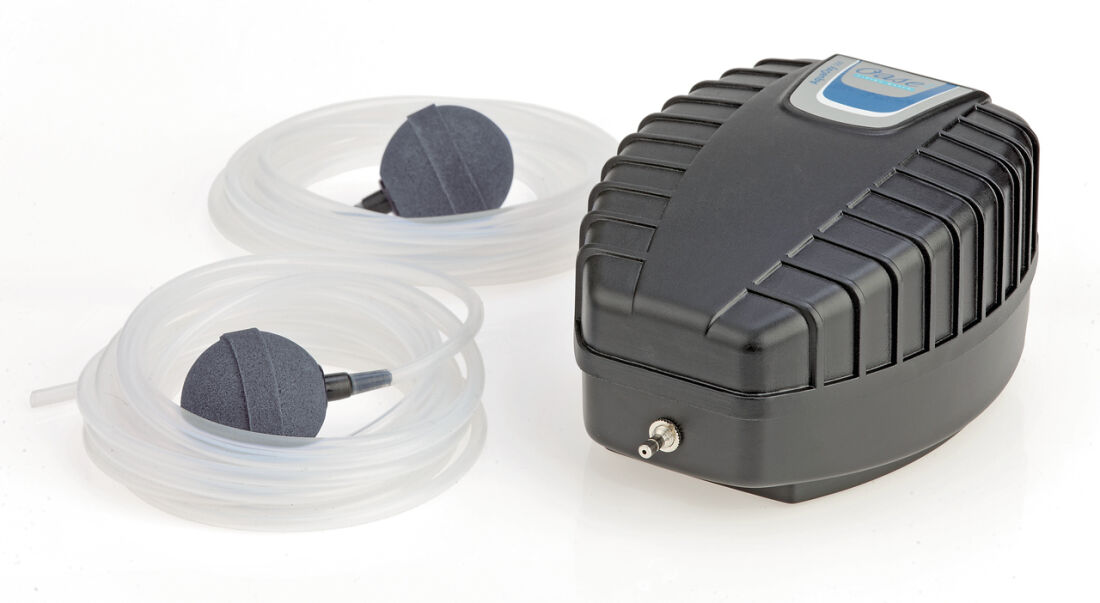

    • Supplied with 2 air stones each including 5 metres of air hose
    • Robust, quiet fully weatherproof enclosure c/w 3 metres of cable
    • Simple and convenient in operation
    • Non return valves enable operation below the water surface
    • Guaranteed for 2 years
    Find out more
  • QTY

    £71.40 inc. VAT

    £59.50 exc. VAT

Description

Oxygen plays a crucial role in biological regeneration by breaking down nutrients in water. Many of the problems associated with artificial ponds and lakes, such as algae infestation, silt or odour nuisance can be attributed to oxygen deficiency.

The OASE AquaOxy range of weatherproof, mains-powered pond aerators supply garden ponds of up to 20,000 litres with vital oxygen for optimum water quality, healthier fish and plants.

Tip: Plants produce oxygen during the day but absorb it after sunset; therefore the survival of all breathing organisms and especially fish is particularly endangered during this time, and especially just before dawn when the oxygen supply may be exhausted.

Additional Information

Technical Info

Technical Info

OASE AquaOxy pond aerators: Technical Details

AquaOxy 400 50010002000
Dimensions in mm (L x W x H)
228 x 224 x 112
185 x 140 x 110220 x 225 x 135
Output Voltage
12 V / 50 Hz AC
230V / 50 Hz AC
12 V / 50 Hz AC
Input voltage
230 V / 50 Hz AC
Power Consumption10 Watts8 Watts15 Watts25 Watts
Output Pressure in bar/metres0.17 bar / 1.7m0.2 bar / 2m0.2 bar / 2m0.25 bar / 2.5m
Air Displacement Quantity (litres/hour)40050010002000
Max Pond volume (subject to immersion depth, see chart below) litres
500050001000020000
Regulator
Infinitely variable
N/A
Infinitely variable
Infinitely variable
Number of Outlets
2
Air Hose
2 x 5m
Air Stones
2
Cable Length
5m
3m5m5m
Guarantee
2 years



The air flow (litres per hour) depends on the immersion depth (metres) of the air stones

The values in the table below were measured with a total air hose length of 2 x 5 metres

Depth in metresAqua Oxy 400 Aqua Oxy 500Aqua Oxy 1000 AquaOxy 2000
0.0 m420 l/h500 l/h1000 l/h2000 l/hr
0.2 m400 l/h475 l/h900 l/h1825 l/hr
0.4 m360 l/h430 l/h800 l/h1650 l/hr
0.6 m340 l/h400 l/h720 l/h1475 l/hr
0.8 m280 l/h350 l/h650 l/h1300 l/hr
1.0 m100 l/h300 l/h600 l/h1125 l/hr
1.2 m-250 l/h550 l/h950 l/hr
1.4 m-200 l/h500 l/h775 l/hr
1.6 m- 450 l/h600 l/hr
1.8 m- -425 l/hr
