Compact 800 Water Feature Pump

Price: £55.80 inc. VAT

Price: £46.50 exc. VAT

Buy now

Need advice on this product?

Speak to one of our experts today 02392 373735

Need advice on this product?

Speak to one of our experts today 02392 373735

Additional Information

Technical Info
Performance Data

Technical Info

Compact Water Feature Pump	Compact 300	Compact 600	Compact 800	Compact 1200	Compact 2000	Compact 3000	Compact 5000
Dimensions L x W x H - mm	45 x 40 x 45	62 x 45 x 78	75 x 55 x 90	75 x 55 x 90	170 x 75 x 120	170 x 75 x 120	170 x 75 x 120
Power Consumption - watts	5	11	20	25	32	55	82
Max Head – metres	0.7	1.25	1.5	2.0	2.2	3.0	3.1
Max. Flow - Litres/Hour	300	600	800	1,200	2,000	3,000	5,000
Max. Flow - Litres/Minute	5	10	13	20	33	50	83
In-built Flow Adjuster - Litres/Hour	150 - 300	300 - 600	400 - 800	600 - 1,200	300 - 2,000	400 - 3,000	1,000 - 5,000
Voltage	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz
Power cable length - metres	10
Guarantee - years	2
*** Dry Mountable?	NO	NO	NO	NO	YES	YES	YES
Threaded Inlet Connection	N/A	N/A	N/A	N/A	3/4" BSPM	3/4" BSPM	1" BSPM
Threaded Outlet Connection	N/A	N/A	N/A	N/A	3/4" BSPF	3/4" BSPF	3/4" BSPF
Includes hose connector	1/2"	1/2"	1/2" , 3/4"	1/2" , 3/4"	3/4" , 1"	3/4" , 1"	3/4" , 1"
Part no.	57506	57507	46784	57508	57509	57510	57511

*** Dry mountable in a flooded suction scenario only (pump inlet must be flooded with water via gravity).

Tip: As with all pumps, try to use the largest hose size the pump will accept, to maximise the output flow.

Tip: Max. Head refers to how high a pump can lift water. Note that at it's maximum lift, it will deliver zero flow.

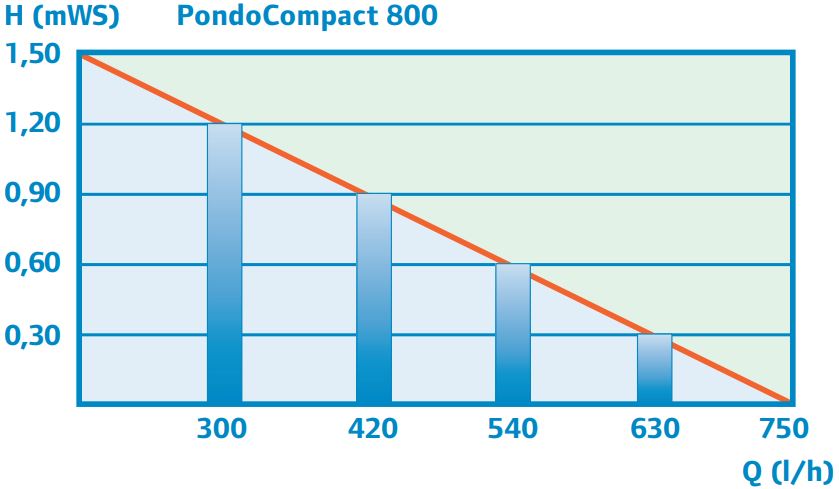

Performance Data

Compact 800 Pump.

performance_curve_800
