DeepWater Aeration Systems

DeepWater Aeration Systems are designed for aerating water bodies with a depth of between 2 - 10 metres (6ft - 32ft).  These high pressure sub-surface aerator kits include a vented weatherproof air compressor cabinet, high efficiency air diffusers and 30m rolls of 8mm bore weighted airlines.

The DeepWater Aeration Systems are suitable for ponds and lakes ranging from 2000m2 (1/2 Acre) to 16,000m2 (4 Acres) surface area, depending on water depth.  As with all sub-surface systems, deeper water will increase the distribution, mixing and oxygen transfer efficiency.  DeepWater systems are specifically designed to operate at higher pressures to ensure excellent air flow distribution, even in deeper water environments.

DeepWater Aeration Systems Include:

• System 2:  1 Compressor / 2 Diffusers / 2 x 30m Weighted Airline
• System 3:  1 Compressor / 3 Diffusers / 3 x 30m Weighted Airline
• System 4:  1 Compressor / 4 Diffusers / 4 x 30m Weighted Airline

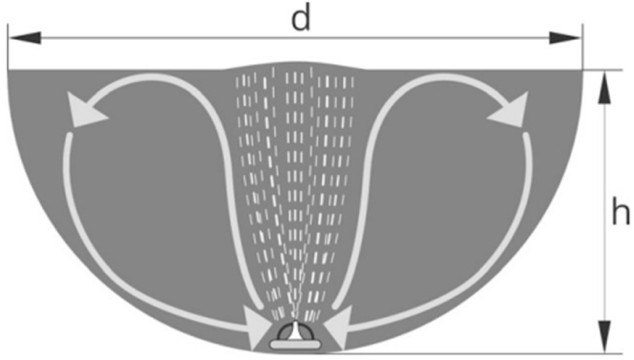

System Surface Area Coverage (depending on depth - see chart below)

• System 2:  2,000m² - 8,000m²
• System 3:  3,000m² - 12,000m²
• System 4:  4,000m² - 16,000m²
