FM Master EGC Cloud | OASE Controls - Water Garden UK
  • InScenio FM Master EGC Cloud

  • The OASE InScenio FM Master EGC Cloud (‘Easy Garden Control’) is a WiFi enabled outdoor remote control system, allowing control of various garden and pond electrical devices, all via smart phone or tablet (iOS 7.x or higher and Android 4.0.3 or higher).  The EGC Cloud uses the free OASE App and can now be controlled away from the home using the OASE Cloud technology.  The EGC can also warn the user of equipment errors via email or text, giving real-time feedback.

    The FM Master EGC Cloud features 4 power outlets, one of which is variable, allowing the user to adjust asynchronous pump flow (up to 320 watts) via the smart device (i.e. adjust the fountain display height, control the flow entering a pond filter or adjust the flow down a waterfall or stream).  Outdoor lighting and other electrical devices can be connected to the 3 on/off power outlets.

    The Easy Garden Control also features a special DMX-RDM port, allowing 2 way control and feedback of the AquaMax Expert Eco 21000, Aquamax Expert Eco 26000, Aquarius Expert Eco 22000, Aquarius Expert Eco 28000 and AquaMax Eco Titanium 50000 pumps (an EGC Connection Cable is also required).  All connected devices can also be controlled over 24 hours via the integrated timer, built in to the user-friendly OASE App.

    The FM Master EGC Cloud also enables complete colour and setting control of the OASE ProfiLux Garden LED RGB Lights and 24V Underwater Transformer, again using an EGC Connection Cable for information transfer.

    The FM Master EGC Cloud controller is fully weatherproof and the integrated WiFi router Hotspot (2.4 GHz) has a range of up to 80 metres.  The supplied ground spike ensures secure anchoring into soft ground.  The optional OASE FM Master Rock Cover can be used to disguise the controller if desired.

    Find out more
  • QTY

    £529.99 inc. VAT


    £441.66 exc. VAT

  • Pay in 3 interest free payments of £176.66


WLAN EGC in action

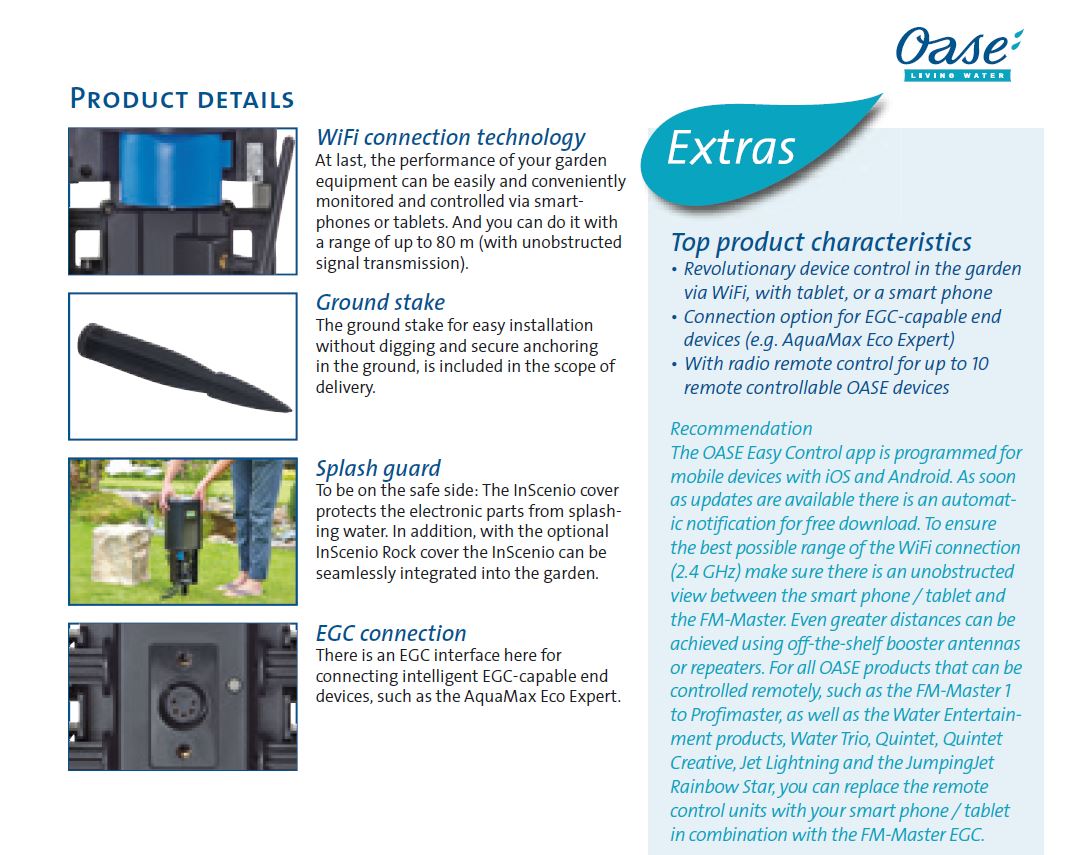

FM Master EGC Cloud

Product video

Additional Information

Technical Info

Technical Info

InScenio FM Master EGC Cloud (Easy Garden Control)

Dimensions FM Master EGC CloudLength 215mm x Width 155mm x Height 295mm
Rated Voltage FM Master EGC Cloud220-240V / 50Hz
Maximum Total Power Load FM Master EGC Cloud3600 watts
Maximum Total Load Current FM Master EGC Cloud16 amps
Net Weight FM Master EGC Cloud2 kg
Guarantee FM Master EGC Cloud2 + 1 years (2 years with 1 year free extension)
Radio Range (433 MHz) Maximum80 metres
Access Point Range (2.4GHz) Maximum80 metres
Connection ECGYes - 1 x DMX/RDM Outlet
Network SuitabilityRouter / Cloud
Wi Fi HotspotYes
Number of On/Off Power Outlets3 x 220-240 V
Timer OptionYes - Every Power Outlet
Maximum Load per On/Off Outlet2000 watts
Number of Variable Speed Outlets1 x 220-240 V
Maximum Load Variable Speed Outlet320 watts


Related tech articles and downloads

Performance Data

Performance Data

OASE Aquarius ECO Expert - Dynamic Function Control Show Scenes 1 - 12.

Show scenes 2 -12 are enabled only when the Aquarius ECO Expert pump is controlled remotely with the use of a compatible Easy Garden Control device such as the FM Master WLAN EGC, the ECO Expert Pump Control or the InScenio EGC Control Cloud.
