Trumpet Jet Nozzle for Pro-Jet
  • Trumpet Jet Nozzle for Pro-Jet

    • Voluminous two tier, multiple jet nozzle, suitable for use with the Pro-Jet Floating Fountain Pumps.
    • The Trumpet Jet Nozzle simply screws into the 3” BSPF threaded connection on the Pro-Jet Pump Body, to provide a significant ornamental fountain jet display.


    Performance figures with optional Pro-Jet Fountains at a glance:
    Pro-Jet 1.1KW (230V) Version; Jet Height Max: 5.0m / Jet Diameter Max: Ø4.5m
    Pro-Jet 4.0KW (400V – 3 Phase) Version; Jet Height Max: 9.5m / Jet Diameter Max: Ø8.0m

    Find out more
  • QTY

    £798.00 inc. VAT

    £665.00 exc. VAT

  • Pay in 3 interest free payments of £266.00

Additional Information

Technical Info

Technical Info

Pro-jet Floating Fountains - Technical Details.

Selecting and installing a powerful, versatile floating fountain in a pond or lake has never been easier:

A. Select from the 2 power choices of floating pump (1.1KW Single Phase or 4.0KW Three Phase).

B. Select the Fountain Nozzle to achieve the desired water pattern (additional nozzles can be added at a later date).

C. Select Illumination of the fountain display (if required).  Choose from High performance LED Lighting or Halogen lighting.

Pro-Jet Floating Fountain Pump for pond and lake

Pro-Jet Floating fountain pump viewed from above
Pro-Jet floating fountain with fountain nozzle fitted
Pro-Jet Floating Fountain: Technical Data

Dimensions in mm (H x Ø):
1030 x 1000
1030 x 1460
Nominal Voltage
230V AC / 50Hz
400V AC / 50Hz
Pump Power (in kW)
1.1
4.0
Nominal Current (in Amperes)
7.3
9.6
Electrical Cable Length (in Metres)
50
50
Max. Turnover rate per hour (in Litres)
22000
39000
Minimum Operating Water Depth (in metres)
1.0
1.25
Guarantee Period:
2 Years
2 Years
Approximate Weight (in Kg)
43
60
Part No.
50365
50371


Grand High Jet Nozzle

Grand High Jet Fountain Nozzle

Grand High Jet Fountain Nozzle illuminated
Grand High Jet Nozzle 3"- Technical details
Pro-Jet Pump PowerFountain Height max (m)Fountain Height - 1st Step (m)Fountain Diameter (m)
1.1KW / 230V
9.0
-
-
4.0KW / 400V
16.5
-
-
Nozzle Part No.
50375





Geyser Jet Nozzle
Geyser Jet Fountain Nozzle
Geyser Jet Fountain Nozzle illuminated
Geyser Jet Nozzle 3"- Technical details
Pro-Jet Pump PowerFountain Height max (m)Fountain Height - 1st Step (m)Fountain Diameter (m)
1.1KW / 230V
5.0
-
-
4.0KW / 400V
12.0
-
-
Nozzle Part No.
50377





Grand Vulkan Nozzle
Grand Vulkan Fountain Nozzle
Grand Vulkan Fountain Nozzle - illuminated
Grand Vulkan Nozzle 3"- Technical details
Pro-Jet Pump PowerFountain Height max (m)Fountain Height - 1st Step (m)Fountain Diameter (m)
1.1KW / 230V
3.0
-
Ø2.5
4.0KW / 400V
7.0
-
Ø4.0
Nozzle Part No.
50376





Trumpet Jet Nozzle
Trumpet Jet Fountain Nozzle
Trumpet Jet Fountain Nozzle illuminated

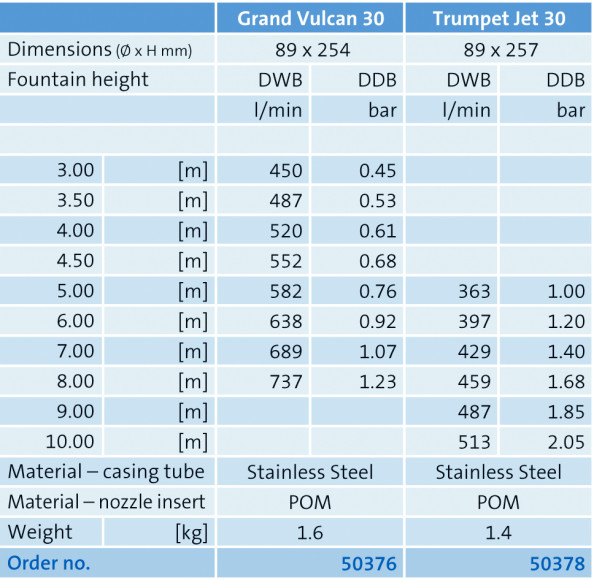

Trumpet Jet Nozzle 3"- Technical details
Pro-Jet Pump PowerFountain Height max (m)Fountain Height - 1st Step (m)Fountain Diameter (m)
1.1KW / 230V
5.0
1.2
Ø4.5
4.0KW / 400V
9.5
2.5
Ø8.0
Nozzle Part No.
50378




LED Illumination Set - Warm White
Power LED Light Set

The LED Illumination Set is supplied complete with 3 x 5.8w high performance submersible LED Spotlights, submersible transformer with 20 metres of 240V cable, low voltage linking cables and all required brackets for mounting directly to the Pro-Jet or Air Flo LM floating fountains.  Maximum of 3 x LED Illumination Sets can be mounted (i.e. 9 Spotlights total) to each floating fountain.


Spotlight3 x Lunaqua Power LED High Performance Spotlight
Transformer1 x Power LED Safety Transformer 30VA / 230V, 50Hz incl. 20m Cable
Fixings3 x Light Mounting Brackets / Special Stainless Steel Transformer fixings
CompatibilityPro-Jet Floating Fountains /  Air Flo LM Floating Aerators
Part No.



LED Illumination Set - RGB Colour Changing
Power LED RGB Light Set

The ProfiLux RGB LED Illumination Set is supplied complete with 3 x 6w high performance submersible colour-changing LED Spotlights, submersible transformer with 20 metres of 240V cable, low voltage linking cables and all required brackets for mounting directly to the Pro-Jet or Air Flo LM floating fountains.  The set also includes the OASE FM Master EGC Cloud Controller, facilitating a huge range of colour sequencing options via your smart device.  Maximum of 3 x LED Illumination Sets can be mounted (i.e. 9 Spotlights total) to each floating fountain.


Spotlight3 x Lunaqua Power LED RGB colour-changing spotlight
Transformer1 x Power LED Safety Transformer 30VA / 230V, 50Hz incl. 20m Cable
Fixings3 x Light Mounting Brackets / Special Stainless Steel Transformer fixings
CompatibilityPro-Jet Floating Fountains /  Air Flo LM Floating Aerators
Part No.42641+70789
