1HP Sub-Surface Horizontal Mixer | Otterbine - Water Garden UK


  • 1HP Sub Surface Horizontal Mixer

  • The 1HP Sub Surface Mixer is designed to circulate a body of water to improve aeration and water movement in high nutrient and effluent pond and lake waters. The Sub Surface mixer is ruggedly built and is designed to work in areas where water circulation is poor i.e. canals, shorelines, inlets or wherever directional flow is needed.

    The 1 horsepower Mixer is manufactured from high strength, industrial grade 18 gauge 316L stainless steel that is oil cooled and custom built to be as efficient as possible. The unit features a precision pitched stainless steel impeller that is virtually indestructible and a 316L stainless steel cage to block large debris from entering the pumping chamber.  The 1HP unit features adjustable brackets that allow you to control the angle at which the current is released into the water column.

    The 1HP Mixer is energy efficient with a max power draw of 1679 watts and will influence an area of approximately 12,488m3 (approx 3 acres) and is designed to work at a minimum depth of 0.8m (2.5ft)

    Water Garden Ltd provides a complete and comprehensive 1HP Sub Surface Mixer system, consisting of the following equipment:

    • 1 x Sub Surface 1HP / Single Phase / 230V Motor assembly
    • High strength protective pump cage with protective arms
    • 1 x Sub Surface Pump Chamber
    • 30m (98ft) x 3 core 4mm2 Submersible Power Cable
    • 1 x Submersible Cable Joint Kit.

    Please allow around 7-10 working days for construction.

    Find out more
  • QTY

    £8,610.00 inc. VAT

    £7,175.00 exc. VAT


Sub Surface 1HP Horizontal Mixer Specifications:

3 Year Otterbine Warranty

Minimum Operating Depth: 76cm (2.5ft)

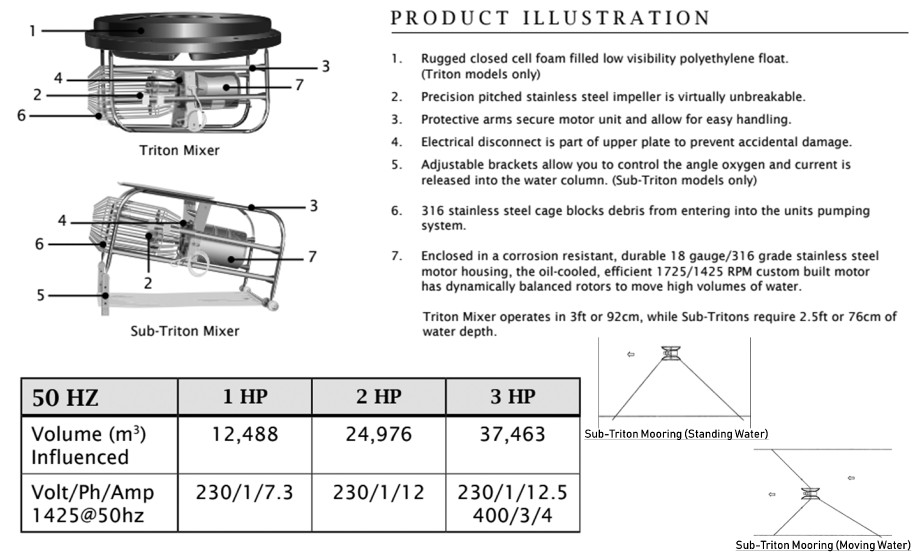

Sub-Triton Tech Sheet 2

1HP Sub Surface Horizontal Mixer
