2 HP Floating Lake Aerator
-
£9,426.00 inc. VAT
£7,855.00 exc. VAT
-

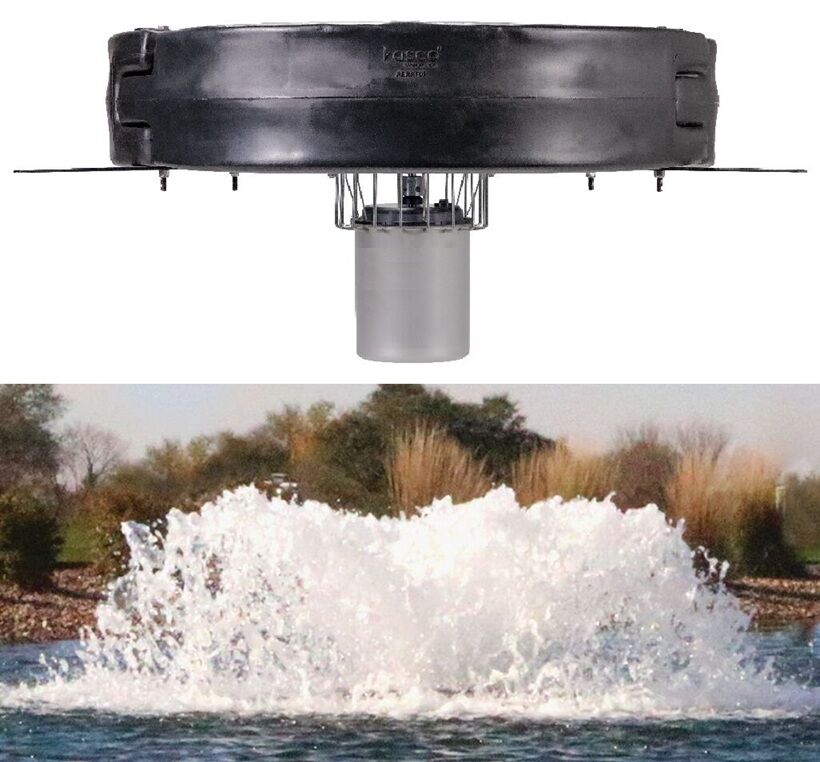

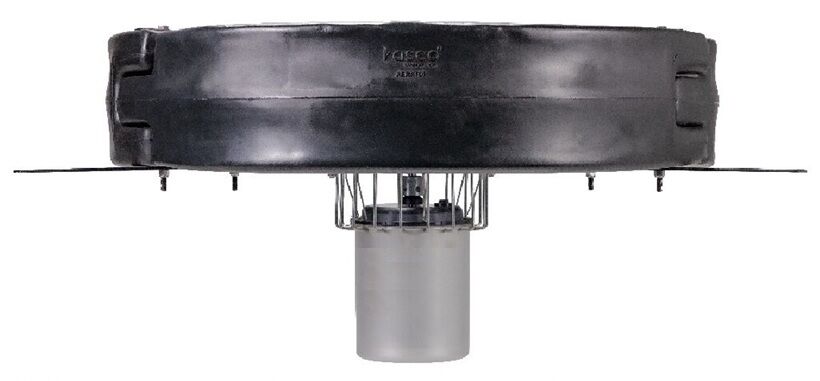

2 HP Floating Lake Aerator
-
Floating Lake Surface Aerator for Lakes up to 8000m².
Floating surface aerators are a great way of managing water quality in nutrient rich, stagnating water bodies. Surface aerators are frequently used on private lakes, golf course lakes, farm ponds, in aquaculture, horticulture, waste management and fish farming. Oxygenating water helps improve and maintain water quality and provides vital dissolved oxygen for livestock ponds. Surface aerators use a large, high volume propeller to mix water and air, spewing rich, oxygenated water from the top outlet in the form of a large foaming boil.
- 220V / 50Hz 1 Phase, 2 HP Motor, 1,760 Watts, 8.0 Amp. OTR 6.0lb/hour.
- Ideal for aerating lakes of 4000m² to 8000m² (1.0 - 2.0 acre) surface area.
- Suitable for freshwater and saltwater installation.
- Supplied with 3 bottom float brackets and mooring ropes.
- Minimum water depth for installation is 51cm.
- Short ‘stub’ power cable for connection to extended cable runs.
- Control Panel with timers available.
- 2 Year Warranty.
- Watch Product Video
Description
Floating Aerators.
Floating aerators are an efficient way of high volume circulating, mixing and oxygenating water.
Aeration will help limit algae growth, prevent stagnation and promote biological activity that keeps water healthy. Aerating can vastly improve water quality and also creates a dissolved oxygen rich environment for aquatic life. These floating lake aerators can infuse up to 3lb of oxygen (per 1 motor HP) per hour in optimal conditions. Floating aerators can be used in deep water bodies, or operated in relatively shallow water. This type of aerator is simple to install and operate, making these units ideal for private lakes as well as commercial applications such as maintaining golf course lake water and aerating fish farming ponds. Surface aerators can be run constantly, or during targeted time periods, such as the warmest part of the day, or overnight in well planted waters.
Saltwater Applications.
This range of floating lake aerators is suitable for use in both freshwater and saltwater and can therefore be installed in saltwater lagoons and marinas, as well as lakes and ponds. The aerator units are pre-fitted with a protective Zinc Anode on the rotor shaft. This anode will protect the unit from corrosion and electrolysis in saltwater applications, as the anode acts as a sacrificial consumable part, reacting with the saltwater and safeguarding the stainless steel parts by cathodic protection. The Zinc Anode will reduce over time in saltwater and requires replacing when it has reduced to half of its original size, or when it turns white in colour. The Zinc anode would not usually require replacing in most freshwater applications, but should still be checked as a matter of precaution.
Maintenance and Cleaning.
These surface aerators are built very robustly, with mechanical seals and long life bearings and therefore require little in the way of regular maintenance. A general inspection and clean of the unit housing once or twice annually should be all that is required to keep the unit in good condition. Particularly demanding applications may require more regular cleaning. In saltwater, the Zinc anode should be inspected quarterly (every 3 months) and replaced when necessary. If the unit is installed in a hard water area, it may be required to periodically soak the motor assembly in a solution containing water and de-scaler to remove any lime scale collected around the rotor. If the aerator is not being operated during the Winter months, this should be removed from the water and stored away to prevent any standing surface water from freezing around the rotor and outlet areas.
We recommend using ByoFix Lake Bacteria - 1Kg alongside an aerator to improve water quality by increasing and maintaining beneficial aerobic bacteria levels.
Product video
Additional Information
Technical Info
Technical Info
Floating Lake Aerators
| ½ HP Aerator | ||||
Motor Voltage | 220V / 50Hz, 1 Phase | ||||
Voltage Operating Range | 208V – 240V | ||||
Motor Watts | 484w | 748w | 814w | 1760w | 2618w |
Motor HP | ½ HP | ¾ HP | 1 HP | 2 HP | 3 HP |
Running Amps at 220V | 2.2 Amp | 3.4 Amp | 3.7 Amp | 8.0 Amp | 12.6 Amp |
Starting Amp at 220V | 6.0 Amp | 9.0 Amp | 10.0 Amp | 40.0 Amp | 60.0 Amp |
Maximum Lake Surface Area (M²) | 2000m² | 3000m² | 4000m² | 8000m² | 12000m² |
Maximum Lake Surface Area (Acres) | 0.5 Acre | 0.75 Acre | 1 Acre | 2 Acres | 3 Acres |
Minimum Water Depth for Installation | 45cm | 45cm | 49cm | 51cm | 61cm |
Maximum O2 Transfer Rate Per Hour | 1.50lb | 2.25lb | 3.0lb | 6.0lb | 9.0lb |
Supplied Cable Length | 10 Metres | 10 Metres | 10 Metres | Short 'Stub' | Short 'Stub' |
Recommended Maximum Cable Run | Unlimited, but cable should be sized appropriately based on the total length required | ||||
Recommended Cable for 10 Metre Run | 1.5mm² (Cable Pre-Fitted) | 1.5mm² | 1.5mm² | ||
Recommended Cable for 30 Metre Run | 1.5mm² | 1.5mm² | 1.5mm² | 2.5mm² | 2.5mm² |
Recommended Cable for 60 Metre Run | 2.5mm² | 2.5mm² | 2.5mm² | 4mm² | 6mm² |
Recommended Cable for 90 Metre Run | 2.5mm² | 2.5mm² | 4mm² | 6mm² | 6mm² |
Recommended Cable (100 Metres +) | Consult an electrician or contact us for advice | ||||
Suction Strainer | Optional Bottom Screen and Mesh, Not Supplied as Standard | ||||
Mooring Ropes | 2 x 15 Metre Ropes | 3 x 15 Metre Ropes | |||
Anchors | Not Supplied | ||||
Model No. | 2400EA010 | 3400EA010 | 4400EA010 | 8400EA000 | 3.10EA000 |
Manual Reference No. | 2400EAF | 3400EAF | 4400EAF | 8400EA | 3.1EA |
Guarantee Period | 2 Years | ||||
Floating Aerator Fountain: Mooring Suggestions.
Mooring of the Aerator can be easily achieved using the supplied heavy duty tethering ropes and suitable ballast such as concrete slabs (not supplied) if anchoring the aerator.
 |
