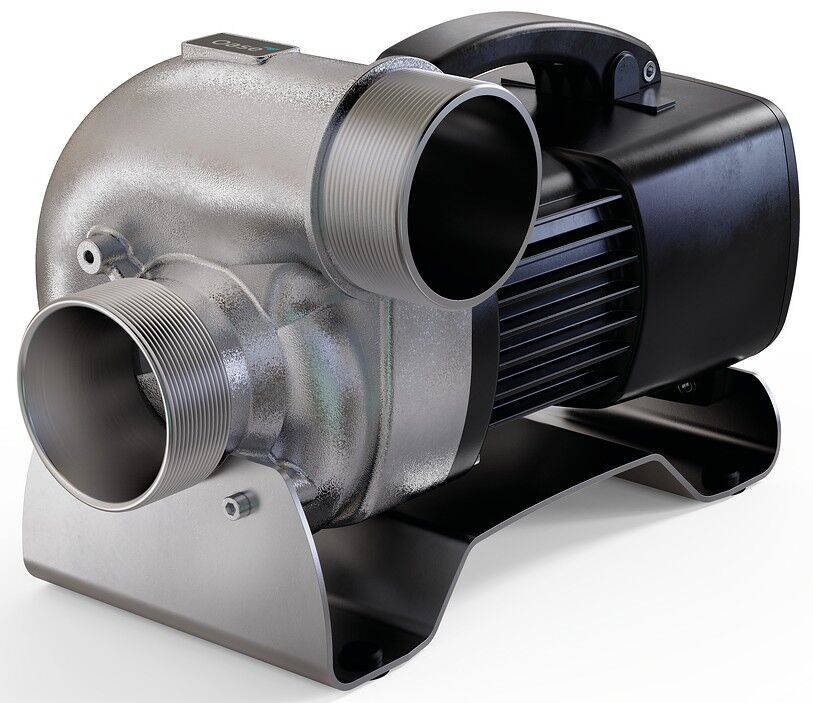

AquaMax ECO Titanium 81000 Pump
-

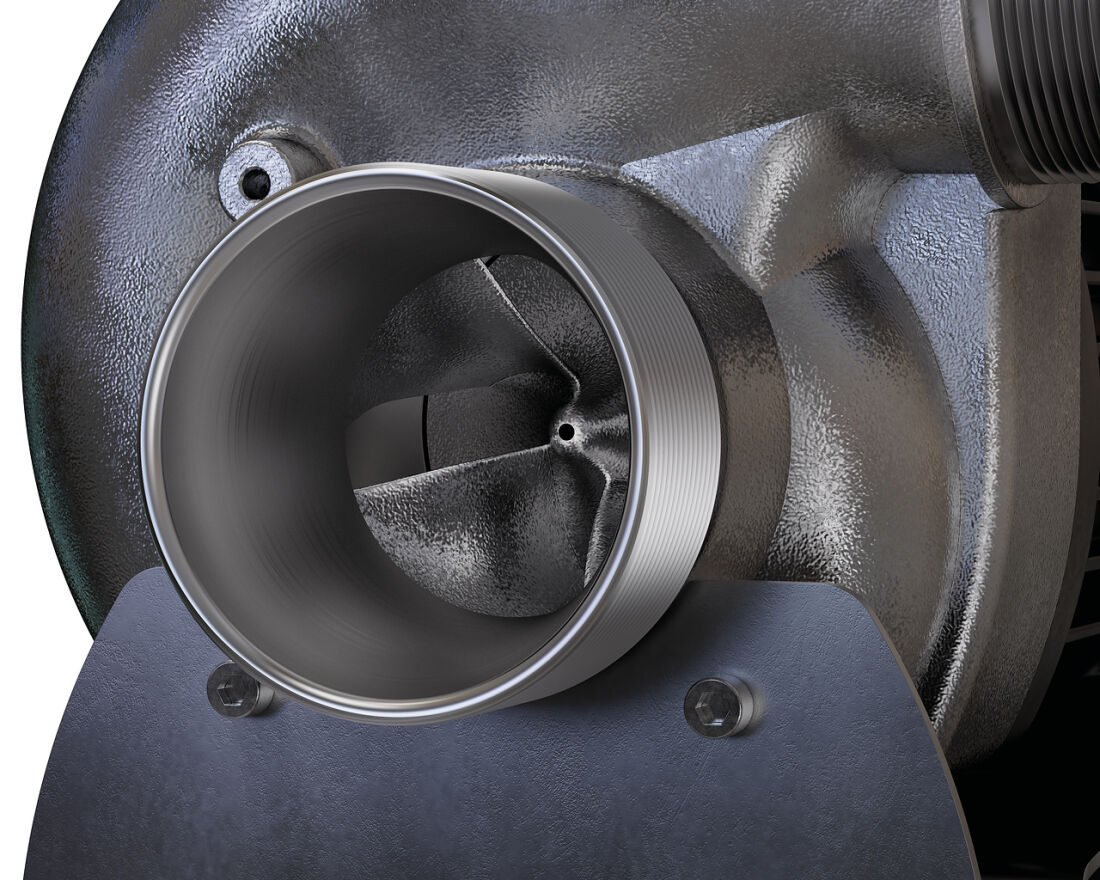

The new OASE AquaMax Eco Titanium 81000 pump is designed to provide high flow rates and high levels of energy efficient performance for large bodies of water and filtration systems. The AquaMax Eco Titanium 81000 features precision cast, stainless steel pump housing and wear resistant ceramic rotor shafts and bearings to ensure a long service life and continuous high performance.
- Maximum Flow Rate: 81,000 Litres / Hour.
- Maximum Head: 5.5 metres.
- Inlet / Outlet Connection: 3" BSP Male Threaded.
- Maximum / Minimum Power Consumption: 730 Watts / 100 Watts (electronically controllable via optional ECO Expert Pump Control).
- 230V / 50Hz Single Phase electrical supply.
- 10m of mains cable supplied.
Description
The OASE AquaMax ECO Titanium 81000 pump incorporates ultra energy efficient ECO Motor Technology to provide the lowest possible running costs. Aquamax ECO Titanium pumps are incredibly robust with stainless steel castings and are designed to supply water to larger pond filters or can be used to create impressive waterfalls and streams. The pump is ideally suited to pull water through larger koi pond filters in a gravity fed, dry mounted scenario.
The Titanium Eco pump is designed to handle solid particles such as fish and Koi waste, silt and detritus and is capable of continuous underwater or dry mounted (Flooded Suction) operation. Flow rates of up to 81,000 Litres/Hour (17,817 Gallons/Hour) are achievable and has a maximum vertical lift capability of 5.5 metres (18ft).
The Aquamax Eco Titanium 81000 has the ability to connect to a controller allowing the water flow to be electronically regulated, which will also reduce the power consumption accordingly (100 watts minimum / 730w maximum).
Additional Information
Technical Info
Performance Data
Technical Info
OASE AquaMax Eco Titanium 31000 - 81000 Technical Information
| Model | AquaMax ECO Titanium 31000 | AquaMax ECO Titanium 51000 | AquaMax ECO Titanium 81000 |
| Dimensions (L x W x H) - mm | 275 x 175 x 215 | 350 x 220 x 245 | 390 x 235 x 245 |
| Rated Voltage | 220 - 240 V 50/60 Hz | ||
| Power Consumption - w | 35 - 170 | 70 - 320 | 100 - 730 |
| Power Cable Length - m | 10 | ||
| Net Weight - kg | 9.2 | 16.5 | 17.5 |
| Max Flow Rate - l/h | 31500 | 51000 | 81000 |
| Max Head Height - m | 3.3 | 4 | 5.5 |
| Pressure-Side Connection - mm/in | 63 / 2 1/2" | 70 / 3" | |
| Suction-Side Connection - mm/in | 63 / 2 1/2" | 70 / 3" | |
| Max Debris Displacement - mm | 6 | ||
| Connection EGC | Yes | ||
| Electronic Adjustment | Yes | ||
| Setup Type | Can be set up underwater and dry mounted | ||
| Guarantee ( + Request Guarantee) | 3 + 2 | ||
Related tech articles and downloads
Performance Data
OASE AquaMax Eco Titanium 31000 / 81000 - Performance Curve Chart.
 |
