Aquamax Gravity Eco 10000
-
£535.20 inc. VAT
£446.00 exc. VAT
-
Aquamax Gravity Eco 10000
-
- High Flow optimised impeller and energy efficient motor achieves low power consumption
- High quality stainless steel strainer basket passes course debris particles of up to 6mm Ø
- Integrated, intelligent dry run protection (GSR - Gravity Self Regulator)
- Winterproof thanks to Oase Intelligent Frost Protection Technology
- Includes a special adapter set for connection to 75mm/110mm (I.D./O.D.) pipes or 2" hose sizes
- 3 year guarantee can be extended on request by 2 years for a total of 5 years, free of charge
Description

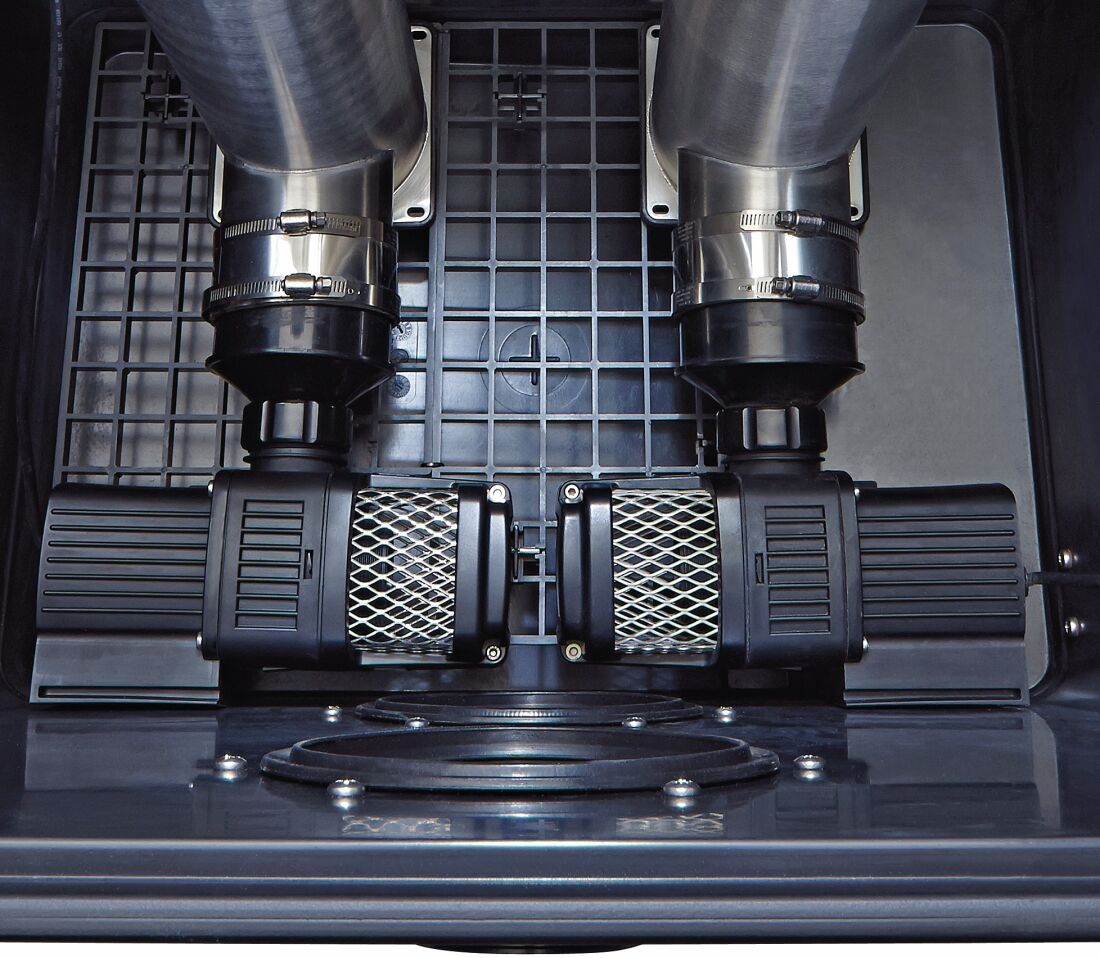

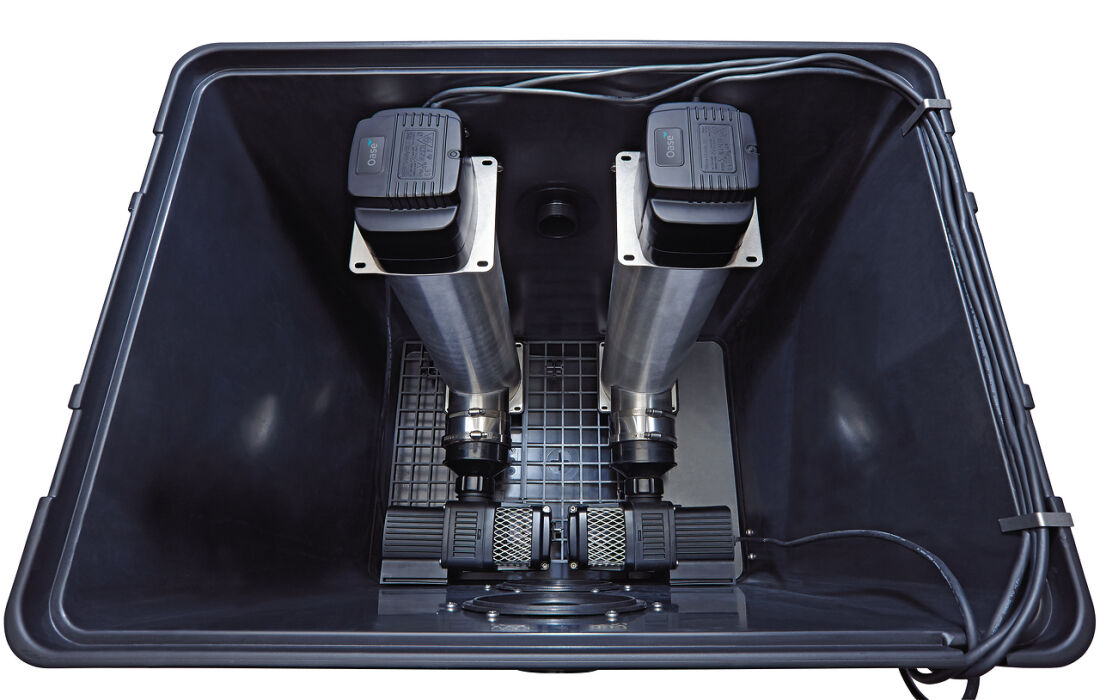

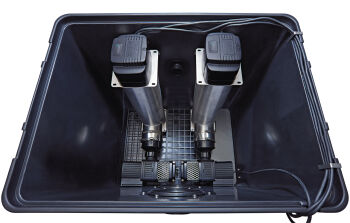

Specifically designed for use with gravity fed (bottom drain) filter systems such as the OASE Proficlear Modular Filter System
6mm Solids-handling submersible pump, ideal for ponds, pond filters and watercourses
Includes a special adapter set which enables connection to 75mm/110mm (I.D./O.D.) pipes or 2" hose sizes
All Aquamax Gravity Eco pumps have a rated voltage of 220-240V/50Hz
The full guarantee of 3 years can be extended by an additional 2 years on request for a total of 5 years, free of charge
Additional Information
Technical Info
Performance Data
Technical Info
Pump Comparison Chart for the OASE Aquamax Gravity Eco pump range (10000 - 18000 Litres/Hour)
| Aquamax Gravity Eco Pump Model | 10000 | 15000 | 20000 | |||||||
| Max Flow Rate (litres per hour) | 10000 | 15000 | 18000 | |||||||
| Max Flow Rate (litres per minute) | 167 | 250 | 300 | |||||||
| Max Discharge Head (metres) | 1.3 | 1.8 | 2.2 | |||||||
| Max Suction Lift (metres, if appropriate) | 0 | 0 | 0 | |||||||
| Discharge connection | 2" BSPM | 2" BSPM | 2" BSPM | |||||||
| Recommended discharge hose (int Ø, inch/mm) | 2" / 50mm | 2" / 50mm | 2" / 50mm | |||||||
| Suction connection | 2" BSPM | 2" BSPM | 2" BSPM | |||||||
| Recommended suction hose (Int. Ø, inch/mm) | 2" / 50mm | 2" / 50mm | 2" / 50mm | |||||||
| Solids handling capacity (mm Ø) | 6mm | 6mm | 6mm | |||||||
| Voltage/Hz | 220-240V / 50Hz | 220-240V / 50Hz | 220-240V / 50Hz | |||||||
| Power consumption watts | 65w | 85w | 120w | |||||||
| Cable length (metres) | 10m | 10m | 10m | |||||||
| Dimensions mm | 272 x 142 x 182 | 272 x 142 x 182 | 272 x 142 x 182 | |||||||
| Weight kgs | 4.2 | 4.5 | 4.5 | |||||||
| Guarantee (+ F.O.C. Request Guarantee) years | 3 + 2 | 3 + 2 | 3 + 2 | |||||||
Related tech articles and downloads
Performance Data
Pump Performance Curves for the OASE Aquamax Gravity Eco pump range (10000 - 18000 Litres/Hour)
H (mWS) = Metres Head; Q (l/min) = litres per minute
1 metre = 3ft 3"; 1 gallon = 4.5 litres
 |
Aquamax Gravity Eco 10000 |
