  • Aquamax Gravity Eco 20000

  • Highly reliable, ultra energy efficient OASE filter pumps, ideally suited to gravity filters and pond skimmers.

    • High Flow optimised impeller and energy efficient motor achieves low power consumption
    • High quality stainless steel strainer basket passes course debris particles of up to 6mm Ø
    • Intelligent dry run protection (GSR - Gravity Self Regulator), integrated into the Gravity Eco pump
    • Fully winterproof due to Oase Intelligent Frost Protection Technology
    • Includes a special adapter set for connection to 75mm/110mm (I.D./O.D.) pipes or 2" hose sizes
    • 3 year OASE guarantee can be extended upon request free of charge by 2 years for a total of 5 years.
    Find out more
  • QTY

    £841.20 inc. VAT

    £701.00 exc. VAT

  • Pay in 3 interest free payments of £280.40

Description

Specifically designed for use with gravity fed (bottom drain) filter systems such as the OASE Proficlear Modular Filter System

6mm Solids-handling submersible pump, ideal for ponds, pond filters and watercourses

Includes a special adapter set which enables connection to 75mm/110mm (I.D./O.D.) pipes or 2" hose sizes

All Aquamax Gravity Eco pumps have a rated voltage of 220-240V/50Hz

The full guarantee of 3 years can be extended by an additional 2 years on request for a total of 5 years, free of charge

Additional Information

Technical Info

Technical Info

Pump Comparison Chart for the OASE Aquamax Gravity Eco pump range (10000 - 18000 Litres/Hour)



Aquamax Gravity Eco Pump Model100001500020000
Max Flow Rate (litres per hour)100001500018000
Max Flow Rate (litres per minute)167250300
Max Discharge Head (metres)1.31.82.2
Max Suction Lift (metres, if appropriate)000
Discharge connection2" BSPM2" BSPM2" BSPM
Recommended discharge hose (int Ø, inch/mm)2" / 50mm2" / 50mm2" / 50mm
Suction connection2" BSPM2" BSPM2" BSPM
Recommended suction hose (Int. Ø, inch/mm)2" / 50mm2" / 50mm2" / 50mm
Solids handling capacity (mm Ø)6mm6mm6mm
Voltage/Hz220-240V / 50Hz220-240V / 50Hz220-240V / 50Hz
Power consumption watts65w85w120w
Cable length (metres)10m10m10m
Dimensions mm272 x 142 x 182272 x 142 x 182272 x 142 x 182
Weight kgs4.24.54.5
Guarantee (+ F.O.C. Request Guarantee) years3 + 23 + 23 + 2





Performance Data

Performance Data

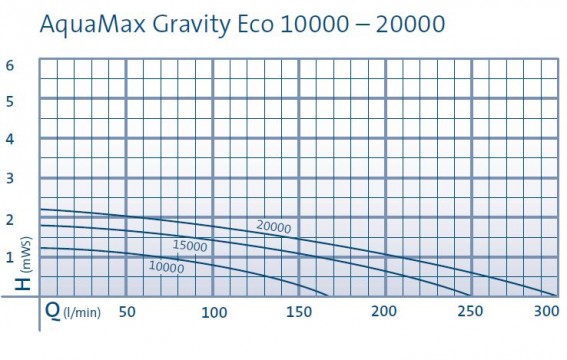

Pump Performance Curves for the OASE Aquamax Gravity Eco pump range (10000 - 18000 Litres/Hour)

Pump-Performance-Curve

H (mWS) = Metres Head; Q (l/min) = litres per minute

1 metre = 3ft 3"; 1 gallon = 4.5 litres







Aquamax Gravity Eco 20000
