Aquarius Fountain Set Eco 5500 | Oase Pumps - Water Garden UK
  • Aquarius Fountain Set Eco 5500 Pump

  • OASE Engineers in Germany have developed the superb energy-efficient Aquarius Fountain Set Eco 5500 Pump for providing decorative fountain displays in ponds and garden water features.  The new motor technology offers powerful 5,500L/Hour performance yet consumes only 70 watts.  The Aquarius Eco 5500 is supplied with the Vulkan 37-2.5K multi-tiered fountain nozzle and the Lava 36-10K water bell nozzle for creating highly attractive water displays of up to 2.2 metres height.

    The Aquarius Fountain Set Eco 5500 also features a swivel joint which allows the nozzle to be aligned correctly even if the pond floor is not level.  The additional secondary water outlet can be used to provide water flow to a small waterfall or water feature and the flow to the fountain and the second outlet can be independently adjusted.  An adjustable Telescopic Riser is supplied to allow height adjustment to suit the pond depth.  The pump is protected by Oase's innovative EFC (Environmental Function Control) which will automatically switch the pump off in the event of accidental dry running, to prevent damage to the fountain motor.  The Eco 5500 Fountain pump is supplied with 10 metres of 230V Mains Cable.

    We recommend the Fountain Spotlight Support and Lunaqua 3 Spotlight Set 3 to uplight your fountain feature.

    • Vulkan Multi-Jet Nozzle will produce a fountain display of up to 2.2m height x 1.55m Diameter.
    • Lava Nozzle will produce a water bell display of up to 90cm diameter.
    • Only 70 Watts power consumption.
    • Max Flow of 5500 Litres/Minute.  Max Head of 3.8 metres.
    • Full 5 Year OASE Guarantee.
    Find out more
  • QTY

    £279.99 inc. VAT

    £559.99

    £233.33 exc. VAT

  • Pay in 3 interest free payments of £93.33

Description

Fountain pumps and fountain nozzles provide dancing water entertainment and help to achieve a healthy garden pond. They make fascinating water patterns and continuously enrich the supply of oxygen which improves the biological balance in your pond's eco system

  • Includes 2 x 1 inch (25mm) Ø Fountain Nozzles (Vulkan and Lava)
  • 1 inch (25mm) Ø telescopic (170 - 280mm ) nozzle extension pipe
  • Adjustable 3/4" - 1 1/2" inch secondary watercourse outlet

All water feature pumps cited here have rated voltage of 220-240V/50Hz

Additional Information

Technical Info

Technical Info

Fountains become more beautiful, the better they harmonise with the size of the garden pond. This is particularly true for high-flying water patterns. A fountain should not exceed a height where the water may not land completely in the pond. The influence of shifting winds should be taken into consideration. Rule of thumb: maximum fountain height equals the minimum distance to the nearest pond edge. All Aquarius Fountain Sets are capable of manual flow control and all models include a regulated secondary outlet for optional connection to a watercourse or waterfall.





The Aquarius Fountain Sets 5500 - 9500 are supplied with 2 different fountain nozzles.

The chart below gives the fountain pattern dimensions for each pump and nozzle combination


OASE Vulkan 37-2-5-K Nozzle

lava_fountain_oase_aquarius_fountain_set_classic



Vulkan Nozzle



Lava Nozzle


Ø cm
Height cm
Ø cm
Height cm
Aquarius Fountain Set 5500
155
220
90
-
Aquarius Fountain Set 7500
240
275
90
-
Aquarius Fountain Set 9500
275
335
90
-



Aquarius Fountain Set Model
Max Flow Rate (litres per minute)
91
125
158
Max Discharge Head (metres)
3.8
4.0
5.2
Max Suction Lift (metres, if appropriate)
0
0
0
Discharge connection
1" BSP with 1" Telescopic Nozzle Extension
Rec. watercourse discharge hose (int Ø)
3/4" / 1" / 1 1/4" / 1 1/2" / 19mm / 25mm / 32mm / 38mm
Suction connection
Not applicable
Recommended suction hose (Int. Ø, inch/mm)
Not applicable
Solids handling capacity (mm Ø)
Clean water applications only
Voltage/Hz
230v / 50Hz
Power consumption watts
70w
85w
125w
Cable length (metres)
10m
10m
10m
Dimensions mm
290 x 230 x 180
Weight kgs
4.90
4.9
5.8
Guarantee (+ Request Guarantee) years
3 + 2

Pond installation with fountain pump and filter

The graphic above shows an example of the Aquarius Fountain Set installed in a pond, together with an Aquamax Filter Pump and Filtoclear Pond Filter


Performance Data

Performance Data

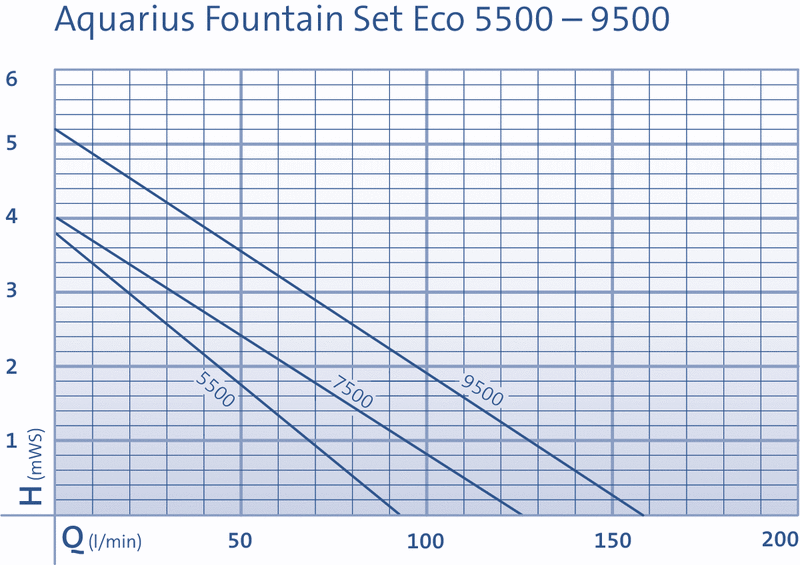

Pump Performance Curves for the OASE Aquarius Fountain Set range (1000 - 3500 Litres/Hour)



Fountain Set Chart 5500 - 9500



Aquarius Fountain Set pump performance curves. H (mWS) = Metres Head; Q (l/min) = litres per minute

 1 metre = 3ft 3"; 1 gallon = 4.5 litres





The Aquarius Fountain Sets 5500 - 9500 are supplied with 2 different fountain nozzles.

The chart below gives the fountain pattern dimensions for each pump and nozzle combination



Vulkan


Lava



Vulkan Nozzle



Lava Nozzle


Ø cm
Height cm
Ø cm
Height cm
Aquarius Fountain Set 5500
155
220
90
-
Aquarius Fountain Set 7500
240
275
90
-
Aquarius Fountain Set 9500
275
335
90
-
