Fountain 5500 & RGB Light Set

Price: £629.19 inc. VAT

Price: £524.33 exc. VAT

Buy now

Hover to zoom

Need advice on this product?

Speak to one of our experts today 02392 373735

Fountain 5500 & RGB Light Set

QTY
- -
- +
Price: £629.19 inc. VAT

Price: £524.33 exc. VAT

Add to Cart

Pay in 3 interest free payments of £209.73

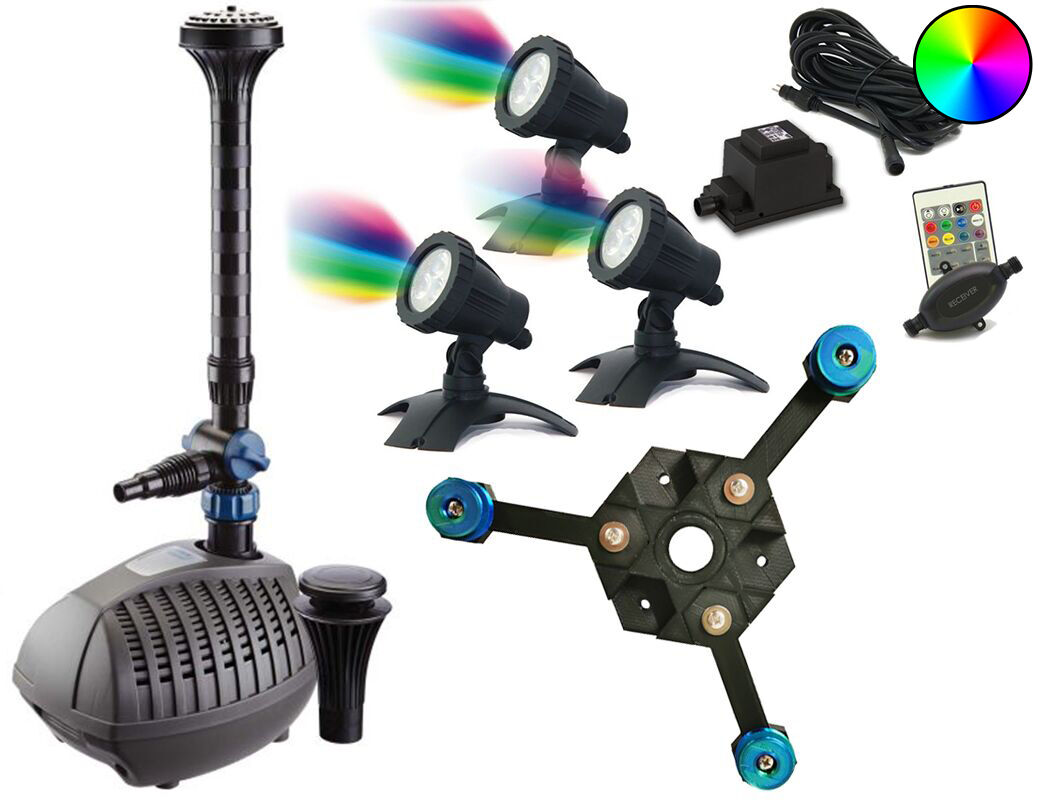

The Fountain 5500 & RGB Light Set allows you to create a stunning illuminated water display in ponds or as part of a garden water feature.

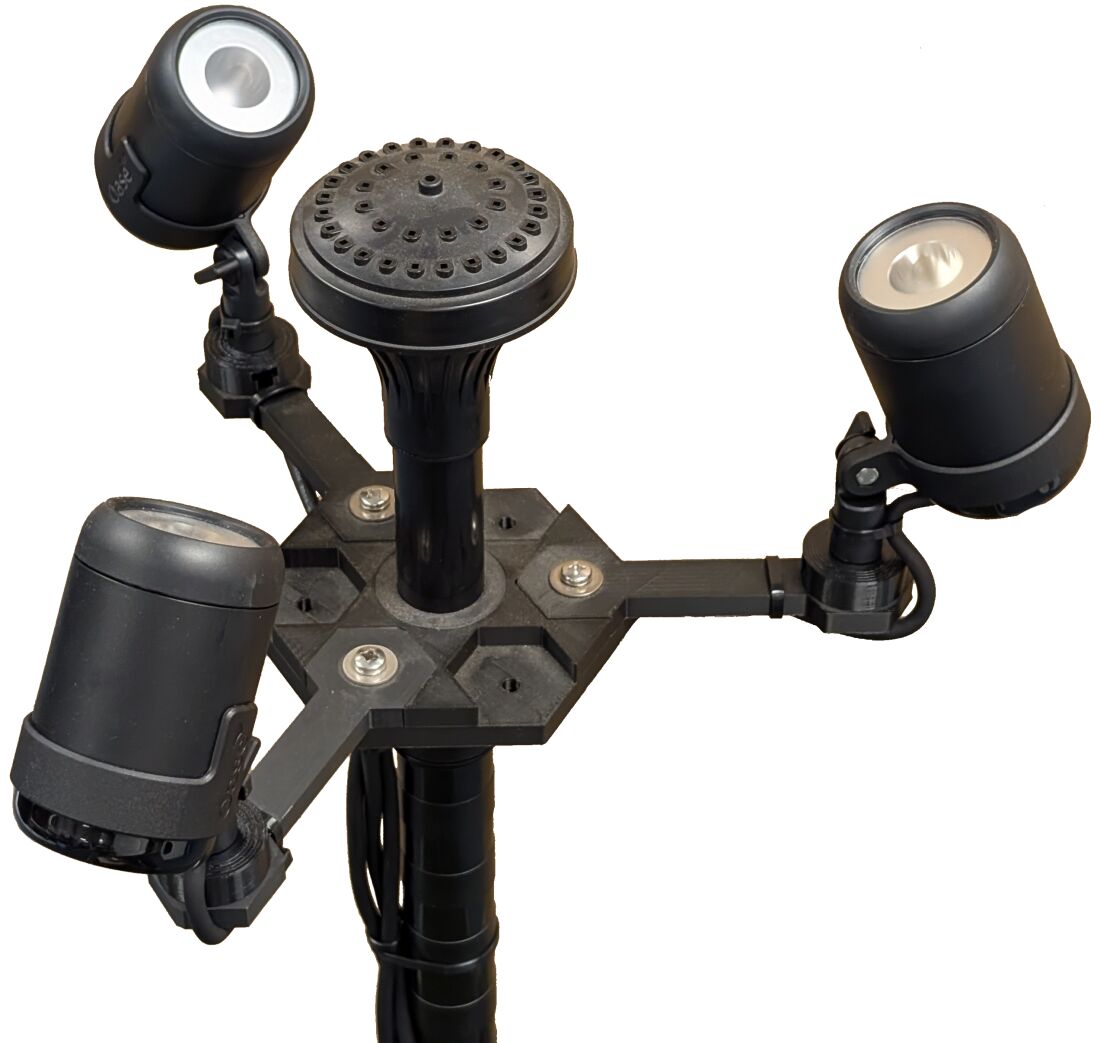

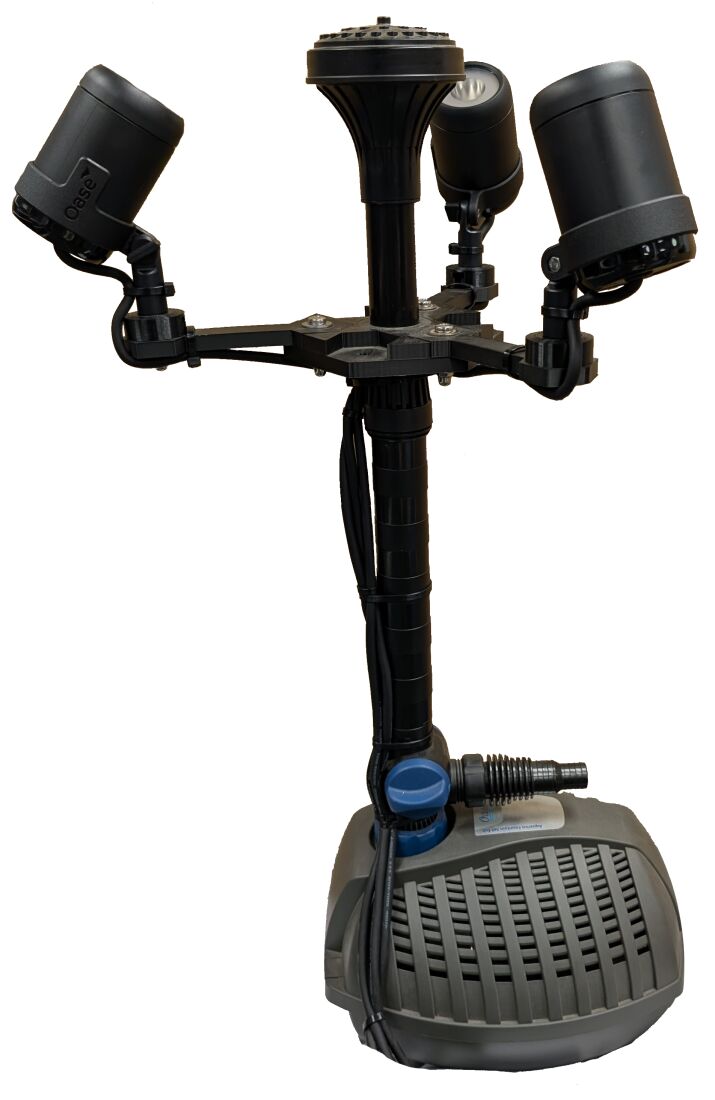

The 5500 Litre/Hour OASE Aquarius fountain pump is supplied with two different types of decorative nozzle attachments to offer either a water bell or multiple water jet display. The kit includes a set of 3 RGB LED spotlights which can be attached to the supplied support bracket and submersed underwater for wonderful illumination of the fountain display.
The OASE Aquarius Fountain Pump is fitted with a 2 way flow adjuster to allow control of the fountain display height. The kit also includes a telescopic riser pipe to cater for various pond depths.
Display sizes with supplied nozzles:
- Lava Water Bell Nozzle - Max. 90cm Diameter.
- Vulcan Multi-Jet Nozzle - Max. 2.2m Jet Height / Max. 1.5m Diameter.
Optional Nozzles (not supplied):
- 32mm Bore Foam Jet Nozzle: Max. 0.5m Jet Height.
Find out more

Need advice on this product?

Speak to one of our experts today 02392 373735

Additional Information

Technical Info
Performance Data

Technical Info

Fountain and Light Sets Technical Information

Aquarius Fountain Set Model	5500	7500	9500
Max Flow Rate (litres per minute)	91	125	158
Max Discharge Head (metres)	3.8	4.0	5.2
Discharge connection	1" BSP with 1" Telescopic Nozzle Extension
Rec. watercourse discharge hose (int Ø)	3/4" / 1" / 1 1/4" / 1 1/2" / 19mm / 25mm / 32mm / 38mm
Solids handling capacity (mm Ø)	Clean water applications only
Voltage/Hz	230v / 50Hz
Power consumption (watts)	70w	85w	125w
Cable length (metres)	10m	10m	10m
Dimensions (mm)	290 x 230 x 180
Weight (kgs)	4.9	4.9	5.8
Guarantee (+ Request Guarantee) years	3 + 2

PondMax Light Set	RGB Set 3	LunarLED Spotlight Set 3
Spotlight Dimensions	Ø77mm x H83mm
Rated Voltage (Spotlight)	12V
Rated Voltage (Transformer)	220-240V AC
Power Consumption (Per Spotlight)	5.5 watts	4.2 watts
Max. Power Consumption (Set)	16.5 watts	12.6 watts
Protection Class (Transformer)	IP 44 (Weatherproof)
Protection Class (Spotlight)	IP 68 (Fully Submersible)
Illuminant Type	RGB LED (Red, Green, Blue)	Warm White
Number of LEDs per Spotlight	3
LED Colour	RGB	White
Cable Length (Spotlight)	5 Metres
Cable Length (Transformer)	2 Metres
Cable Length (Transformer to Controller)	1 Metre	-
Remote Control Range	10 metres (approx.)	-
Guarantee	Spotlight: 2 Years / Transformer: 1 Year
Part Number	PMRGB3	PMWW3

LunarLED Spotlight Set 3 Connection Diagram

Lunar LED Light Sets Diagram

PondMax RGB LED Spotlight Set 3 Connection Diagram

2_2154

Performance Data

Pump Performance Curves for the OASE Aquarius Fountain Set range (1000 - 3500 Litres/Hour)

Fountain Set Chart 5500 - 9500

Aquarius Fountain Set pump performance curves. H (mWS) = Metres Head; Q (l/min) = litres per minute

1 metre = 3ft 3"; 1 gallon = 4.5 litres

The Aquarius Fountain Sets 5500 - 9500 are supplied with 2 different fountain nozzles. The chart below gives the fountain pattern dimensions for each pump and nozzle combination
	Vulkan Nozzle		Lava Nozzle
	Ø cm	Height cm	Ø cm	Height cm
Aquarius Fountain Set 5500	155	220	90	-
Aquarius Fountain Set 7500	240	275	90	-
Aquarius Fountain Set 9500	275	335	90	-
