The Grand Equinox Floating Fountain | Otterbine - Water Garden UK
  • Grand Equinox Floating Fountain

  • The Grand Equinox Floating Fountain provides a powerful and considerable water display of up to 12 metres (39ft) height and spreads to 32 metres (105ft) in diameter with a cross-hair, three dimensional pattern, making this well suited to more expansive lakes.  The floating pump produces a flow rate of around 113,500 Litres/Hour and will also assist in aerating and circulating the water body.

    The Grand Equinox pump is manufactured from robust Stainless Steel for freshwater applications. The Grand Fountain features a closed cell, high density polyethylene float that can be adjusted in the water for minimal visibility. The Fountain also features a stainless steel, multi-stage Grundfos pump and a 25 HP 2875rpm Franklin motor with quick disconnect power cable that ensures years of corrosion resistance and low maintenance.

    The Equinox features a removable 22 gauge stainless steel mesh intake screen that protects the pump from debris and polyethylene UV inhibitor wheels for easy installation into water (assembled weight of 435Kg).

    Water Garden Ltd provides a complete and comprehensive 25HP Grand Fountain system, consisting of the following equipment:

    • 1 x Floating 25HP / 3 - Phase / 400V / 40 Amp Pump and Motor Assembly
    • High Strength, Industrial Grade Stainless Steel and Closed Cell Polyethylene construction
    • Built in wheel system for easy installation
    • 150m (490ft) x 4 core 6mm2 Submersible Power Cable
    • 1 x Fountain Control Panel with RCD protected pump and (optional) lighting connections.
    • 1 x Submersible Cable Joint Kit

    Please allow around 14-21 working days for construction.

    Find out more
  • QTY

    £69,422.00 inc. VAT

    £57,851.67 exc. VAT

  • Pay in 3 interest free payments of £23,140.67


Grand Equinox 25hp Floating Fountain Specifications:

2 Year Otterbine Warranty

Minimum Operating Depth: 1m (3.2ft)

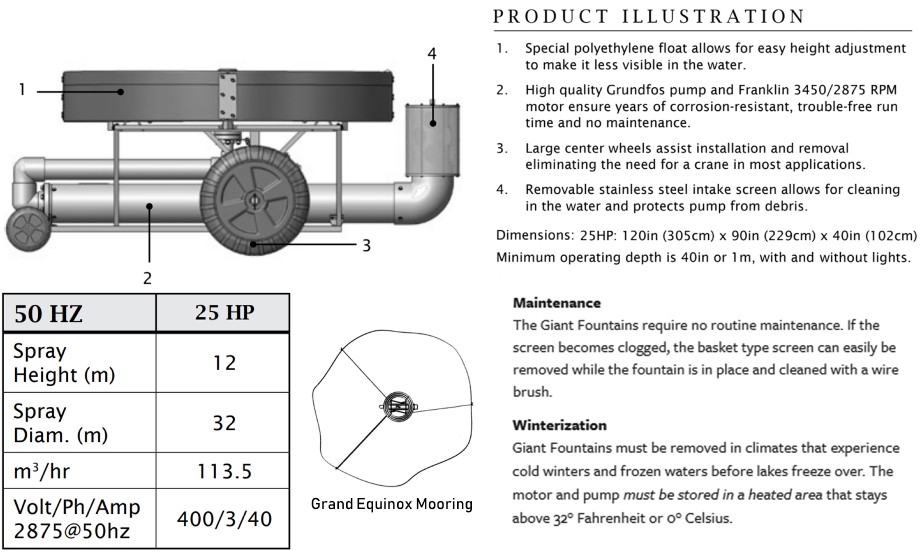

Equinox Tech Sheet

Product video

Grand Equinox Floating Fountain
