The Grand Triad Floating Fountain | Otterbine - Water Garden UK
  • Grand Triad Floating Fountain

  • The Grand Triad Floating Fountain provides a truly spectacular 3 tier water display of up to 14.3 metres (47ft) height.  The 2nd tier reaches 7.3m (24ft) height and the 3rd tier reaches 3.7m (12ft) and spreads to 12.2 metres (40ft), making this ideal for larger lakes.  The floating pump produces a flow rate of around 113,500 Litres/Hour and will also assist in aerating and circulating the water body.

    The Grand Triad pump is manufactured from robust Stainless Steel that is well suited to freshwater conditions. The Grand Fountain features a closed cell, high density polyethylene float that can be adjusted in the water for minimal visibility. The Grand Fountain also features a stainless steel, multi-stage Grundfos pump and a 25 HP 2875rpm Franklin motor with quick disconnect power cable that ensures years of corrosion resistance and low maintenance.

    The Triad features a removable 22 gauge stainless steel mesh striner sieve that protects the pump from debris and the polyethylene UV inhibitor wheels for easy installation into water (assembled weight of 435Kg).

    Water Garden Ltd provides a complete and comprehensive 25HP Grand Fountain system, consisting of the following equipment:

    • 1 x Floating 25HP / 3 - Phase / 400V / 40 Amp Pump and Motor Assembly
    • High Strength, Industrial Grade Stainless Steel and Closed Cell Polyethylene construction
    • Built in wheel system for easy installation
    • 150m (490ft) x 4 core 6mm2 Submersible Power Cable
    • 1 x Fountain Control Panel with RCD protected pump and (optional) lighting connections.
    • 1 x Submersible Cable Joint Kit

    Please allow around 14-21 working days for construction.

    Find out more
  • QTY

    £70,926.00 inc. VAT

    £59,105.00 exc. VAT

  • Pay in 3 interest free payments of £23,642.00

Description

Grand Triad 25hp Floating Fountain Specifications:

2 Year Otterbine Warranty

Minimum Operating Depth: 1m (3.2ft)

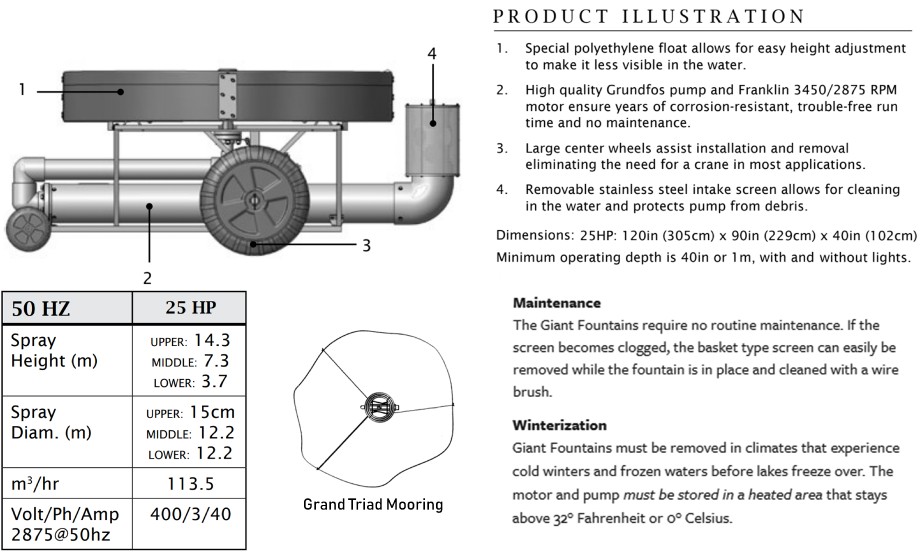

Triad Tech Sheet
