Grey Stepped Falls Watercourse Kit
-
£674.40 inc. VAT
£562.00 exc. VAT
Description
This water feature is manufactured from Polyurethane Resin which offers the realistic look of natural slate, but is far lighter in weight at only 3.15kg combined, making it far easy to position the pieces by hand and without the need for lifting machinery that would be required to move real stone.

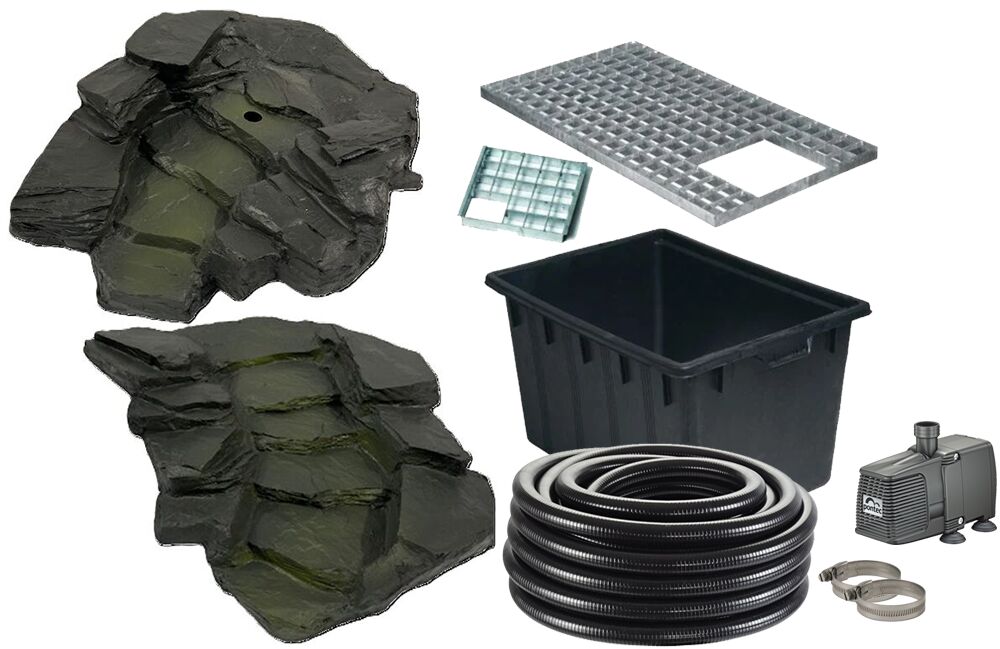

Supplied with this product:

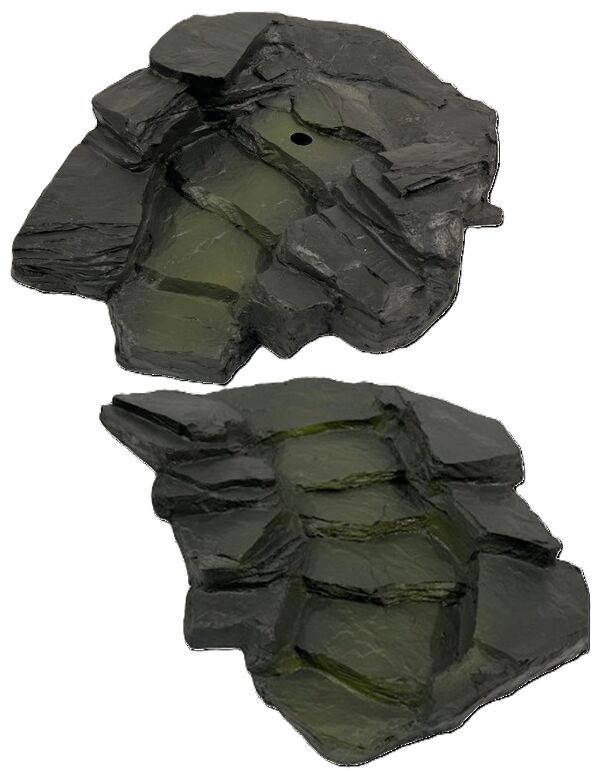

- 1 x Polyurethane Faux-Slate Top Right Bend Piece (60cm x 60cm x 13cm).
- 1 x Polyurethane Faux-Slate Bottom Left Bend Piece (60cm x 60cm x 13cm).
- 1 x 1” BSP Male Threaded Stepped Hose Tail with 20mm (3/4”) 25mm (1”) and 32mm (1¼”) Stages.
- 1 x 80cm x 63cm x 38cm Water Reservoir and Steel Grid with Pump Access Hatch.

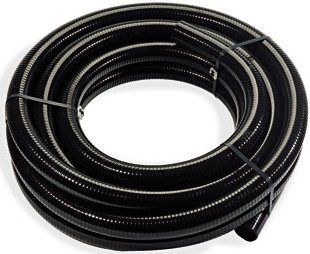

- 1 x 5 Metre Length of 1" (25mm) Black Flexible Hose Pipe.

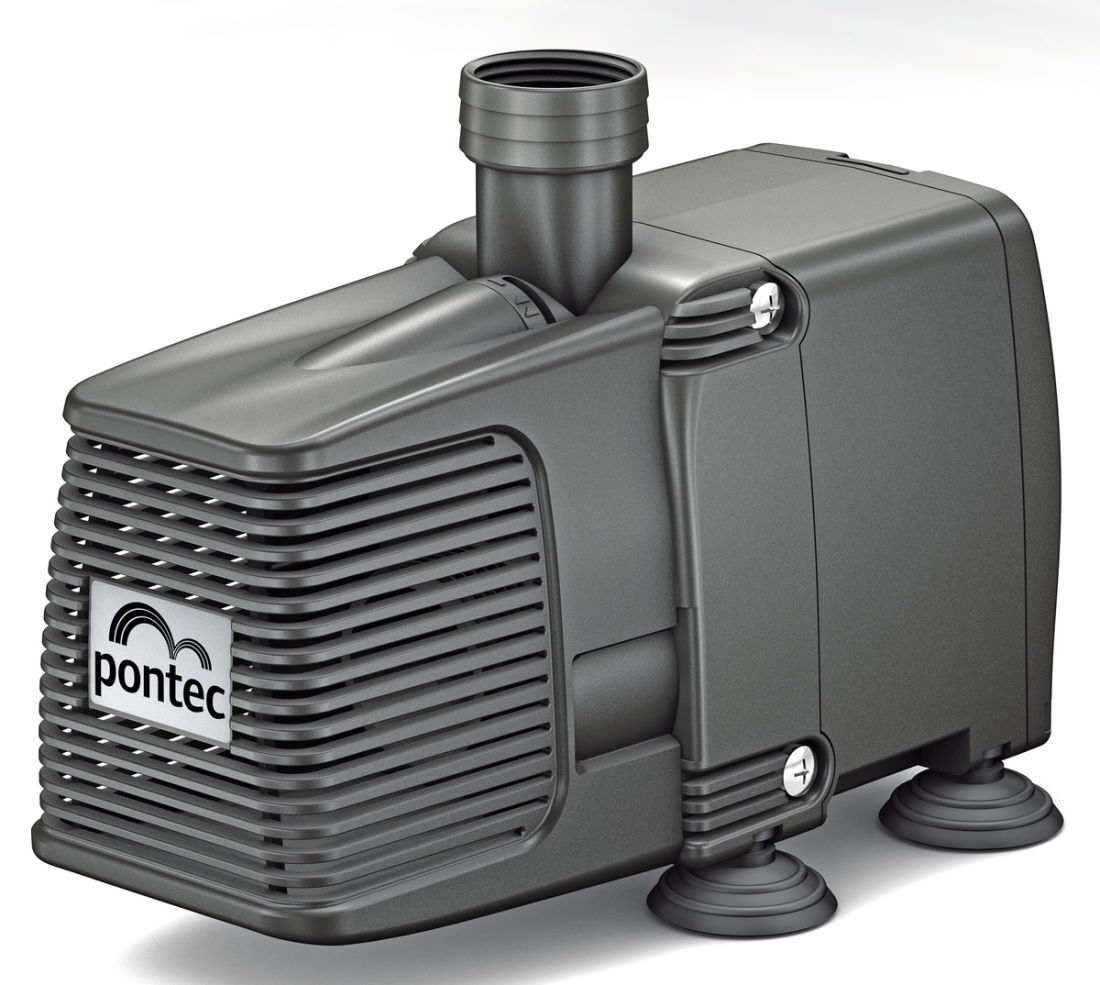

- 1 x Compact 3000 Water Feature Pump.

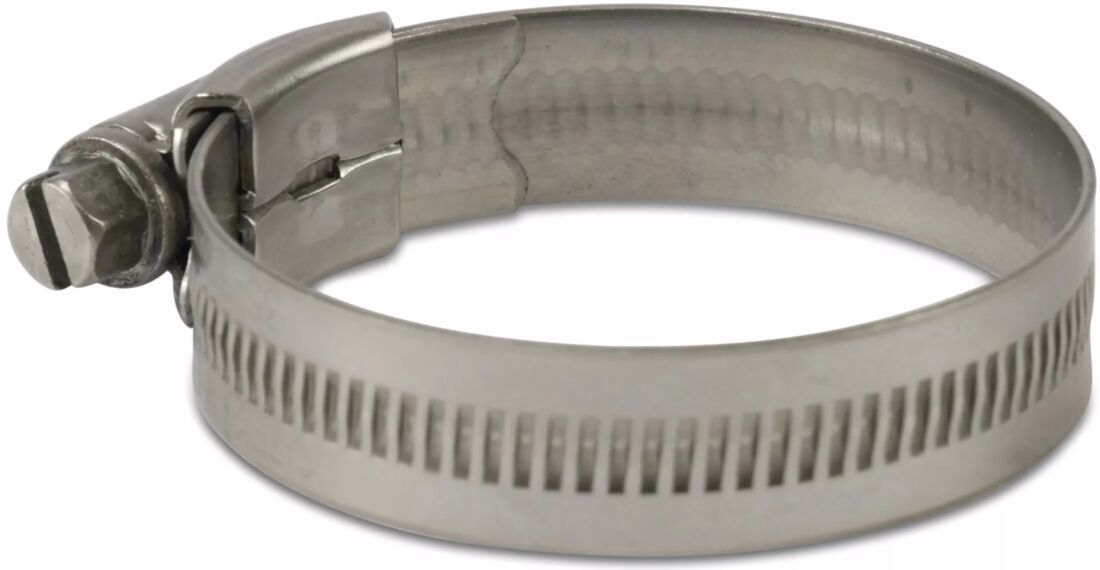

- 2 x 20mm - 32mm Stainless Steel Hose Clips.
Installation Tips:
The water feature needs to be positioned at a slight downward angle to assist gravity in directing the water down the cascade. The surface should be horizontally level to ensure the correct spread of water across the stream section. If additional support is required beneath the water feature to secure it at the desired angle, bricks or breeze blocks can serve this purpose if there is not a natural bank to use.
When the male threaded hose tail is screwed in, it is recommended that PTFE tape is wrapped around the thread of the hose tail to prevent any leaking. There is a thin skin of flexible material covering the outlet hole directly opposite the hose tail. This material must be pierced or cut out entirely before the water feature can be operated.
The flexible hose must be connected to the hose tail and secured with a stainless steel hose clip at both ends. The pump is installed in the water reservoir at the other end of the stream. To maximise the flow, we recommend that the 20mm (3/4") stage on the watercourse hose tail is sawn off before attaching the 25mm hose to the 25mm stage (middle stage) of the hose tail. The flexible hose can be buried or routed beneath the water feature to hide it.
It is recommended that the flow direction of the stream is tested before finishing the water feature, so that adjustments to the position of the feature can be made if necessary. Testing can be done by gently pouring a bucket of water or directing a hose pipe down the stream to see if the water takes the intended path to the bottom. When running satisfactorily, the feature can be set in by backfilling around it with a sand/cement mix and/or soil so that it should not move from its final position.
The water reservoir should be buried in the ground to conceal it from view, with the steel grid at ground level. The steel grid can be covered with a decorative stone aggregate to hide it from view. The lowest ledge of the watercourse must overhang the edge of the water reservoir so that all of the water makes its way back to the reservoir. The pump must be fully immersed underwater at the bottom of the water reservoir. The pump should be capable of delivering a minimum of 1,500 litres per hour at the head of the stream.
Product video
Additional Information
Technical Info
Technical Info
Technical Information:
- Assembled Watercourse Dimensions: Length 900mm x Width 600mm x Height 260mm.
- Combined Watercourse Weight 3.15kg (Right Bend 1.5kg + Left Bend 1.65kg).
- Water Reservoir Dimensions: Length 800mm x Width 630mm x Height 380mm.
- Steel Grid Access Hatch Dimensions: 200mm x 200mm.
- Flexible Hose Diameter: 25mm Internal. 30mm External.
- Pump Dimensions: Length 170mm x Width 75mm x Height 120mm.
- Pump Power Consumption: 55 Watts.
- Pump Voltage: 230V/50Hz.
- Pump Cable Length: 10 Metres.
- Pump Guarantee: 2 Years.
 |
