- Neil WilliamsPumps strainer cage allows fabrics to pass through to be collected in filter. Pond therefore has far less debris collecting on the bottom.
- David BentickExcellent quality pump, very pleased the the rate of flow, design, ease of use & maintenance.
Additional Information
Technical Info
Performance Data
Technical Info
| |||||||
Dimensions (L x W x H) | 280 x 230 x 130 mm | ||||||
Rated voltage | 220 – 240 V / 50 Hz | ||||||
Power Consumption (Watts) | 23 | 35 | 60 | 80 | 100 | 135 | 170 |
Power cable length (metres) |
|
|
| 10.00m |
|
|
|
Net weight (Kg) | 2.90 | 3.10 | 3.20 | 4.40 | 5.00 | 5.00 | 5.35 |
Guarantee + (request Guarantee) |
|
|
| 3 + 2 Years |
|
|
|
Max. flow rate L/min | 43 | 58 | 88 | 138 | 183 | 226 | 290 |
Max. flow rate L/hr | 2600 | 3500 | 5300 | 8300 | 11000 | 13600 | 17400 |
Max. head height (metres) | 2.20 | 2.60 | 2.80 | 3.20 | 3.30 | 3.40 | 3.70 |
Pressure-side connection (mm) | 1 /2” BSPM | 1 ½" BSPM | 1 ½" BSPM | 1 ½" BSPM | 2” BSPM | 2” BSPM | 2” BSPM |
Suction-side Connection (mm) | 1 ½" BSPM | 1 ½" BSPM | 1 ½" BSPM | 1 ½" BSPM | 2” BSPM | 2” BSPM | 2” BSPM |
Hose connection (mm) |
|
|
| 25 / 32 / 38 |
|
|
|
Filter intake surface (cm2) |
|
|
| 810 |
|
|
|
Max. coarse debris displacement (mm) | 8 | ||||||
Electronic adjustment |
|
|
| No |
|
|
|
Setup Type | Can be set up underwater & dry installed | ||||||
Item no. (GB-Version) | 20264 | 51098 | 51100 | 51103 | 51109 | 56710 | |
Related tech articles and downloads
Performance Data

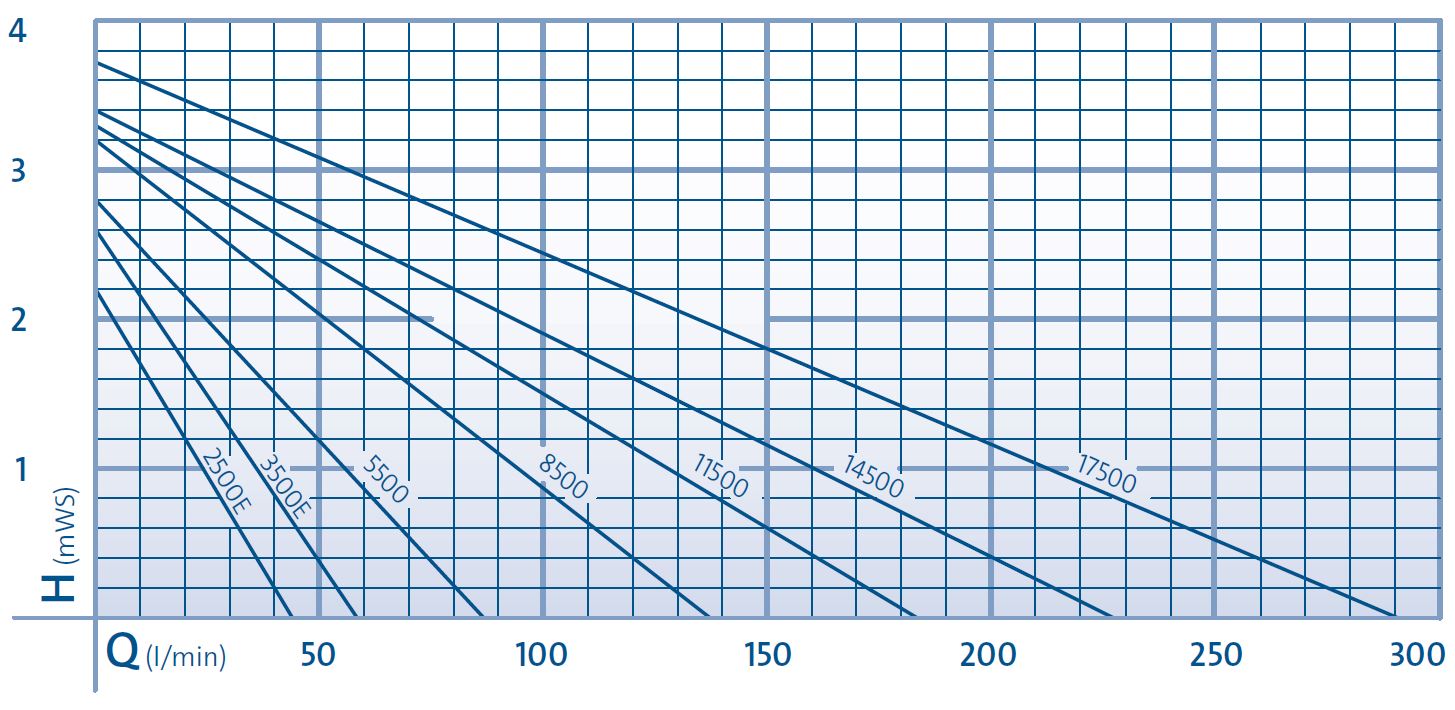

OASE AquaMax Eco Classic Pumps Performance Curve Chart.
 |
AquaMax Eco Classic 2500E |
