  • Bitron ECO 180 Pond UV Clarifier

  • The OASE Bitron ECO 180 is a highly efficient 180 Watt Ultraviolet Clarifier.  Features include:

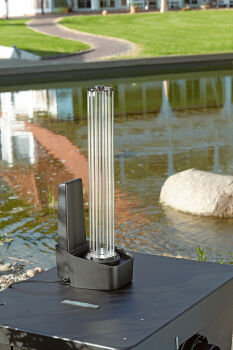

    • 3 x Ultra-efficient 60w Bulbs - up to 50% longer life span (up to 12,000 running hours).
    • Kills green algae, pathogens and flocculates for simple removal by filter.
    • Electronic UV monitoring and bulb status display with operating hours counter.
    • Digital display for water temperature monitoring.
    • The most efficient UVC of its class on the market, due to its power consumption Vs Disinfection rates.
    • Reactor Chamber has been enlarged by 30%, offering longer water saturation time.
    • Minimum pressure and flow losses, offering maximum output from the pond pump.
    • IP68 rated protection class and can be mounted horizontally or vertically.
    • Max. pond volume 180,000 litres (no fish); 90,000 litres (average fish stock e.g. goldfish); 45,000L Koi.
    Find out more
  • QTY

    £854.99 inc. VAT


    £712.49 exc. VAT

  • Pay in 3 interest free payments of £285.00

Product video

Additional Information

Technical Info

Technical Info

Bitron Eco Technical Information

Bitron ECO

Bitron ECO 120W

Bitron ECO 180W

Bitron ECO 240W

Dimensions L x W x H725mm x 227mm x 248mm
Rated Voltage220-240V / 50 / 60Hz
Power Consumption120 watts180 watts240 watts
Power Cable Length5 Metres
UVC Power120 watts180 watts240 watts
UVC Operating Hours Meter12,000 hours
Temperature DisplayDigital
Bypass ControlAutomatic
LED Function ControllerYes
Number of Inlets1
Inlet Connections1 1/2" (38mm) / 2" (50mm)
Number of Outlets1
Outlet Connections1 1/2" (38mm) / 2" (50mm)
Maximum Flow-through Rate50,000 litres per hour
Maximum Operating Pressure1 bar (10 metres)
Suitable for Ponds with No Fish120,000 litres180,000 litres240,000 litres
Suitable for Goldfish Ponds60,000 litres90,000 litres120,000 litres
Suitable for Koi Ponds30,000 litres45,000 litres60,000 litres
OASE Filter ConnectionProfiClear, BioTec, BioTec ScreenMatic
Guarantee2 + 1 (3 years total)


Bitron ECO Controller Details:

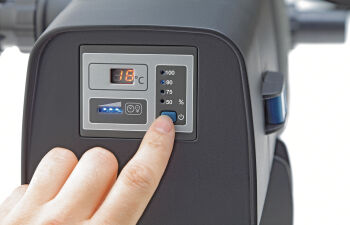

Bitron ECO Control Panel


  • 4 intensity levels can be adjusted in the control panel display enabling adjustment of the UVC power output, helping to keep running costs as low as possible.
  • UVC Lifetime Counter and Function control.
  • Display shows water temperature, UV Bulb lifetime status and systems information.
  • Button allows you to choose the ECO mode, reset the lifetime counter and switch the device on and off.
  • LED indication shows ECO mode (Green LED) & Irradiation Phase (Blue LED).
