ProfiClear Drum L Filter Module - PUMP FED
-
£4,119.99 inc. VAT
£4,862.99
£3,433.33 exc. VAT
-
ProfiClear Drum L Filter Module - PUMP FED
-
New generation, high performance rotating drum filter from OASE, the worlds leading manufacturer of Aquatic technology.
- Max. pond volume 200000 litres (no fish); 100000 ltrs (average fish stock e.g. goldfish); 45000 ltrs Koi
- A double row configuration will increase Koi pond capacity to 90000 litres
- Pump Fed Rotating Drum Filter accepts flow rates up to 25 m³/hr (25,000 l/hr)
- Intelligent command centre includes sophisticated plug & play microcontroller
- Particle removal down 60 micron (thinner than a hair) for crystal clear water
- Automatic power flush self-cleaning for minimum maintenance
- The efficient cleaning cycle uses just 1.5 litres of pond water to complete the drum cleaning operation.
- Easily select from the various cleaning programs (Automatic, Timed & manual purge functions)
To view selection charts for Proficlear filter modules, UVC and pump combinations, click on the Performance tab below.
Find out more - Watch Product Video
Description
With the Proficlear Premium Pump Fed module the filter system is installed above ground and above the pond water level. Polluted water is fed into the filter via an Aquamax ECO Twin or Premium pump. Typically, a Bitron C Ultraviolet Clarifier (UVC) will be fitted directly onto the drum filter module inlet.
- 2 x 2" BSP inlet connections plus direct connection of Oase Bitron C Ultraviolet Clarifiers
- The self cleaning, rotating drum sieves achieve outstanding filtration down to 60µm
- Pollutant rakes on the sieves effectively remove string algae and larger particles
- Integrated, high pressure pump automatically backwashes drum with clean water
- Removable sieves elements and free wheeling function for easy access to drum
- Intensive sound insulation ensures extremely quiet operation
Need HELP? Contact us for expert advice.
Product video
Additional Information
Technical Info
Performance Data
Technical Info
Proficlear Premium Pond Filters - Technical Information
- The new generation of Proficlear Premium Modular pond filters are capable of processing large bodies of water, swim ponds, ornamental, fish ponds and Koi Ponds of up to 200,000 Litres.
- Having spent over 3 years in development, Oase have released a truly ground-breaking pond filtration system specifically developed, jointly in intensive co-operation with leading European koi experts, for ornamental Koi ponds. The Proficlear Premium filters are modular in design so can be tailored to suit virtually any pond size and type.

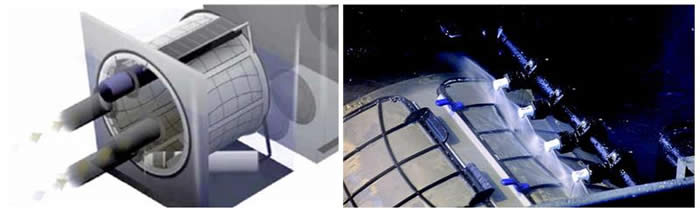

- The major innovation lies with the Drum Filter Module. The sophisticated self-cleaning drum filter will automatically separate and remove coarse debris down to 60 microns, yet handle up to 25,000 litres/hour (5,555 Gals/hr - PUMP FED) or 33,000 litres/hour (7,333 Gals/hr - GRAVITY FED) flow through. The intelligent, automated self cleaning mechanism uses high pressure water jets to periodically cleanse the stainless steel filter sieves, minimising the need to service the filter module.
- The second stage filtration utilises the Oase Proficlear Premium Moving Bed Module. Each module contains OASE Hel-X bio media, with each element featuring an extremely large biological settlement surface area. The Hel-X media effectively removes toxins such as ammonium, ammonia and nitrite. The option to connect an air pump to the supplied aerator bar will allow the entire Hel-X bio media to be circulated with optimum oxygen enrichment. Multiple Moving Bed Modules can be used to increase the specialist Koi filter capability. The Hel-X biological media in Moving Bed module can also be increased, up to 100 Litres (50 Litres supplied).
- The final stage of the filtration process uses the Oase Individual Module. This versatile module can be incorporated to house additional media such as Zeolite and Phosless (phosphate binder), should the water conditions require. The Individual Module can also be used to house AquaMax Gravity ECO Pumps and the Bitron Premium 60 watt UV Clarifiers.
- Need HELP? Contact us for expert advice
OASE Proficlear Premium Drum Filter Module | ||
The drum filter module incorporates an intelligent control centre that removes course debris, and thereby most of the nutrient matter, from the pond water before it reaches the biological filter media in the Moving Bed and Individual modules. The unique filter design with a 25m³/hr - 33m³/hr (25,000 litres/hr - 33,000 litres/hr) maximum flow rate ensures crystal clear water. The intelligent microcontroller system automatically monitors and controls the filtration process. The automatic self-cleaning function parameters can be individually adjusted to meet local conditions. The efficient automatic cleaning cycle uses just 1.5 litres of pond water to complete the drum cleaning operation. | ||
ProfiClear Premium Drum Filter | ||
Dimensions (LxWxH) mm | 830 x 600 x 820 | |
| Rated Voltage | 230V / 50Hz | |
| Power consumption Watts | 5 | |
| Power consumption (cleaning) Watts | 1050 (during short cleaning cycle only) | |
| Cable length metres | 1 (control) + 5 HP pump | |
| Nett Weight Kgs | 74 | 74.5 |
| Guarantee (+ F.O.C Request Guarantee) years | 2 (+1) | |
| Control Unit | Microcontroller | |
| Temperature Display | Yes | |
| Course Debris Extraction (microns) | 60 | |
| Number of Jet Nozzles | 4 | |
| Flush Pump | Ebara High Pressure Pump (6 bar) | |
| Flush Automation Settings | Sensor / timed interval / Manual (1.5 litre water loss per cycle) | |
| Drum Diameter mm | 516 | |
| Drum Width mm | 370 | |
| Number of Sieve Elements | 8 | |
| Filter Intake Surface cm² | 4200 | |
| Material | GRP Duroplast / Stainless Steel | |
Number of Inlets | 2 | 4 |
Connections - Inlet | 2" | DN100 |
Number of Outlets | 2 | |
Connections - Outlet | DN150 (Oase system) | |
Connections - Pollutant Discharge | DN70, DN100 | |
Connection to | Bitron C / ECO | Bitron Premium |
Pump Capacity max. m3/hr (lph) | 25 (25,000) | 33 (33,000) |
Pump Capacity min. m3/hr (lph) | 10 (10,000) | |
Install Height above water level cm | 40 | 11.5 |
Possible water level difference | 5cm | -20mm |
Type of use | Pump fed system | Gravity fed system |
Other | Pollutant (sludge) discharge includes slide valve | |
 |  |  |

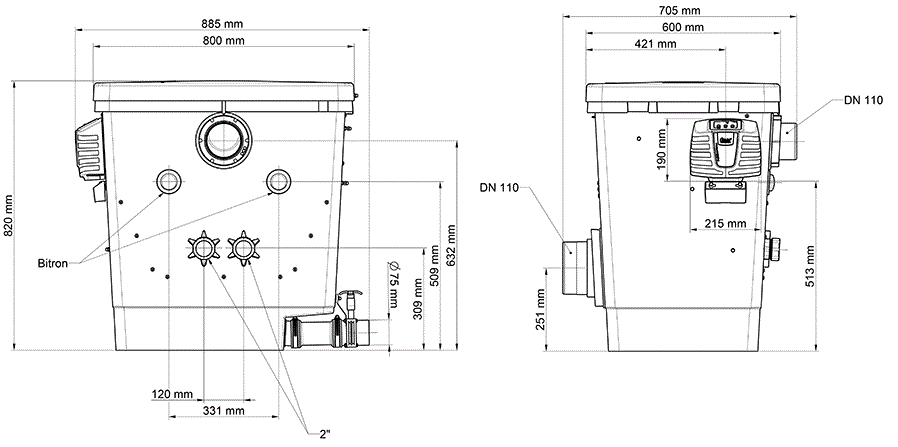

Pump Fed Drum Filter Module. 2 Inlets for direct connection of Bitron C UVC; 2 x 2" BSP inlets for indirect connection of Bitron C UVC. Top (centre) DN100 connection is waste water disposal outlet | Gravity Fed Drum Filter Module. 3 x DN100 Inlets for 100mm connection from bottom and/or side drain, and or skimmer. Top (centre) DN100 connection is waste water disposal outlet | OASE Drum Filter Pump Fed & Gravity Fed Modules. 2 x DN150 outlets for direct connection to Moving Bed / Individual Module or Proficlear Pump Fed Discharge Kit |
 |  |  |
Proficlear Pump Fed Discharge Kit. The Discharge Kit is used when the Moving Bed and Individual Modules are not required. Converts 2 x DN150 outlets to 2 x 100mm I.D. push fit outlets. | The OASE Drum Filter micro control system oversees and controls the main functions and is very easy to use. The digital display also clearly shows the pond water temperature. | With its intensive sound insulation the OASE Proficlear Premium Drum Filter works incredibly quietly. A safety cut-out switch is mounted to the filter lid to prevent the drum operating when open. |
 |  |  |
Solid stainless steel components give the OASE filter drum an extremely stable and durable housing. | Easily removable 60 micron stainless steel sieve elements (also available in 150 microns) and a free wheeling function provide easy access to the drum. | Unique, completely automatic self cleaning offers minimal maintenance. The powerful, integrated Ebara pressure pump achieves optimum cleaning of the drum seives. |
Need HELP? Contact us for expert advice
Related tech articles and downloads
Performance Data
PROFICLEAR PREMIUM: FILTER MODULE, UVC & PUMP SELECTION TABLES
The tables below give Oase's recommended filter system components for Koi Ponds, Average Fish (e.g. goldfish) Ponds and for Natural or Formal Ponds without fish stock. Pump and UVC options below are to suit either Gravity Fed OR Pump Fed installations. Should your pond be larger than the maximum covered below, or should there be other special requirements, please telephone us on 02392 373735 and we will do our best to help.
| Ponds & Lakes with Koi Carp/High Fish Stock; up to 3kg per 1m³ (= 1000 litres) | |||||||||
 | Pond volume of 1m³ =1000 litres | 15 m³ | 20 m³ | 25 m³ | 45 m³ | 60 m³ | 70 m³ | 90 m³ | |
| Drum Filter Module | Units = | 1 | 1 | 1 | 1 | 2* | 2* | 2* | |
| Moving Bed Filter Module | Units = | 1 | 1 | 1 | 2 | 3 | 3 | 4 | |
| Individual Module | Units = | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Bitron Premium 60W UVC gravity fed | Units = | 1 | 1 | 2 | 2 | 3 | 4 | 4 | |
| Aquamax Gravity Eco 10000 pump | Units = | 1 | 0 | 2 | 0 | 0 | 4 | 0 | |
| Aquamax Gravity Eco 15000 pump | Units = | 0 | 1 | 0 | 2 | 3 | 0 | 4 | |
| Bitron C 110W UVC pump fed | Units = | 1 | 1 | 2 | 2 | 3 | 4 | 4 | |
Pump fed | Aquamax Eco Premium 12000 | Units = | 1 | 0 | 2 | 0 | 0 | 4 | 0 |
Pump fed | Aquamax Eco Premium 16000 | Units = | 0 | 1 | 0 | 2 | 3 | 0 | 4 |
2* = Double Row Configuration, see below examples, operation in 2 parallel filter rows that are seperate from each other | |||||||||
This table takes into account usual flow losses within the filter modules 1m³ = 1000 litres 1m³/hr = 1000 litres per hour | |||||||||
| Pump Fed System pump selections allow 1 metre vertical lift above pond water level and 15 metres x 38mm (Aquamax Premium) or 50mm (Aquamax Twin) internal diameter hose from pump to filter. | |||||||||
Need HELP? Contact us for expert advice | |||||||||
Ponds & Lakes with average fish stock e.g. goldfish; 1kg per 1m³ (= 1000 litres) | |||||||||
 | Pond volume of 1m³ =1000 litres | 20 m³ | 30 m³ | 40 m³ | 50 m³ | 60 m³ | 80 m³ | 100 m³ | |
Drum Filter Module | Units = | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Moving Bed Filter Module | Units = | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
Individual Module | Units = | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Bitron Premium 60 Watt UVC gravity fed | Units = | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
Aquamax Gravity Eco 10000 | Units = | 1 | 1 | 0 | 0 | 2 | 0 | 0 | |
Aquamax Gravity Eco 15000 | Units = | 0 | 0 | 1 | 1 | 0 | 2 | 0 | |
Aquamax Gravity Eco 20000 | Units = | 0 | 0 | 0 | 0 | 0 | 0 | 2 | |
| Bitron C 72 Watt UVC pump fed | Units = | 1 | 1 | 0 | 0 | 2 | 0 | 0 | |
| Bitron C 110 Watt UVC pump fed | Units = | 0 | 0 | 1 | 1 | 0 | 2 | 2 | |
Pump fed | Aquamax Eco Premium 8000 | Units = | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
Pump fed | Aquamax Eco Premium 12000 | Units = | 0 | 1 | 0 | 0 | 2 | 0 | 0 |
Pump fed | Aquamax Eco Premium 16000 | Units = | 0 | 0 | 1 | 0 | 0 | 2 | 0 |
Pump fed | Aquamax Eco Twin 20000 | Units = | 0 | 0 | 0 | 1 | 0 | 0 | 2 |
This table takes into account usual flow losses within the filter modules 1m³ = 1000 litres 1m³/hr = 1000 litres per hour | |||||||||
| Pump Fed System pump selections allow 1 metre vertical lift above pond water level and 15 metres x 38mm (Aquamax Premium) or 50mm (Aquamax Twin) internal diameter hose from pump to filter. | |||||||||
Need HELP? Contact us for expert advice | |||||||||
| Natural Ponds or Lakes or Swimming Ponds (without any fish stock) | |||||||||
 | Pond volume 1m³ = 1000 litres | 40 m³ | 60 m³ | 80 m³ | 100 m³ | 120 m³ | 160 m³ | 200 m³ | |
Drum Filter Module | Units = | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Moving Bed Filter Module | Units = | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
Individual Module | Units = | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Bitron Premium 60 Watt UVC | Units = | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
Aquamax Gravity Eco 10000 | Units = | 1 | 1 | 0 | 0 | 2 | 0 | 0 | |
Aquamax Gravity Eco 15000 | Units = | 0 | 0 | 1 | 1 | 0 | 2 | 0 | |
Aquamax Gravity Eco 20000 | Units = | 0 | 0 | 0 | 0 | 0 | 0 | 2 | |
| Bitron C 72 Watt UVC pump fed | Units = | 1 | 1 | 0 | 0 | 2 | 0 | 0 | |
| Bitron C 110 Watt UVC pump fed | Units = | 0 | 0 | 1 | 1 | 0 | 2 | 2 | |
Pump fed | Aquamax Eco Premium 8000 | Units = | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
Pump fed | Aquamax Eco Premium 12000 | Units = | 0 | 1 | 0 | 0 | 2 | 0 | 0 |
Pump fed | Aquamax Eco Premium 16000 | Units = | 0 | 0 | 1 | 0 | 0 | 2 | 0 |
Pump fed | Aquamax Eco Twin 20000 | Units = | 0 | 0 | 0 | 1 | 0 | 0 | 2 |
This table takes into account usual flow losses within the filter modules 1m³ = 1000 litres 1m³/hr = 1000 litres per hour | |||||||||
| Pump Fed System pump selections allow 1 metre vertical lift above pond water level and 15 metres x 38mm (Aquamax Premium) or 50mm (Aquamax Twin) internal diameter hose from pump to filter. | |||||||||
| Need HELP? Contact us for expert advice | |||||||||
Scroll down page for additional useful information and links to Ultraviolet Clarifiers (UVC's) and Aquamax Pumps
Please note: in cases of extreme temperature variations due to shallow pond (less than 75cm) or location in continuous direct sunlight (south facing); higher friction losses due to longer hose lengths; or higher delivery heads we recommend discussing your requirements with our technical support team.
All references regarding Oase filter / UVC combinations for special pond sizes are based on Mid-European climatic conditions. For other regions they could differ due to ambient and water temperatures. Need Help? Just email or telephone on 0044 (0) 2392 373735
 Typical Proficlear Premium Gravity Fed installation: Aquamax Gravity Eco Pump and Bitron Premium 60 watt UVC in Individual Module [3] discharging clean water back to the pond |
Typical Proficlear Premium Pump Fed installation: Aquamax Eco Premium Pump in pond discharging dirty water into Bitron C UVC fitted to the inlet of the Drum Filter Module |
Set up - Gravity Fed System  | Set up - Pump Fed System  |
* Double row configuration | * Double row configuration |
Rules of thumb
| How to select the correct UVC power for your pond | ||
| Ponds without fish stock: | 1 Watt UVC power per m³ pond volume | |
| Ponds with fish stock: | 2 Watt UVC power per m³ pond volume | |
| Ponds with koi stock: | 4 Watt UVC power per m³ pond volume | |
| Click here to view Oase Ultraviolet Clarifiers (UVC's) page | ||
| How to calculate the required pump flow rate for your pond | |
| Ponds without fish stock: | Turnover capacity (in m³/hr) = pond size/ 8 |
| Ponds with fish stock: | Turnover capacity (in m³/hr) = pond size/ 4 |
| Ponds with koi stock: | Turnover capacity (in m³/hr) = pond size/ 2 |
| Example 1: A 40m³ (40,000 litres) pond without fish would require a 40/8 = 5m³/hr turnover (5000 ltr/hr) | |
| Example 2: A 40m³ (40,000 litres) pond with fish would require a 40/4 = 10m³/hr turnover (10000 ltr/hr) | |
| Example 3: A 40m³ (40,000 litres) pond with koi would require a 40/2 = 20m³/hr turnover (20000 ltr/hr) | |
| Note: A pump should be selected that can achieve the required turnover capacity at the relevant discharge head | |
| The discharge head should include the vertical lift plus friction losses through the pipe work | |
| Click here to view Oase Aquamax Filter Pumps page | |
 |
