DN100 x 2 inch BSPF Adaptor
-
- Hosetail Adaptor, DN100 to 2" BSP Female Threaded Connector
- For converting the Bitron Gravity 55 W UVC inlet and outlet connections for stand alone installations.
Find out more
Additional Information
Technical Info
Technical Info

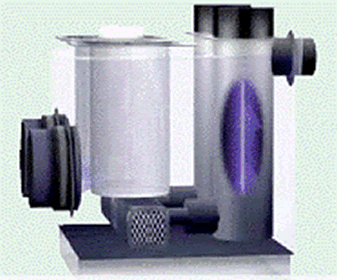

OASE Bitron Gravity 55 watt UVC Cut away view of Proficlear Premium Individual Module with Bitron Gravity 55 watt UVC installed
Oase Bitron Gravity 55 Watt UVC: Technical details | |
| Dimensions (L x W x H) | 700 x 260 x 160mm |
| Voltage | 220 - 240V / 50/60Hz |
| Cable length | 5 metres |
| Power Consumption | 55 watt |
| Minimum Flow Rate | 5000 litres/hour |
| Optimum Flow Rate (Gravity System) | 12500 litres/hour |
| Maximum Flow Rate | 30000 litres/hour |
| Maximum Operating Pressure | 0.6 bar (6 metres head) |
| Inlet Connection | DN 100 |
| Outlet Connection | DN 100 |
| Materials | Plastic and Stainless Steel |
| Suitable for ornamental ponds up to | 70m³ (70,000 litres) |
| Suitable for goldfish ponds up to | 40m³ (40,000 litres) |
| Suitable for Koi ponds up to | 25m³ (25,000 litres) |
| Nett Weight | 7.1 kgs |
| Guarantee | 2 years |
 |  |  |
2 x Bitron Gravity 55W UVC installed in a Proficlear Premium Individual Module | Extremely easy installation with stainless steel connection elements | A Hosetail Adaptor Set, DN100 / 2" & 1 1/2", is available as an optional extra |
