  • Filtoclear SET 3000 Premium

  • The OASE Filtoclear Set 3000 Premium consists of the Filtoclear 3000 pressurised Pond Filter, an integrated 9 watt UV Clarifier and the energy efficient Aquamax Eco Premium 4000 Filter Pump.  These optimally matched components guarantee crystal clear water clarity in ponds of up to 3,000 Litres (approx. 660 Gallons).

    The pressure filter can be buried up to the head section which makes the filter easy to disguise.  Water can be pumped through the Filtoclear via flexible hose and uphill to a stream or cascade if desired, or directly back to the pond via flexible hose.

    • Filtoclear 3000 Filter including Aquamax ECO Premium 4000 pump
    • Max. pond volume 3000 litres (no fish); 1500 ltrs (average fish stock e.g. goldfish)
    • Integrated 9 watt ultraviolet clarifier (UVC) with indicator light
    • Pressurised design means they are ideal for supplying clean, filtered water to higher elevations
    • Patented Easy-Clean-Technology completed in minutes for convenient and effective maintenance
    • Compact design means filter can be almost completely buried with just the lid visible
    Find out more
    • Get a free £15 Digital Gift Voucher with this product

      To be used on your next purchase with us

  • QTY

    £399.99 inc. VAT

    £333.33 exc. VAT

Description

  • Filtoclear 3000 Filter Guaranteed up to 3 years (2 years standard + 1 years free of charge on request)
  • Aquamax Eco Premium 4000 Pump Guaranteed up to 5 years (3 years standard + 2 years free of charge on request)
  • OASE Clear Water Guarantee due to mechanical-biological filtration and with modern UVC technology
  • Polluted water is pumped in to a sealed, pressurised tank where mechanical and biological cleaning takes place
  • Unique in-situ filter foam cleaning mechanism with separate rinse outlet means you can clean with pump still running
  • Pollutant level indicator and flow-through indicator
  • Set up below the pond surface water level is also possible
  • Manufactured with high-quality, impact-resistant material
  • Recommended minimum hose size 1 inch - click here to view hoses
  • The optional decorative synthetic stone rock cover will conceal Filtoclear lid from view.

Product video

Additional Information

Technical Info

Technical Info

Filtoclear model
3000
6000
12000
16000
20000
30000
Dimensions in mm (Ø x H)
380 x 310
380 x 430
380 x 510
380 x 630
380 x 750
Hose connections (Inlet / Outlet and Sludge Outlet - fitting supplied)
3/4" (19mm), 1" (25mm), 1 1/4" (32mm),
1 1/2" (38mm)
1 1/2" (38mm) / 2" (50mm)
Max Pump Capacity (litres/hour)
4000
6000
8000
10000
16000
16000
Maximum operating pressure
5 metres (0.5 bar)
Pollutant Indicator
Yes
Integral Ultraviolet Clarifier (UVC) 230 volts
9 watts
11 watts
18 watts

24 watts

36 watts

55 watts

Voltage
230 V / 50 Hz
UVC cable length
5 metres
Qty of coarse filter foams (blue)
2
3
3
4
5
5
Qty of fine filter foams (red)
1
3
2
3
4
4
Max. volume for ponds without fish
3000
6000
12000
16000
20000
30000
Max. volume for ponds with goldfish
1500
3000
6000
8000
10000
15000
Max. volume for ponds with Koi Carp
-
1500
3000
4000
5000
7500
Guarantee
Standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card.





Individual Heights & Diameters with Hosetail fittings connected:

Filtoclear 12000 & 16000

380mm Lid Ø / Height: 510mm (12000) & 630mm (16000)

Filtoclear 20000 & 30000

380mm Lid Ø / Height: 750mm



Pump Comparison Chart for the OASE Aquamax Eco Premium pump range (4000 - 16000 Litres/Hour)

Aquamax Eco Premium Pump Model400060008000100001200016000
Dimensions (mm)340 x 280 x 165mm
Max Flow Rate (litres per hour)400060008000100001200015600
Max Flow Rate (litres per minute)66100133166200260
Max Discharge Head (metres)3.23.644.755.2
Max Suction Lift (metres, if appropriate)N/A
Threaded discharge connection2" BSPM
Threaded suction connection2" BSPM
Connection for Hoses1", 1 1/4",1 1/2"1", 1 1/4",1 1/2", 2"
Solids handling capacity (mm Ø)10mm11mm
Voltage/Hz220-240V / 50Hz
Power consumption watts40w50w65w88w110w145w
Cable length (metres)10m
Installation OptionsFully submerged or dry installed (with flooded suction)
Guarantee + Request Guarantee (years)3 + 2


Aquamax Eco Premium Pump installed with secondary inlet connected to a Satellite Strainer (left) and Aquaskim 40 Skimmer (right)


Oase Aquamax Eco Premium pump water
  • Outstanding energy efficiency with extraordinary flow rates
  • Unique, Patented Frost Protection against temperatures as low as 20°C
  • Flow optimised impeller passes debris particles, such as fish waste or vegetation, of up to 11mm Ø
  • For trouble free operation we recommend connection to a Satellite Strainer or Aquaskim 40 Skimmer
  • Flow rates can be mechanically adjusted or remote, electronically speed controlled with an Oase InScenio FM Master 3
  • Environmental Function Control (EFC by Oase) protects against dry running and blocking
  • Aquamax Eco Premium pumps 12000 & 16000 Seasonal Flow Control reduces running speed in colder, Winter months. Thereby achieving additional energy savings of up to 30%

    The guarantee of 3 years can be extended by an additional 2 years free of charge on request for a total of 5 years.

Related tech articles and downloads

Performance Data

Performance Data

Oase Pressurised Filtoclear Filter Systems; OASE Filtoclear raised outlet chart

Recommended pond volumes with a raised filter outlet (e.g. watercourse) at 1 metre vertical lift and with 5 metres of 1 1/2" diameter hose between pump and outlet. Also performance with an optional OASE OxyTex Aerator Set installed.



Filter SetFilter ModelIntegrated Ultraviolet ClarifierAquamax ECO Premium Pump ModelWith OxyTex Aerator in pondRecommended Pond volume in litres
No FishAverage Fish Stock 1kg/1000 litresKoi/High Fish Stock 3kg/1000 litre
Filtoclear SET 3000
Filtoclear 3000
9 watts
Aquamax Eco 4000

3000
1500
N/A
Filtoclear SET 3000
Filtoclear 3000
9 watts
Aquamax Eco 4000
OxyTex 40035001800N/A
Filtoclear SET 6000
Filtoclear 6000
11 watts
Aquamax Eco 6000

6000
3000
N/A
Filtoclear SET 6000
Filtoclear 6000
11 watts
Aquamax Eco 6000
7000
3500
N/A
Filtoclear SET 12000
Filtoclear 12000
18 watts
Aquamax Eco 8000

12000
6000
3000
Filtoclear SET 12000
Filtoclear 12000
18 watts
Aquamax Eco 8000
14000
7000
3500
Filtoclear SET 16000
Filtoclear 16000
24 watts
Aquamax Eco 10000

16000
8000
4000
Filtoclear SET 16000
Filtoclear 16000
24 watts
Aquamax Eco 10000
19000
9500
5000
Filtoclear SET 20000
Filtoclear 20000
36 watts
Aquamax Eco 12000

20000
10000
5000
Filtoclear SET 20000
Filtoclear 20000
36 wattsAquamax Eco 12000OxyTex 2000
25000
12500
6000
Filtoclear SET 30000
Filtoclear 30000
55 watts
Aquamax Eco 16000

30000
15000
7500
Filtoclear SET 30000
Filtoclear 30000
55 wattsAquamax Eco 16000OxyTex 2000
36000
18000
9000


Pond Turnover Rates: The pond stocking levels will determine the required turnover rate which in turn determines the required pump flow rate. Typically, an ornamental pond without any fish will require the pond volume to be circulated at least once every 6 hours; an average stocked pond (with up to 1 kg of fish for every 1000 litres) will require circulating once every 4 hours; a heavily stocked pond including Koi (with up to 3 kg of fish for every 1000 litres) will require circulating once every 2 hours. Filtoclear Set pump selections allow for increased pressure drop across the filter foams as they become polluted with pond waste (see the importance of regular maintenance, below).

Pump Flow Rate: The pump flow rate, typically in litres per hour (lph) or litres per minute (lpm) is determined by the vertical lift, in metres, from the surface of the pond to the outlet pipe AND by the friction losses through the system. The narrower the pipe bore the higher the friction losses, so always use the maximum hose diameter. There will also be a friction loss caused across the filter media (foams etc), which will increase as they become polluted with pond waste.

Effect of raising the filter outlet: Raising the outlet pipe height, typically for a watercourse or waterfall, will reduce the flow rate from the pump thereby increasing the amount of time it takes to circulate the dirty pond water through the filter. This effectively reduces the maximum pond volume that the filter system can cope with and may mean you will require a larger pump. Please contact us and we would be happy to advise you.

Dissolved oxygen (DO) is a major contributor to water quality. Installing an optimally sized OASE OxyTex Aerator Set will substantially improve water quality and fish health and can improve filter performance by up to 25%. See the chart above for increases    in pond volume.

The importance of regular maintenance (cleaning): High flow rate = effective filtering. As the filter media (e.g. foams) remove dirt and waste from the pond, so the friction loss across the foams will increase, thereby reducing the flow rate and the effective performance of the filter. It is therefore essential, especially for those systems with a raised outlet, to keep the filter foams clean. Fortunately, this is extremely easy with OASE Filtoclear pond filters.

An option worth consideration.

Y Distributor

You could split the flow of clean water exiting your Filtoclear filter by utilizing a Y Distibutor, with one branch flowing directly at low level (low head = maximum flow) back to the pond; and the other branch flowing up to the top of your watercourse (high head = reduced flow). By adjusting the Y Distributor outlet valves to suit your preference you can choose to have all or partial flow going to the pond or watercourse. So typically, when there is nobody in the garden you select full maximum, low level flow back to the pond (high level valve closed), thereby achieving optimum filtration. However, when you are in the garden, you can open up the valve to the watercourse to enjoy the pleasant sound of water running down your watercourse. Note, to achieve maximum flow over the watercourse, fully close the low level valve and fully open the high level valve.

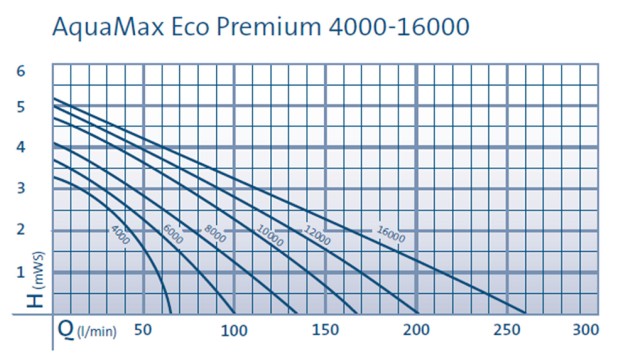

Pump Performance Curves for the OASE Aquamax Eco Premium pump range (4000 - 16000 Litres/Hour).

pump_performance_curves_aquamax_eco_premium

Aquamax ECO Premium pump performance curves. H (mWS) = Metres Head; Q (l/min) = litres per

minute 1 metre = 3ft 3"; 1 gallon = 4.5 litres





Watercourse Pump Selection Diagram for Aquamax Eco Premium Pumps.

watercourse_diagram_aquamax_eco_premium_pumps



filtoclear_aquamax_premium_set_up



The above graphic shows an OASE Filtoclear filter and Aquamax ECO Premium pump connected to a Satellite Strainer via the pump secondary inlet
