Aquamax Eco Premium Pond Pumps

OASE AquaMax Eco Premium & Twin are reliable, energy-efficient pumps for pond filter systems and streams. Explore our OASE AquaMax filter pumps today.
FilterApply

Filter results

Categories

OASE AquaMax Eco Premium pumps offer flow rates ranging between 4,000 and 19,500 litres, across 7 different pump models to cover a range of pumping requirements. AquaMax Eco Twin pumps are especially suited to higher flow pumping applications between 20,000 and 27,000 litres per hour. AquaMax Eco Premium 12 Volt Pumps 6000 and 12000 are built specifically for natural swimming ponds where low voltage is a requirement for safety.



Eco Plus

Oase AquaMax pond filter pumps are built with an energy efficient motor, which is also suitable for electronic regulation (with the exception of 12 V models), which enables the pumping power to be reduced for even greater energy saving and lower running costs. A suitable power regulator such as the Oase FM Master unit is required to electronically regulate Oase Aquamax Eco Premium pumps. This Eco Plus efficiency puts AquaMax Eco Premium up there with the best economy of power to performance figures of all pond pumps currently on the market.



Seasonal Flow Control

Oase aquamax filter pumps are primarily recommended for circulation and water processing through pond filters, but are also perfectly suitable for waterfall and stream operation, or general circulation. Another innovative feature of AquaMax Eco Premium is the seasonal flow control which is built into larger models 12000, 16000 and 20000. This function can be set at any time of the year, but will only come into effect during the colder months, automatically reducing the motor speed and power consumption of the pond pumps, reducing the rate of circulation during cold, wintry periods when high circulation rates are not necessary.





oase_aquamax_eco_twin_pump

AquaMax Eco Twin are different to AquaMax Eco Premium as Twin pumps are built using two pumping units inside a single casing, with a receiver and remote control supplied to regulate power and water flow output. AquaMax Eco Twin also feature secondary suction inlets are great the same scenarios as AquaMax Eco Premium, but only where a higher flow rate is required. With flow rates ranging from 4,000 to 27,000 litres per hour, these Oase aquamax filter pumps will cover most garden fish pond filtration scenarios. AquaMax Eco Premium can be dry installed on land and well as underwater. Aquamax Eco Twin can only be installed underwater.



AquaMax Clip

All models operate very quietly whether installed inside or outside of the pond. Oase Aquamax filter pumps have an inbuilt special run dry protection technology called environmental function control, which will shut the pump down if air is being drawn, to prevent any harm from coming to the pump if run dry without being flooded with water. Oase aquamax are built with robust strainer casings which allow for passing of organic waste particles up to 10mm/11mm in size. The case features side clips which enable the top half to be removed for easy access and maintenance.



AquaMax Underwater

Oase aquamax pond filter pumps are fully frost protected and can remained installed and operational in water temperatures as low as -20°C, meaning these pond pumps do not need to be switched off or removed from the pond in Winter. AquaMax filter pumps are manufactured by Oase in Germany to the highest standard of quality and engineering. Oase aquamax filter pumps  are among the most reliable filtration pumps around, with the longest manufacturer’s guarantees, ensuring years of service from an Oase AquaMax.



As well as the standard mains voltage pond pumps, there are also low voltage models of the AquaMax Eco Premium, models 6000 12V and 12000 12V, which operate via a 12 volt outdoor transformer. Low voltage pond pumps are good for circulating swimming ponds as these only receive 12 volts at the pump in the pond, which is a safe voltage for human access. These low voltage pond pumps are not electronically controllable.



There are a few things which set the AquaMax Eco Premium apart from other Oase Aquamax filter pumps. The running costs are unrivalled when compared with other pumps of similar specification, and the option of electronical speed regulation further reduces running costs by reducing the energy consumption, whist keeping the pump in operation at a lesser water flow output.



seasonal_flow_control_sfc_oase_aquamax

The seasonal flow control facility is unique to AquaMax Eco Premium models 12000, 16000 and 20000 and this feature automatically reduces the energy consumption up to 50% less power output in Winter, so that the running costs are kept low at this less critical time of the year. The 2nd inlet is also a feature only found on these pumps and Aquamax Eco Twin models. The innovative 2nd inlet allows suction from a second position through the connection of a satellite filter or surface skimmer to draw from pond surface or pond floor in conjunction with the main Oase AquaMax pump suction.



second_pump_inlet

Connection of a satellite filter or surface skimmer has the benefit of increasing the pond pumps area of influence, whether this be covering 2 different areas of a larger pond floor, or taking some suction from the surface of the pond, collecting leaves and reducing the floating debris that would otherwise sink to the base of the pond. The 2nd inlet is adjustable by angle and the amount of suction draw it is able to take from the main suction pump. Connection of a satellite filter or surface skimmer is done using a short length of flexible pond hose between the 2nd inlet and the suction device.



boisys_skimmer_pump_connection

The AquaMax Eco Premium pond pumps are also designed is such a way that these can be integrated into the Oase BioSys Skimmer+ as a dedicated surface skimming pump. The pond pumps inlet/outlet housing can be removed and refitted in an alternative position to change the angle of connection, allowing the Oase Aquamax pump to install neatly into the BioSys Skimmer+ chamber, beneath the skimming basket. The pond pumps outlet can be transitioned through the base of the skimmer box to return water flow back to the pond after surface skimming. The more powerful models of AquaMax Eco Premium are best equipped for connection of a satellite filter or surface skimmer in order to maximise the influence in this area.



These pond pumps have an asynchronous motor, which means an electronic power regulation accessory can be used to dim the energy efficient motor and fine tune the water flow. This is a good option to have if a specific flow rate is required, such as a stream, water cascade, or water-level critical filtration system which requires a very specific rate of water flow to enable particle settlement.



oase_fm_master_egc_cloud

Electronic regulation is a far better method of flow control than manual regulation with a ball valve, as the pump motor is actually being made to slow down, rather than run at maximum output under restriction. It is also a more accurate means of setting the right rate of water flow. This is far better for the motor, as it is not made to work as hard and will prolong its service life. The other benefit of course is that by electronically regulation, the power consumption is being controlled, so the running costs are reduced if the pump is slowed down. Oase devices such as the InScenio FM Master 3 and FM Master EGC Cloud are very good for electronic regulation by remote control or app based control on a smart device.



aquamax_eco_twin_remote

Aquamax eco twin pond pumps 20000 and 30000 come supplied with a pre-wired FM receiver and remote control, so these models can be speed regulated without the need for a separate electronic speed regulator. Most filtration pumps are ‘all-or-nothing’ when it comes to water flow, so having the ability to regulate the motor for lesser running costs without using a flow tap of ball valve is something of a novelty in this area, and a very useful facility to take advantage of. As well as regulation, this type of control also will allow the pump to be switched on and off remotely, with the set rate or water flow remaining as previously set when switched back on.



All AquaMax Eco Premium and AquaMax Eco Twin Oase aquamax filter pumps are supplied with 10 metres of power cable, hosepipe connections for various sizes of hose pipe, and stainless steel hose clips to secure the hose connections.

AquaMax Eco Premium Pumps

AquaMax Eco Premium Pumps

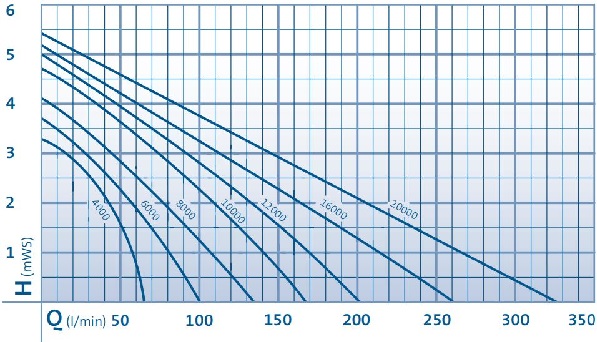

AquaMax Eco Premium Performance Curve

OASE AquaMax Eco Premium Pumps





4000

6000

8000

10000

12000

16000

20000

Dimensions

L 340mm x W 280mm x H 165mm

Voltage

220 – 240 V / 50/60Hz

Power Consumption

35 watts

45 watts

60 watts

88 watts

110 watts

145 watts

180 watts

Cable Length

10 Metres

Net Weight

5.3kg

5.4kg

6.1kg

Guarantee

3 + 2 Years (5 Years Total)

Max Flow Rate LPM

66

100

133

166

200

260

325

Max Flow Rate LPH

4000

6000

8000

10000

12000

15600

19500

Max. Head

3.3m

3.7m

4.1m

4.7m

5.0m

5.2m

5.4m

Thread Size Inlet

2” BSP Male Thread

Thread Size Outlet

2” BSP Male Thread

Hose Pipe Sizes “

1”,   1 ¼”,   1 ½”

1”,   1 ¼”,   1 ½”,  2”

Hose Pipe Sizes mm

25mm,  32mm, 38mm

25mm, 32mm, 38mm, 50mm

Filter Surface Area

1000cm²

Solids Passing Size

10mm

11mm

Electronic Control

Yes

Setup Type

Can be installed underwater or outside of the pond dry (flooded suction).

Part Number (GB)

50735

50739

50741

51085

50743

50746

56409


OASE AquaMax Eco Premium pumps offer high performance and outstanding energy efficiency, making these pumps ideal for continuous operation. AquaMax Eco Premium pumps are perfect for the supply of water to filter systems on fish ponds, and also for circulation of water down streams and watercourses. There are 7 standard models, with flow rates ranging between 4,000 and 20,000 litres per hour. AquaMax Eco Premium pumps have a large outer surface area and can handle 10-11mm particles. Environmental Function Control protects the pump from dry-running. Seasonal Flow Control (models 12000-16000-20000) enables the option of automatic reduction in power over Winter. The secondary suction inlet (all models) enables a second suction device (skimmer or satellite filter) to be connected and run alongside the primary pond floor suction. These pumps are supplied with a 10 metre power cable and carry extended OASE guarantees.

AquaMax Eco Premium 12 Volt Pumps

AquaMax Eco Premium 12 Volt Pumps

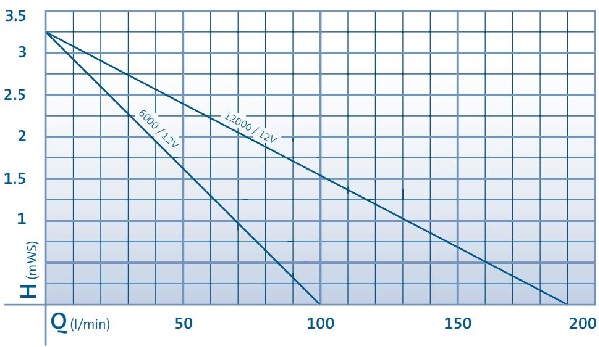

AquaMax Eco Premium 12V Performance Curve

OASE AquaMax Eco Premium 12 Volt Pumps





6000

12000

Dimensions

L 340mm x W 280mm x H 165mm

Voltage Primary

230 V / 50Hz

Voltage Secondary

12 V DC

Power Consumption

55 watts

100 watts

Cable Length

2.50 Metres (Transformer) + 8 Metres (Pump)

Net Weight

8.7kg

10.6kg

Guarantee

3 + 2 Years (5 Years Total)

Max Flow Rate LPM

100

190

Max Flow Rate LPH

6000

11400

Max. Head

3.2m

Thread Size Inlet

2” BSP Male Thread

Thread Size Outlet

2” BSP Male Thread

Hose Pipe Sizes “

1”,   1 ¼”,   1 ½”

1”,   1 ¼”,   1 ½”,  2”

Hose Pipe Sizes mm

25mm, 32mm, 38mm

25mm, 32mm, 38mm, 50mm

Filter Surface Area

1000cm²

Solids Passing Size

10mm

11mm

Electronic Control

No

Setup Type

Can be installed underwater or outside of the pond dry (flooded suction).

Part Number

50730

50382


OASE AquaMax Eco Premium 12 Volt pumps are a low voltage alternative to the standard AquaMax Eco Premium pumps. These efficient, low voltage pumping units follow the same physical design as the standard AquaMax Eco Premium pump version, but are safe for circulation of swimming ponds, where mains voltage is to be avoided. There are 2 models of AquaMax Eco Premium 12 Volt pump available; a 6,000 litre per hour model, and a more powerful 12,000 litre per hour pump. The 12 Volt pumps feature the same SFC dry run protection and secondary suction facility as the standard versions do. AquaMax Eco Premium 12 Volt pumps are powered via a weatherproof transformer with a 2.5 metre mains cable and an 8 metre low voltage cable. These pumps can be submerged underwater or installed dry below water surface level. 3 + 2 year OASE extended guarantee on both 12 Volt pump models.

AquaMax Eco Twin Pumps

AquaMax Eco Twin Pumps

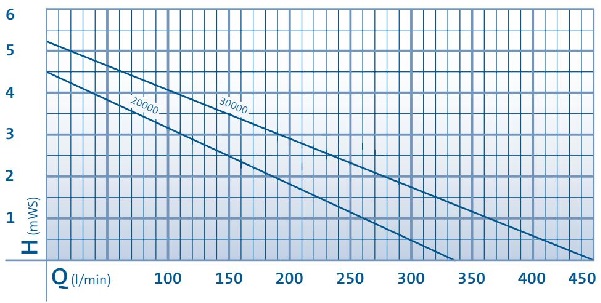

AquaMax Eco Twin Performance Curve

OASE AquaMax Eco Twin Pumps





20000

30000

Dimensions

L 380mm x W 360mm x H 205mm

Voltage

220 – 240 V / 50/60Hz

Power Consumption

20 – 198 watts

20 – 320 watts

Cable Length

10 Metres

Net Weight

11kg

Guarantee

3 + 2 Years (5 Years Total)

Max Flow Rate LPM

333

450

Max Flow Rate LPH

20000

27000

Max. Head

4.5m

5.2m

Thread Size Inlet

2” BSP Male Thread

Thread Size Outlet

2” BSP Male Thread

Hose Pipe Sizes “

1”,   1 ¼”,   1 ½”,  2”

Hose Pipe Sizes mm

25mm, 32mm, 38mm, 50mm

Filter Surface Area

1300cm²

Solids Passing Size

11mm

Electronic Control

Yes

Setup Type

Can only be installed underwater.

Part Number

50708

50710



OASE AquaMax Eco Twin pumps are large, high flow, submersible pumping units for pond filters and streams. AquaMax Eco Twin Pumps combine the output of 2 AquaMax Eco Premium Pumps into a single more powerful pumping system. There are 2 AquaMax Eco Twin pumps available, outputting 20,000 and 30,000 litre per hour respectively. AquaMax Eco Twin pumps are supplied with an inline, stake-mounted FM receiver and a key-fob remote control. The remote control can be used to switch the 2 motors on and off individually, and to regulate flow output of each motor and thus the overall flow rate from the unit. A digital display on the receiver shows the set incremental flow amount. The AquaMax Eco Twin pumps have a secondary suction inlet for connecting a skimmer or satellite strainer. These pumps are supplied with 10 metres of cable between the pump and the receiver, and an additional 1 metre of cable for connecting the receiver to a power supply. SFC dry-run protection integrated and OASE Extended Guarantee on both pump models.
