The OASE FiltoClear SET 13000 is a pressurised filter and submersible filter pump set for ornamental garden ponds and Goldfish ponds.
The FiltoClear 13000 is fitted with 3 grades of filter foam media for mechanical and biological filtration. The filter foams are cleaned by simply pulling the top handle up to squeeze the foams, and redirecting the outlet flow via the cleaning valve to pump the dirty water out of the system. The filter has an integral 24 watt UV lamp, which can be replaced easily without the need to switch off the pump.

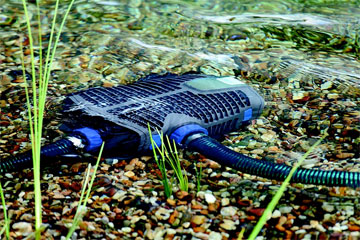

The supplied AquaMax Eco Premium 9000 pump provides the optimal flow rate through the filter and uses very little power at only 60 watts maximum, and the Seasonal Flow Control feature can be used to reduce power usage in Winter.
The FiltoClear 13000 can be partially buried in ground and the return pipe can be elevated above the level of the filter to provide flow to a stream or water fall return to the pond. The optional FiltoCap Stone Grey Rock Cover can be used to disguise the head of filter.
Requires Flexible Hose Pipe and will fit sizes 1 ½” (38mm) and 2” (50mm).
Filtoclear model | ||||||
Dimensions in mm (Ø x H) | 380 x 370 | 380 x 488 | 380 x 608 | 380 x 728 | ||
Hose connections (Inlet / Outlet and Sludge Outlet - fitting supplied) | 1 1/2" (38mm) / 2" (50mm) | |||||
Max Pump Capacity (litres/hour) | 5000 | 9000 | 13000 | 17000 | ||
Maximum operating pressure | 5 metres (0.5 bar) | |||||
Pollutant Indicator | Yes | |||||
Integral Ultraviolet Clarifier (UVC) 230 volts | 18 watts | 24 watts | 42 watts | 60 watts | ||
Voltage | 230 V / 50 Hz | |||||
UVC cable length | 5 metres | |||||
Qty of coarse filter foams (blue) | - | 1 | 2 | 2 | ||
Qty of medium filter foams (purple) | 1 | 1 | 1 | 1 | ||
Qty of fine filter foams (red) | 1 | 1 | 1 | 2 | ||
Max. volume for ponds without fish | 5000 L | 13000 L | 19000 L | 31000 L | ||
Max. volume for ponds with goldfish | 2500 L | 7000 L | 10000 L | 15000 L | ||
Max. volume for ponds with Koi Carp | - | - | 5000 L | 7500 L | ||
Supplied Pump (FiltoClear SETS only) | AquaMax Eco Premium 5000 | AquaMax Eco Premium 9000 | AquaMax Eco Premium 13000 | AquaMax Eco Premium 17000 | ||
Guarantee | Standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card. |
Pump Comparison Chart for the OASE Aquamax Eco Premium pump range (4000 - 17000 Litres/Hour)
Aquamax Eco Premium Pump Model | 5000 | 9000 | 13000 | 17000 |
Dimensions (mm) | 340 x 280 x 165mm | |||
Max Flow Rate (litres per hour) | 5000 | 9000 | 13000 | 17000 |
Max Flow Rate (litres per minute) | 83 | 150 | 216 | 283 |
Max Discharge Head (metres) | 3.5 | 4.5 | 5 | 5.5 |
Max Suction Lift (metres, if appropriate) | N/A | |||
Threaded discharge connection | 2" BSPM | |||
Threaded suction connection | 2" BSPM | |||
Connection for Hoses | 1", 1 1/4",1 1/2", 2" | |||
Solids handling capacity (mm Ø) | 11mm | |||
Voltage/Hz | 220-240V / 50Hz | |||
Power consumption watts | 35w | 60w | 100w | 140w |
Cable length (metres) | 10m | |||
Installation Options | Fully submerged or dry installed (with flooded suction) | |||
Guarantee + Request Guarantee (years) | 3 + 2 |
Aquamax Eco Premium Pump installed with secondary inlet connected to a Satellite Strainer (left) and Aquaskim 40 Skimmer (right)
