Fountain 7500 & RGB Light Set
-
£769.19 inc. VAT
£640.99 exc. VAT
-

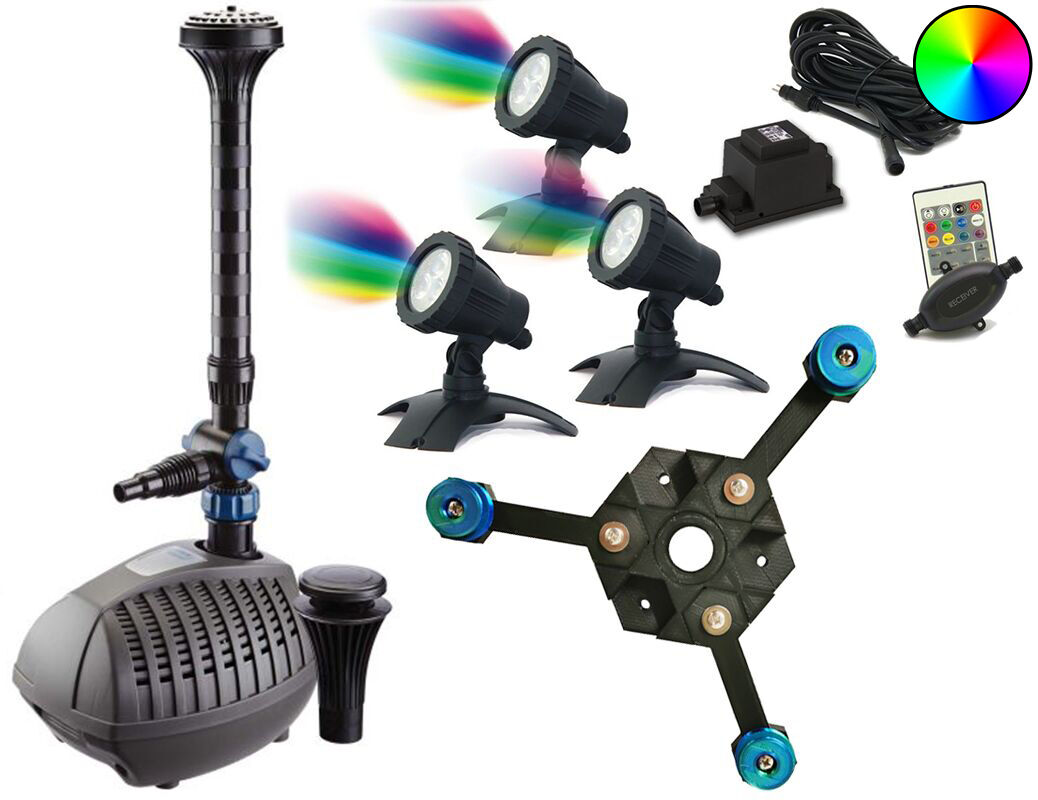

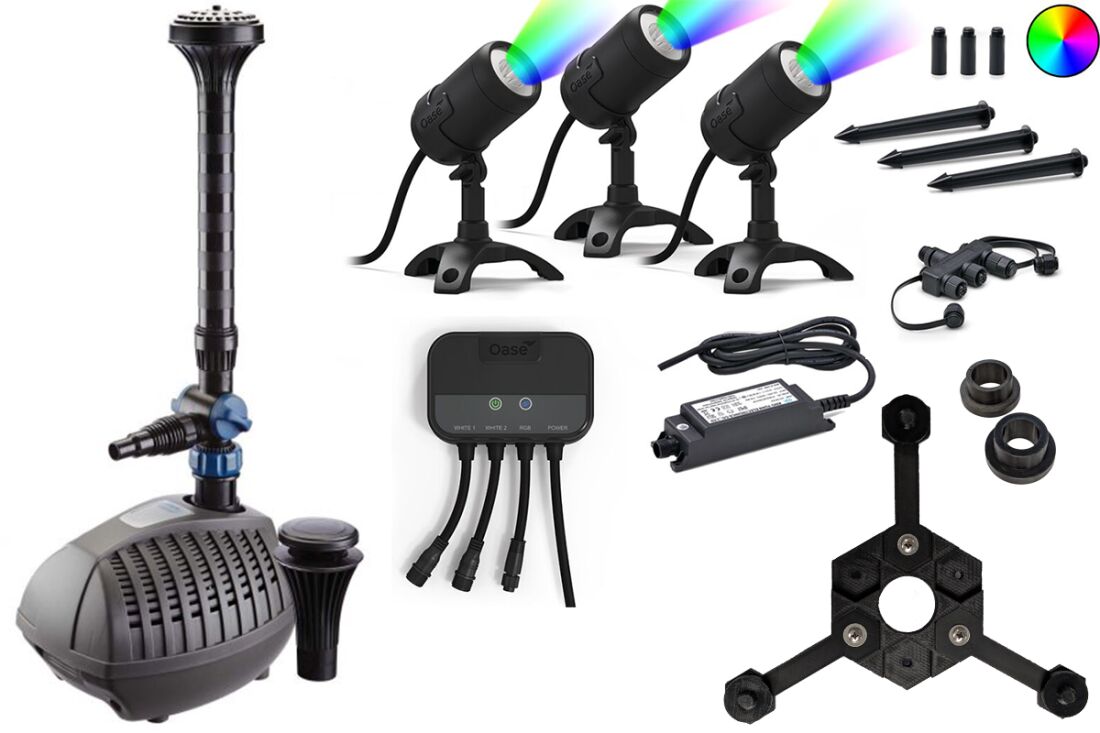

Fountain 7500 & RGB Light Set
-
The Fountain 7500 & RGB Light Set allows you to create a stunning illuminated water display in ponds or as part of a garden water feature.
The 7500 Litre/Hour OASE Aquarius fountain pump is supplied with two different types of decorative nozzle attachments to offer either a water bell or multiple water jet display. The kit includes a set of 3 RGB LED spotlights which can be attached to the supplied support bracket and submersed underwater for wonderful illumination of the fountain display.
The OASE Aquarius Fountain Pump is fitted with a 2 way flow adjuster to allow control of the fountain display height. The kit also includes a telescopic riser pipe to cater for various pond depths.
Display sizes with supplied nozzles:
- Lava Water Bell Nozzle - Max. 90cm Diameter.
- Vulcan Multi-Jet Nozzle - Max. 2.75m Jet Height / Max. 2.4m Diameter.
Optional Nozzles (not supplied):
- 32mm Bore Foam Jet Nozzle: Max. 0.75m Jet Height.
- Diamond Jet Nozzle - 15 Water Jets: Max. 0.75m Jet Height.
Description

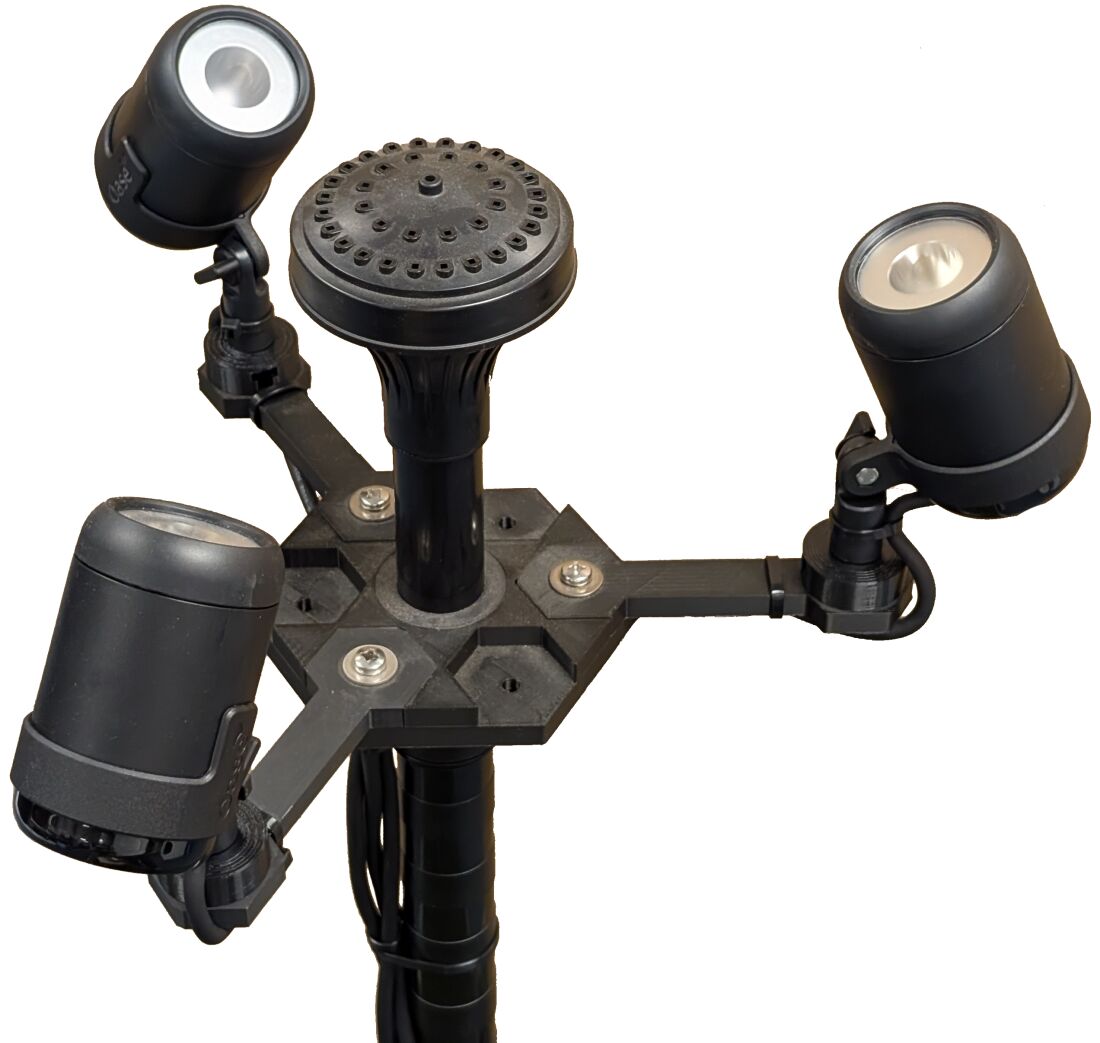

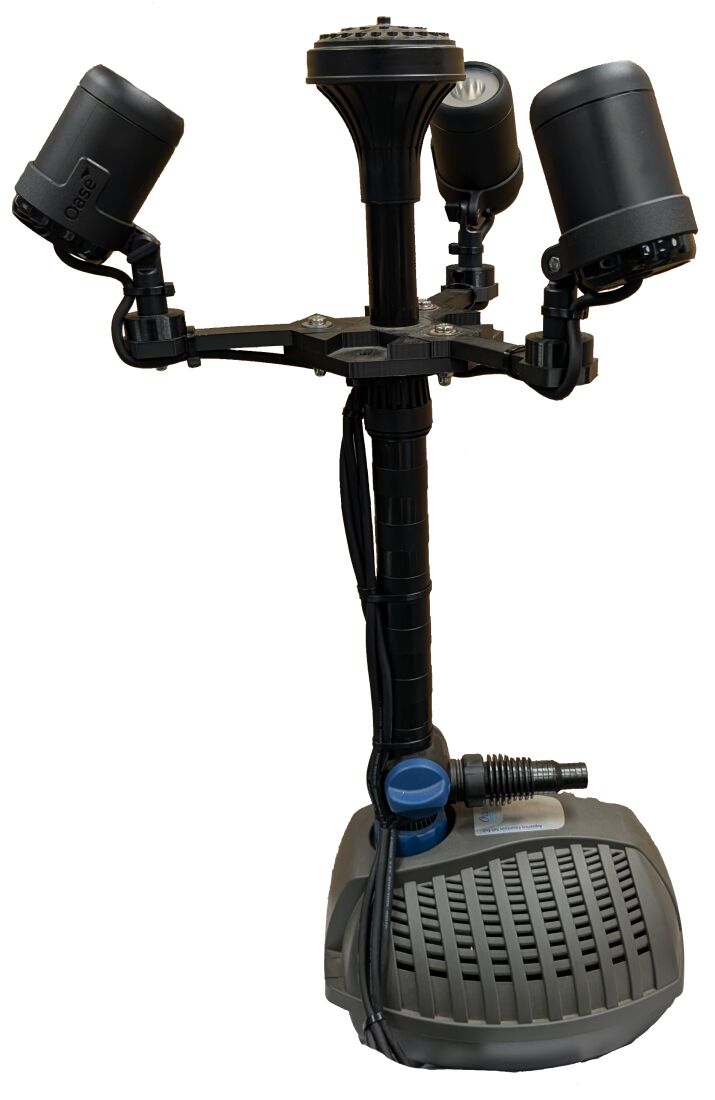

Our Spotlight Support Bracket can be positioned in 2 ways that give you the flexibility to position the spotlights at the level you need:
| Upper | Lower | |
| Spotlight Bracket Position |  |  |
Additional Information
Technical Info
Performance Data
Technical Info
Fountain and Light Sets Technical Information
| Aquarius Fountain Set Model | 5500 | 7500 | 9500 |
| Max Flow Rate (litres per minute) | 91 | 125 | 158 |
| Max Discharge Head (metres) | 3.8 | 4.0 | 5.2 |
| Discharge connection | 1" BSP with 1" Telescopic Nozzle Extension | ||
| Rec. watercourse discharge hose (int Ø) | 3/4" / 1" / 1 1/4" / 1 1/2" / 19mm / 25mm / 32mm / 38mm | ||
| Solids handling capacity (mm Ø) | Clean water applications only | ||
| Voltage/Hz | 230v / 50Hz | ||
| Power consumption (watts) | 70w | 85w | 125w |
| Cable length (metres) | 10m | 10m | 10m |
| Dimensions (mm) | 290 x 230 x 180 | ||
| Weight (kgs) | 4.9 | 4.9 | 5.8 |
| Guarantee (+ Request Guarantee) years | 3 + 2 | ||

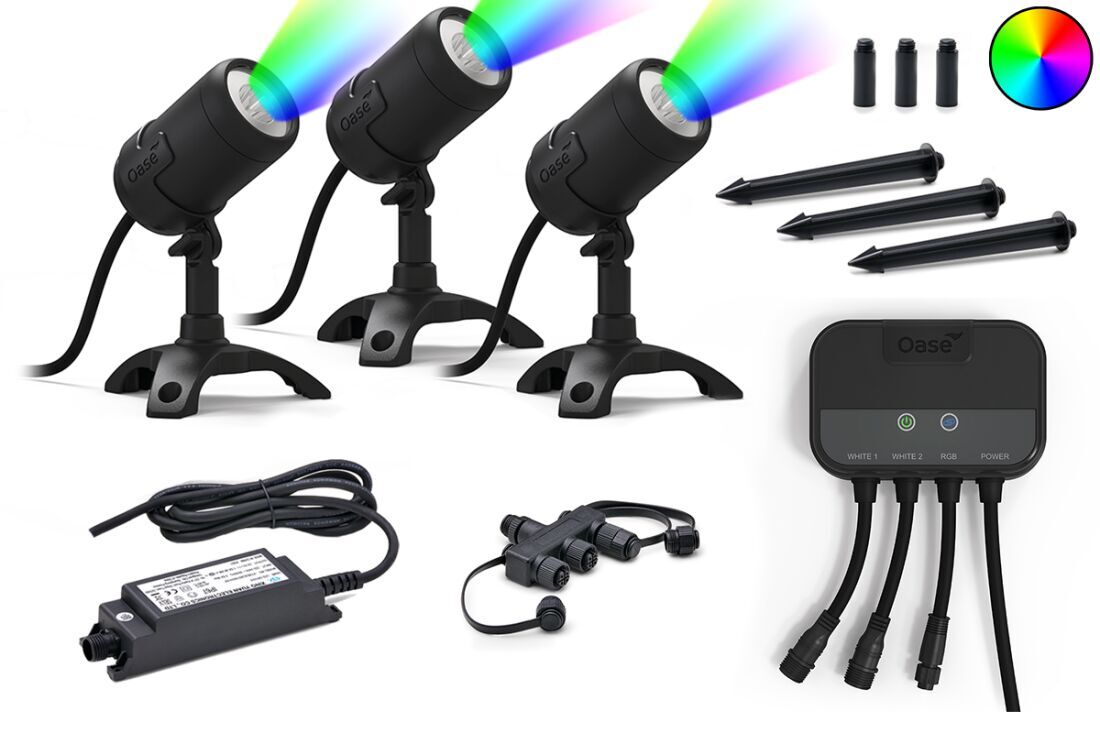

| PondMax Light Set | RGB Set 3 | Warm White Set 3 |
| Spotlight Dimensions | Ø77mm x H83mm | |
| Rated Voltage (Spotlight) | 12V | |
| Rated Voltage (Transformer) | 220-240V AC | |
| Power Consumption (Per Spotlight) | 5.5 watts | 4.2 watts |
| Max. Power Consumption (Set) | 16.5 watts | 12.6 watts |
| Protection Class (Transformer) | IP 44 (Weatherproof) | |
| Protection Class (Spotlight) | IP 68 (Fully Submersible) | |
| Illuminant Type | RGB LED (Red, Green, Blue) | Warm White |
| Number of LEDs per Spotlight | 3 | |
| LED Colour | RGB | White |
| Cable Length (Spotlight) | 5 Metres | |
| Cable Length (Transformer) | 2 Metres | |
| Cable Length (Transformer to Controller) | 1 Metre | - |
| Remote Control Range | 10 metres (approx.) | - |
| Guarantee | Spotlight: 2 Years / Transformer: 1 Year | |
| Part Number | PMRGB3 | PMWW3 |
PondMax Warm White LED Set 3 Connection Diagram
PondMax RGB LED Spotlight Set 3 Connection Diagram
Performance Data
Pump Performance Curves for the OASE Aquarius Fountain Set range (1000 - 3500 Litres/Hour)
Aquarius Fountain Set pump performance curves. H (mWS) = Metres Head; Q (l/min) = litres per minute
1 metre = 3ft 3"; 1 gallon = 4.5 litres
The Aquarius Fountain Sets 5500 - 9500 are supplied with 2 different fountain nozzles. The chart below gives the fountain pattern dimensions for each pump and nozzle combination |  |  | ||
Vulkan Nozzle | Lava Nozzle | |||
Ø cm | Height cm | Ø cm | Height cm | |
| Aquarius Fountain Set 5500 | 155 | 220 | 90 | - |
| Aquarius Fountain Set 7500 | 240 | 275 | 90 | - |
| Aquarius Fountain Set 9500 | 275 | 335 | 90 | - |
 |
Fountain 7500 & RGB Light Set |
