Fountain 9500 & LED Light Set
-
£775.99 inc. VAT
£646.66 exc. VAT
-

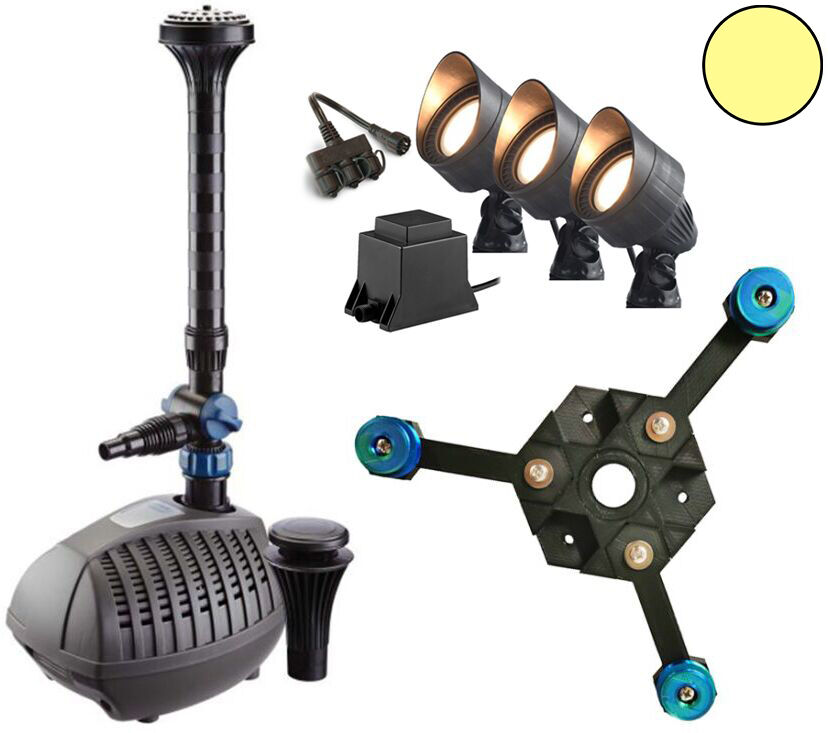

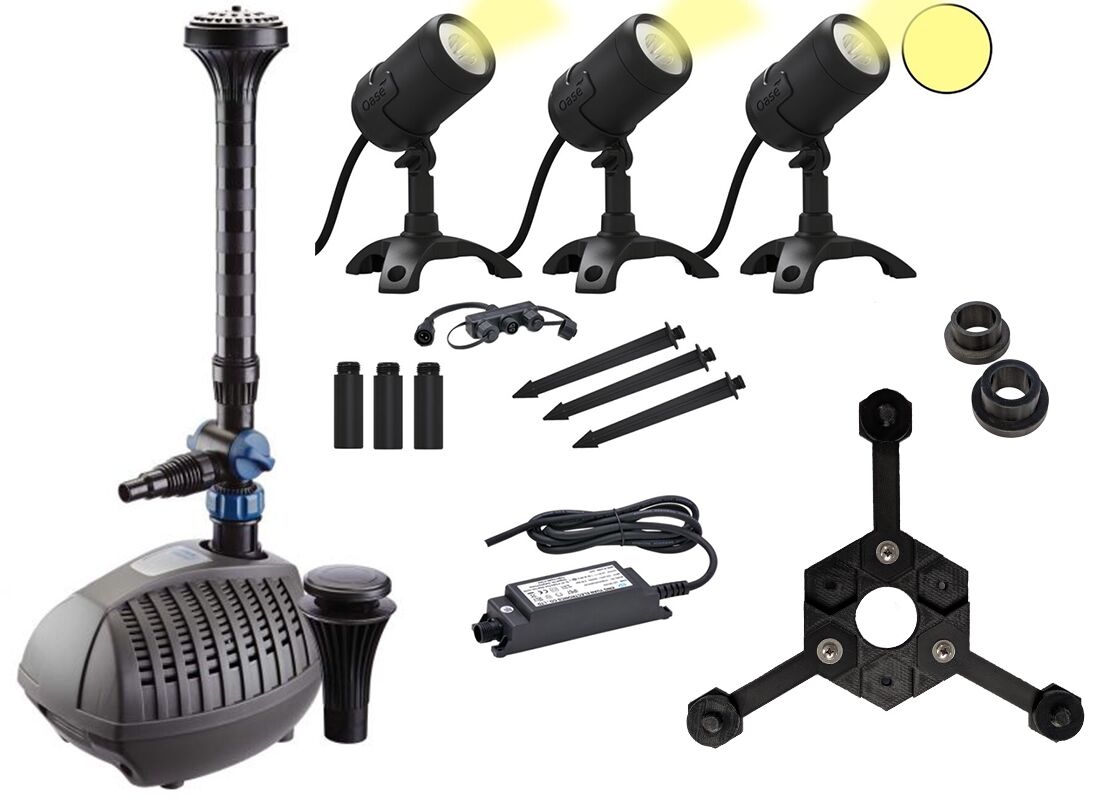

Fountain 9500 & LED Light Set
-
The Fountain 9500 & LED Light Set allows you to create a stunning illuminated water display in ponds or as part of a garden water feature.

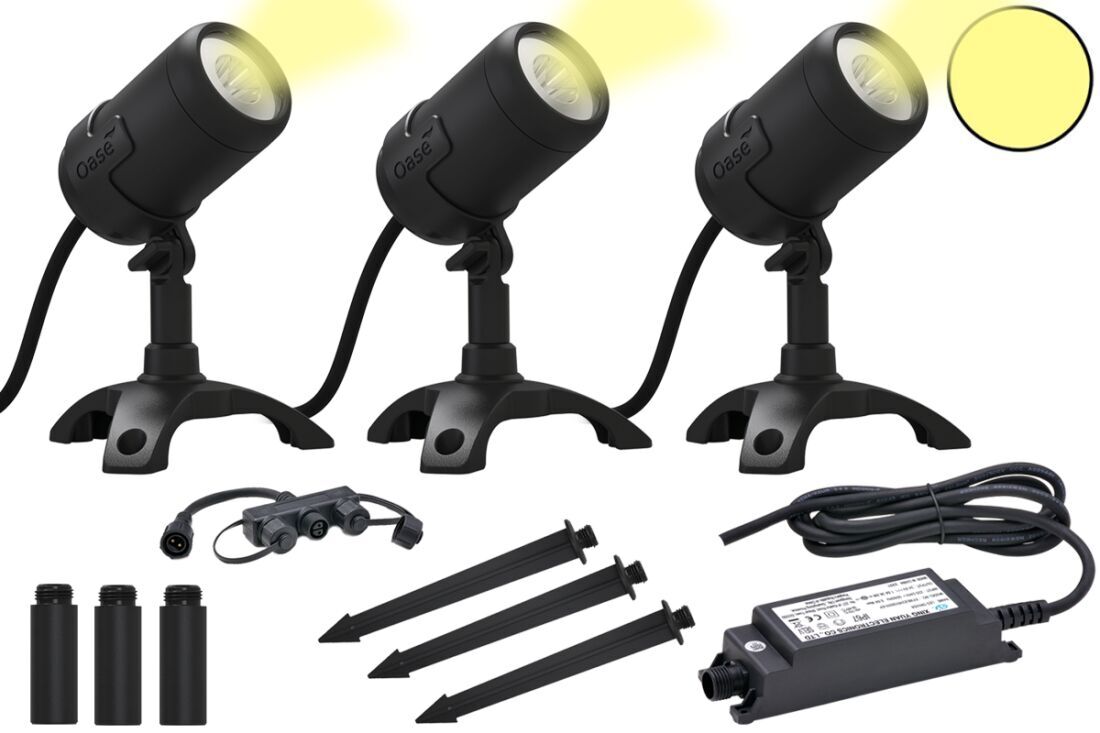

The 9500 Litre/Hour OASE Aquarius fountain pump is supplied with two different types of decorative nozzle attachments to offer either a water bell or multiple water jet display. The kit includes a set of 3 Warm White LED spotlights which can be attached to the supplied support bracket and submersed underwater for wonderful illumination of the fountain display.
The OASE Aquarius Fountain Pump is fitted with a 2 way flow adjuster to allow control of the fountain display height. The kit also includes a telescopic riser pipe to cater for various pond depths.
Display sizes with supplied nozzles:
- Lava Water Bell Nozzle - Max. 90cm Diameter.
- Vulcan Multi-Jet Nozzle - Max. 3.35m Jet Height / Max. 2.75m Diameter.
Optional Nozzles (not supplied):
- 32mm Bore Foam Jet Nozzle: Max. 1m Jet Height.
- Diamond Jet Nozzle - 15 Water Jets: Max. 1m Jet Height.
Description

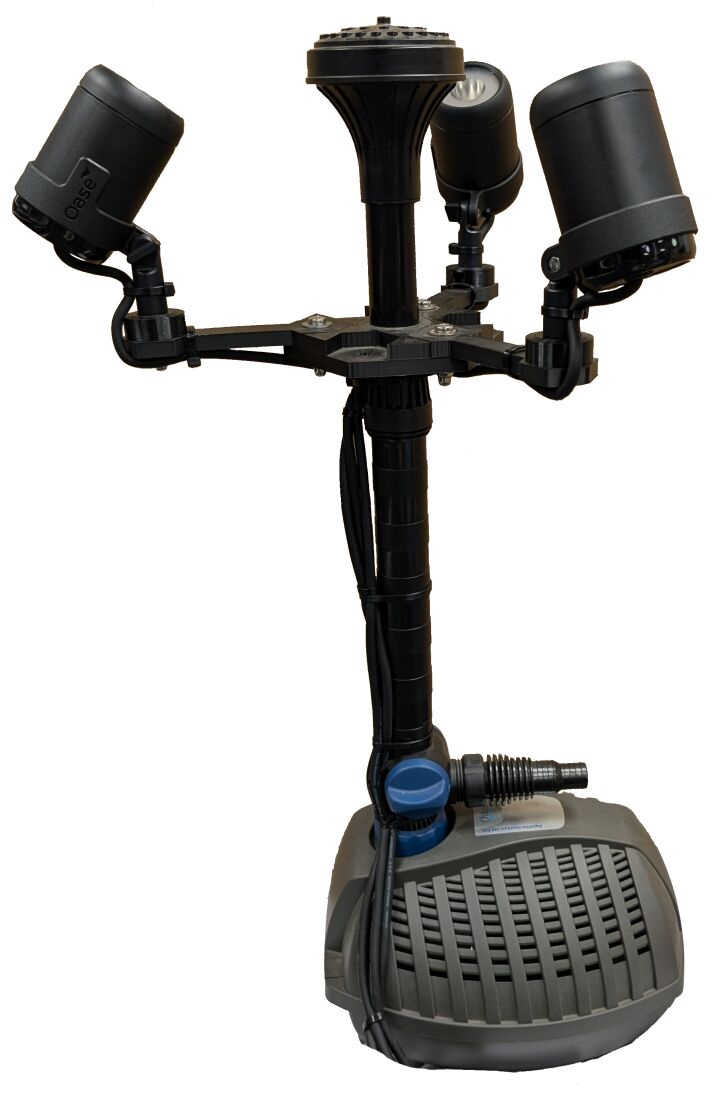

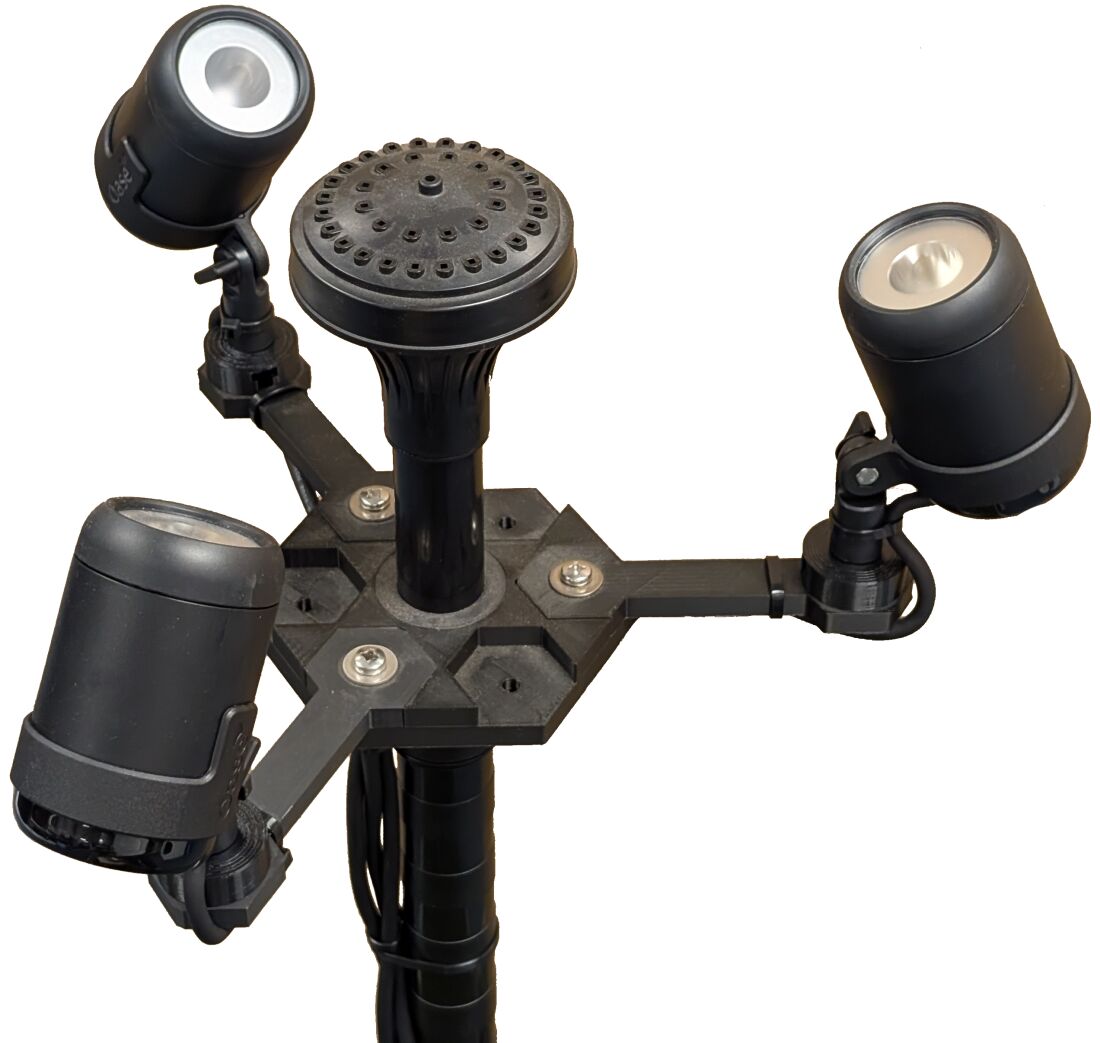

Our Spotlight Support Bracket can be positioned in 2 ways that give you the flexibility to position the spotlights at the level you need:
| Upper | Lower | |
| Spotlight Bracket Position |  |  |
Additional Information
Technical Info
Performance Data
Technical Info
Fountain and Light Sets Technical Information
| Aquarius Fountain Set Model | 5500 | 7500 | 9500 |
| Max Flow Rate (litres per minute) | 91 | 125 | 158 |
| Max Discharge Head (metres) | 3.8 | 4.0 | 5.2 |
| Discharge connection | 1" BSP with 1" Telescopic Nozzle Extension | ||
| Rec. watercourse discharge hose (int Ø) | 3/4" / 1" / 1 1/4" / 1 1/2" / 19mm / 25mm / 32mm / 38mm | ||
| Solids handling capacity (mm Ø) | Clean water applications only | ||
| Voltage/Hz | 230v / 50Hz | ||
| Power consumption (watts) | 70w | 85w | 125w |
| Cable length (metres) | 10m | 10m | 10m |
| Dimensions (mm) | 290 x 230 x 180 | ||
| Weight (kgs) | 4.9 | 4.9 | 5.8 |
| Guarantee (+ Request Guarantee) years | 3 + 2 | ||
| PondMax Light Set | RGB Set 3 | Warm White Set 3 |
| Spotlight Dimensions | Ø77mm x H83mm | |
| Rated Voltage (Spotlight) | 12V | |
| Rated Voltage (Transformer) | 220-240V AC | |
| Power Consumption (Per Spotlight) | 5.5 watts | 4.2 watts |
| Max. Power Consumption (Set) | 16.5 watts | 12.6 watts |
| Protection Class (Transformer) | IP 44 (Weatherproof) | |
| Protection Class (Spotlight) | IP 68 (Fully Submersible) | |
| Illuminant Type | RGB LED (Red, Green, Blue) | Warm White |
| Number of LEDs per Spotlight | 3 | |
| LED Colour | RGB | White |
| Cable Length (Spotlight) | 5 Metres | |
| Cable Length (Transformer) | 2 Metres | |
| Cable Length (Transformer to Controller) | 1 Metre | - |
| Remote Control Range | 10 metres (approx.) | - |
| Guarantee | Spotlight: 2 Years / Transformer: 1 Year | |
| Part Number | PMRGB3 | PMWW3 |

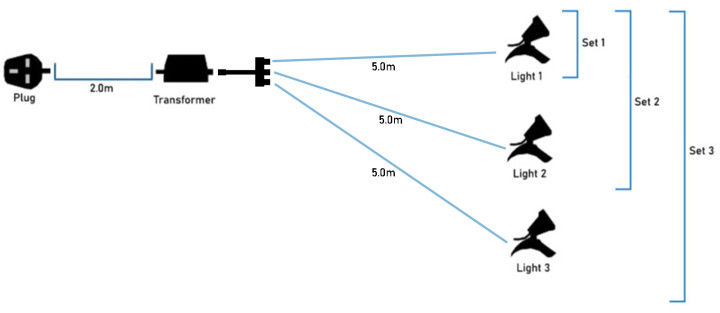

PondMax Warm White LED Set 3 Connection Diagram
PondMax RGB LED Spotlight Set 3 Connection Diagram
Performance Data
Pump Performance Curves for the OASE Aquarius Fountain Set range (1000 - 3500 Litres/Hour)
Aquarius Fountain Set pump performance curves. H (mWS) = Metres Head; Q (l/min) = litres per minute
1 metre = 3ft 3"; 1 gallon = 4.5 litres
The Aquarius Fountain Sets 5500 - 9500 are supplied with 2 different fountain nozzles. The chart below gives the fountain pattern dimensions for each pump and nozzle combination |  |  | ||
Vulkan Nozzle | Lava Nozzle | |||
Ø cm | Height cm | Ø cm | Height cm | |
| Aquarius Fountain Set 5500 | 155 | 220 | 90 | - |
| Aquarius Fountain Set 7500 | 240 | 275 | 90 | - |
| Aquarius Fountain Set 9500 | 275 | 335 | 90 | - |
 |
Fountain 9500 & LED Light Set |
| Buy it now |
