Proficlear Premium Set 200000

Price: £12,171.93 inc. VAT

Price: £10,143.28 exc. VAT

Buy now

Need advice on this product?

Speak to one of our experts today 02392 373735

Proficlear Premium Set 200000

QTY
- -
- +
Price: £12,171.93 inc. VAT

Price: £10,143.28 exc. VAT

Add to Cart

Pay in 3 interest free payments of £4,057.31

The latest generation of the OASE Proficlear Drum and Moving Bed Filtration, Bitron UV Clarifier, Aquamax Eco Expert Pump and AP Aeration technology is combined to produce effective and efficient particle removal and high intensity treatment of suspended algae and pathogens in ponds or lakes, thereby achieving ultimate water clarity and health. Water Garden UK has carefully matched components to achieve the optimum pond and lake water cleaning system for a variety of pond volumes.
The Proficlear Premium Filter Set 200000 is suitable for the following pond sizes:
- Ornamental/wildlife ponds up to 200,000 litres (with no fish stock).
- Goldfish ponds up to 100,000 litres (fish stock of up to 1kg per 1000 litres).
- Koi Carp ponds up to 50,000 litres (fish stock of up to 2kg per 1000 litres).
Find out more
Watch Product Video

Need advice on this product?

Speak to one of our experts today 02392 373735

Additional Information

Technical Info
Performance Data

Technical Info

Oase Proficlear Premium Set 200000

OASE Aquamax Eco Expert 26000 Filter Pump transports coarse debris up to 11mm Ø and features an extremely energy efficient motor to achieve optimum flow with minimum power consumption. The submersed pump is then usually connected to the Bitron ECO 240 UV Clarifier using 2" internal diameter Flexible Hose. The Eco Expert 26000 pump is also capable of dry mounting in a flooded suction scenario if preferred.

The OASE Bitron ECO 240 Ultraviolet Clarifier provides 240 watts of concentrated UV radiation that effectively kills suspended algae, harmful bacteria and germs which are then delivered to the;

OASE Proficlear Premium (Pump Fed) Drum Filter Module is the vital core of the system with deep bed filtration that removes coarse debris particles down to 60 microns and ensures crystal clear water. Pollutant rakes on the filter sieves remove string algae and large particles from the rotating drum. A powerful integral high pressure pump automatically cleans and flushes the sludge to the waste outlet. An intelligent microcontroller monitors and controls the Drum Filter's adjustable main functions. The mechanically processed pond water is then passed to the;

OASE Proficlear Premium Moving Bed Modules are each supplied with 100 litres of Hel-X biomedia, which will populate with beneficial micro-organisms for effective biological nutrient reduction and removal of toxins such as ammonium/ammonia and nitrite. The built in aerator bar provides beneficial oxygen enrichment and circulation when connected to the supplied AP4800 Air Pump.

OASE Proficlear Premium Individual Module is the final system module and is used to maintain a sufficient water level in the system and house extra UV's when required. The Individual Module can also be used for adding (if required) filter media such as Zeolite or Phosless (phosphate binder), fish medications and specific water treatments.

Key ProfiClear Premium Filter Features

Rotary Drum

proficlear_premium_rotary_drum

The large rotating drum provides the first stage mechanical filtration screening out solid waste down to 60 microns through 8 removable fine mesh sieve screens. The drum can be timer operated or will clean automatically using the integral water level sensor in the filter box to detect accumulative waste blockage on the sieves.

Cleaning System

proficlear_premium_cleaning_spray

Powerful cleaning pump sprays high pressure water jets over drum sieves, only during the cleaning cycles, which releases accumulated waste to be flushed out of the filter via the waste outlet on the front. The four spray nozzles are offset from one another to cover more sieve surface area/width and jet angles can be adjusted as required.

hel-x_13_biological_filter_media

Hel-X 13 BioMedia

Advanced Hel-X 13 particle biomedia with huge surface area maximises bacterial nitrification in second stage moving bed filtration chamber. With increased surface area of 13% over original Hel-X, this is one of the most efficient filtration biomedia structures ever produced, with a greater surface area than even the esteemed Kaldnes K1.

Drain Valve

proficlear_premium_foot_drain_valve

The watertight slide valve at the foot of the filtration unit allows water level to be dropped quickly. This is ideal should cleaning or maintenance be required, or should the system require draining for removal or relocation. Pipes can be connected to the outlet for gravity draining of the water to a soak away, main drain or planting bed.

Aeration Elements

proficlear_premium_compact_aeration

A large air stone at the base of the filter keeps the Hel-X 13 biological filtration media moving. The continuous circulation and oxygenation of the biomedia ensures efficient biological breakdown of soluble waste product. An AP4800 air pump mounted outside of the filter system is used to supply air to the air stone via a flexible air hose.

Digital Controls

proficlear_premium_digital_controller

The ProfiClear weatherproof control unit mounts externally. This digital control system connects and controls all devices within the filter unit, such as the drum motor and the cleaning pump. This allows the automated intelligent cleaning program or timed cleaning intervals to be set. The screen provides a visual water temperature reading on the digital display and detects issues.

Flexible Installation

proficlear_filter_bitron_uvc

The ProfiClear Compact filter unit allows for various methods of installation. The front features twin ports which allow a Bitron ECO 240w UV to be directly mounted to the filter box. There is also a separate 2" inlet port which will accept a direct hose pipe connection, ideal if the installation incorporates an inline UVC which cannot be directly fit, or if UV is not being used at all.

Waste Discharge

proficlear_premium_waste_outlet

Accumulated solid waste is automatically flushed out of the filter every time the drum performs a cleaning cycle. This ensures a continuous and regular removal of waste produce before it can begin to breakdown and cause anoxic conditions, which in turn enables the aerobic bacteria in the moving bed to work efficiently in oxygen saturated water.

Oase Proficlear Premium 200000 / 300000 / 400000 Set

	AquaMax Eco Expert 20000 / 12v	AquaMax Eco Expert 21000	AquaMax Eco Expert 26000			AquaMax Eco Expert 36000		AquaMax Eco Expert 44000
Dimensions (L x W x H) mm	490 x 215 x 210					540 x 250 x 220
Rated voltage	-	220 – 240 V / 50/60 Hz				220 – 240 V / 50 – 60 Hz
Rated voltage (primary, secondary)	220 – 240 V / 50 – 60 Hz, 12V / DC	-
Power consumption (watts)	30 - 260	40 - 350			60 - 440	90 – 540		140 - 700
Power cable length (metres)	8.00	10.00
Cable length 12 V-device	2.50 (Power unit) + 8.00	-
Net weight (Kg)	16.00	12.00					16.50
Guarantee + request guarantee (years)	3 + 2
Max. flow rate (L/min)	321	350		433			600		733
Max. flow rate (L/hr)	19300	21000		26000			36000		44000
Max. head height (metres)	4.60	8.00		8.50			9.00		9.50
Connection pressure-side (mm)	2”
Connection suction-side (mm)	2”						2 1/2”
Connection for hoses (mm)	1 1/2”, 2”
Filter intake surface (cm2)	1060						1120
Coarse debris displacement max. (mm)	11
Connection EGC	Yes
Electronically adjustable	Yes
Setup type	Can be setup underwater & dry
Item no. (GB-Version)	-
Item no.	55313	39916	39917			54614		54615

	Bitron Eco 120 W	Bitron Eco 180 W	Bitron Eco 240 W
Dimensions L x W x H (mm)	725 x 227 x 248
Rated voltage	220-240 V / 50/60 Hz
Power consumption (W)	120	180	240
Power cable length (M)	5.00
Net weight (Kg)	7.75	8.25	8.45
Guarantee + request guarantee	2 + 1 (Years)
UVC power (W)	120	180	240
Temperature display	Digital
UVC operating hours meter (H)	12000
Bypass control	Automatic
Number of inlets	1
Connections, inlet (mm)	38 / 50
Connections, inlet (inch)	1 ½”, 2”
Number of outlets	1
Connection, outlet (mm)	38 / 50
Connection, outlet (inches)	1 ½”, 2”
Max. flow rate (L/hr)	50000
Max. operating pressure (bar)	1.00
Suitable for ponds up to max. (m³)	120.0	180.0	240.0
Suitable for ponds with fish stock (m³)	60.0	90.0	120.0
Suitable for ponds with koi (m³)	30.0	45.0	60.0
Connection to	ProfiClear, BioTec 30, BioTec ScreenMatic² 140000
Other	LED function check

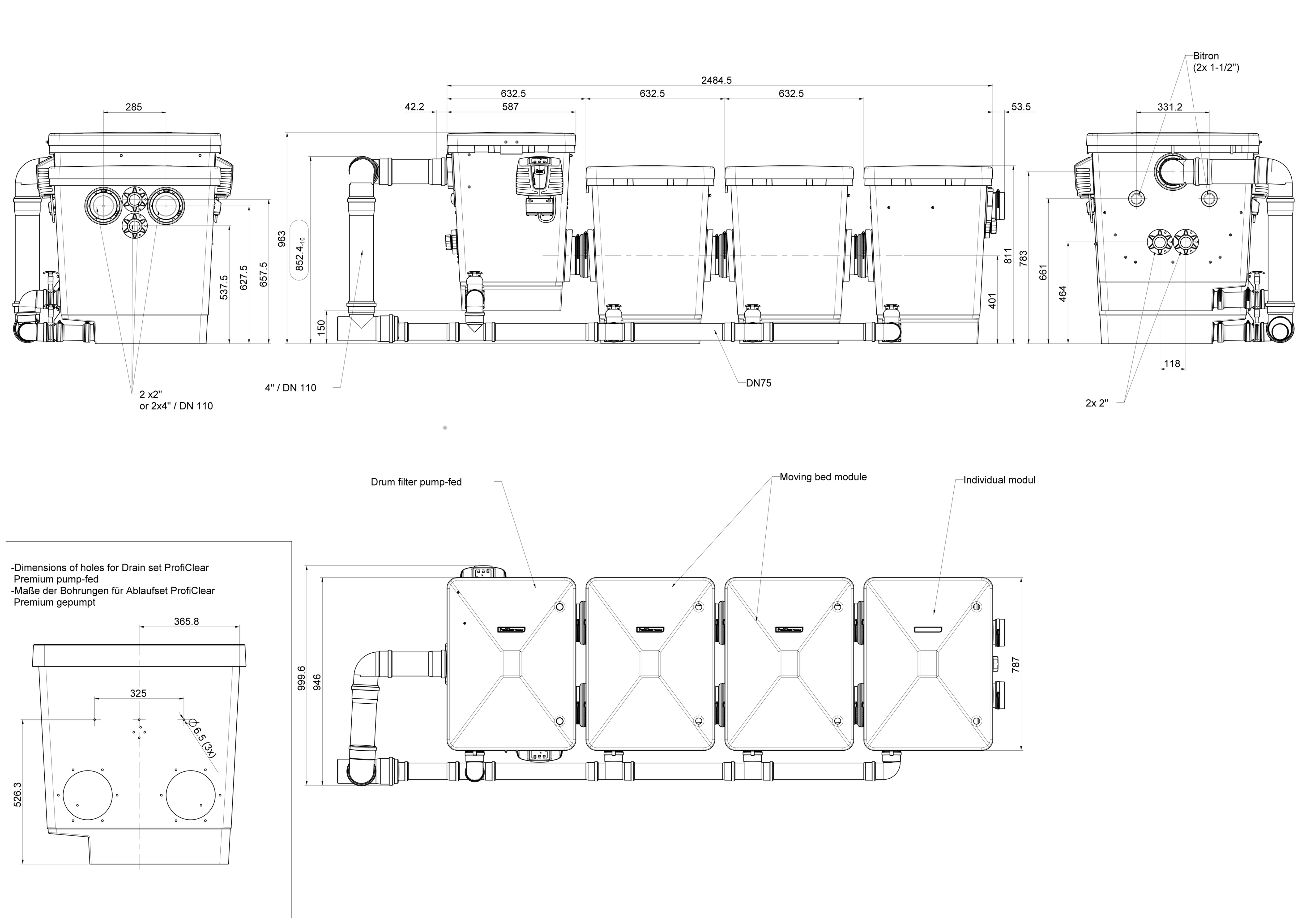

	ProfiClear Premium DF-L pump-fed EGC	ProfiClear Premium DF-L gravity-fed EGC
Dimensions L x W x H (mm)	830 x 600 x 820
Rated voltage	230 V / 50 Hz
Power consumption (W)	5
Power consumption cleaning (W)	1050
Cable length (M)	5.00 + 1.00	5.00 + 5.00
Net weight (Kg)	74.00	76.00
Guarantee + request guarantee	2 + 1 (Years)
Control unit	Microcontroller
Temperature display	Digital
Coarse debris extraction (µm)	60
Number of nozzles / cleaning flow rate	4 x 2.5 L/min
Scavenging pump	6 bar
Automatic self cleaning	Manually, Sensor, Time interval
Number of sieve elements (Unit)	8
Filter intake surface (cm²)	3454
Material	GRP Duroplast / Stainless steel
Number of inlets (Unit)	2	4
Connection inlet (mm)	50	-
Connection inlet	2 x 2” + Bitron	DN 110
Number of outlets (Unit)	2
Connections, outlet	DN 150
Connections, sludge discharge	DN 75, DN 110
Connection mud drain	DN 110
Connection to	Bitron C 72 – 110 W, Bitron Eco 120 – 240 W	Bitron Gravity
Liters per hour, min (L/hr)	10000
Max. flow rate (L/hr)	25000	33000
Installation height above water level	40.0	11.5
Possible water level difference	5 cm	-20mm
Type of use	Pump fed system	Gravity fed system
Other	Pollutant discharge incl. slide valve
Product characteristics	Filtration with a filter capacity to 60 µm Automatic self-cleaning A microcontroller system, suitable for outdoor use, monitors and controls the functions Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum Particularly quiet operation Quality high-pressure pump for flushing the drum in the scope of delivery Possibilities for connection to the Easy Garden Control System (EGC)
Item no. (GB-Version)	47004	47006
Item no.	47003	47005

	ProfiClear Premium Moving Bed Module	ProfiClear Premium Individual Module
Dimensions L x W x H (mm)	830 x 600 x 820
Net weight (Kg)	44.00	37.00
Guarantee + request guarantee	2 + 1 (Years)
Biological filter surface (m²)	47.8	-
Biological filter surface protected (m²)	40.3	-
Individual granulate filter	-
Number of sieve elements (Unit)	-
Material	GRP Duroplast	GRP Duroplast / Stainless steel
Number of inlets (Unit)	2
Connection inlet (mm)	180
Number of outlets (Unit)	2	4
Connections, outlet (mm)	-	50
Connections, outlet	DN 150	2 x 2” / 2 x DN 110
Connections, sludge discharge	DN 75
Liters per hour, min (L/hr)	10000
Max. flow rate (L/hr)	33000
Connection to	AquaOxy CWS 2000 - 4800	AquaMax Eco Gravity, Bitron Gravity
Installation height above water level (cm)	11.5
Type of use	Gravity fed system, Pump fed system
Other	Aeration pre-installed Pollutant discharge incl. slide valve Incl. 50l Hel-X 13 Biomedia	Pollutant discharge incl. slide valve
Product characteristics	Extremely large, protected settlement surface for micro-organisms (806 m²/m³) Innovative bypass technology for optimal movement of the Hel-X bio-elements Removal of toxins, such as ammonium / ammonia, nitrite and nitrate 50 l Hel-X decompose approx. 340 g of fish food per day (can be extended to 75 l / module). Aeration bar for oxygen enrichment and turbulence already installed Permanent, optimal oxygen supply, self-cleaning effect from dead biomass Pulling the slide valve flushes the debris out via a DN 75 discharge	Space saving pump and UVC chamber for Maximum flexibility in the connection through 2 x DN 110 and 2” transitions To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media – up to 8 litres fill volume Integrated bottom drain with high quality, finely engineered slide valve
Item no. (GB-Version)	-
Item no.	50772	50771
