OASE ProfiClear Premium Compact | Pump Fed - Water Garden UK
  • ProfiClear Compact-M EGC - Pump Fed

  • Following the highly successful OASE Proficlear Premium automated Drum Filter and Moving Bed Biological Filter, OASE Germany have developed the new Pump-Fed Proficlear Compact Filter System.

    The Compact Module contains both a scaled-down automated mechanical Drum Filter and Moving Bed technology into one compact module, making this ideal for Koi ponds of up to 20,000 Litres (4440 Gallons), Fish stocked ponds up to 40,000 Litres (8880 Gallons) and ornamental ponds of up to 80,000 Litres (17,770 Gallons).

    The Pump Fed Compact Module is designed for above water level installation and the Bitron C or Bitron Eco UV Clarifier can be mounted directly to the inlet of the drum for effective killing and flocculation of suspended algae, before being removed by the 80 micron sieve elements within the automated drum filter.  The mechanically cleaned water will then pass through the Moving Bed segment where the special Hel-X 13 Biomedia will biologically break down the soluble waste, creating guaranteed crystal clear water back to the pond.  Debris contained within the Drum Filter will be automatically ejected from the drum using high pressure jets during the rotating cleaning cycle.  The Compact Module is supplied with 40 Litres of Hel-X 13 Biomedia with the option to upgrade this to a maximum of 65 Litres.

      Find out more
    • QTY

      £2,769.99 inc. VAT

      £3,388.99

      £2,308.33 exc. VAT

    • Pay in 3 interest free payments of £923.33

    Description

    The OASE ProfiClear Premium Compact is now EGC compatible, meaning this system is suitable for DMX connection to the InScenio FM Master WLAN ECG wireless control system via an EGC Cable, and interlinking with other EGC compatible products such as filtration pumps and sumbersible lighting systems. This enables complete control of the filtration system and other EGC products from any location via a smart prone or tablet. The EGC link also provides infromation feedback on product performance and alerts the user to potential faults.

    Product video

    Additional Information

    Technical Info

    Technical Info

    OASE ProfiClear Premium Compact EGC - Key Product Features

    Rotary Drum

    Cleaning Pump

    Hel-X 13 BioMedia

    Drain Valve

    drum_filter

    proficlear_compact_pump_fed (3)

    hel-x_13_biomedia

    drain_valve

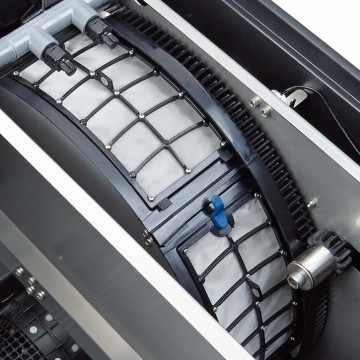

    The large rotating drum provides the first stage mechanical filtration screening out solid waste down to 80 microns through 6 removable fine mesh sieve screens. The drum can be timer operated or will clean automatically using the integral water level sensor in the filter box to detect accumulative waste blockage on the sieves.

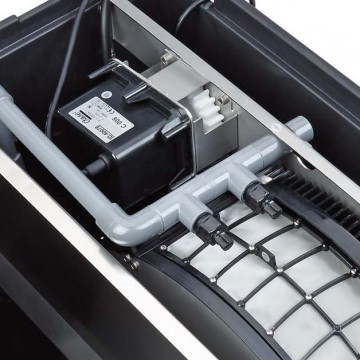

    Powerful cleaning pump sprays high pressure water jets over drum sieves during the cleaning cycles, this releases accumulated waste to be flushed out of the filter via the waste outlet on the front. The two spray nozzles are offset from one another to cover more sieve surface area/width and jet angles can be adjusted as required.

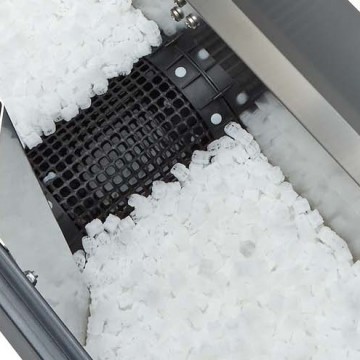

    Advanced Hel-X 13 particle biomedia with huge surface area maximises bacterial nitrification in second stage moving bed filtration chamber. With increased surface area of 13% over original Hel-X, this is one of the most efficient filtration biomedia structures ever produced, with a greater surface area than even the esteemed Kaldnes K1.

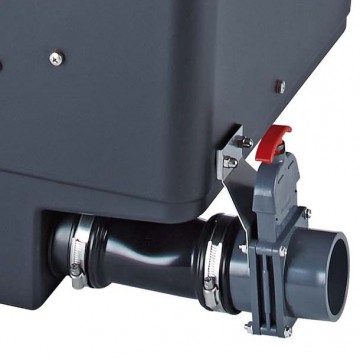

    The watertight slide valve at the foot of the filtration unit allows water level to be dropped quickly. This is ideal should cleaning or maintenance be required, or should the system require draining for removal or relocation. Pipes can be connected to the outlet for gravity draining of the water to a soak away, main drain or planting bed.



    Aeration Elements

    Digital Controls

    Flexible Installation

    Waste Discharge

    aeration_components_proficlear_compact

    compact_control_unit

    42906_PF_ProfiClearPremiumCompact80000setWM

    proficlear_compact_filter_pump_fed installation (2)

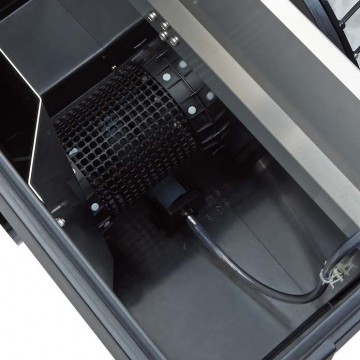

    Large perforated air outlet located in the bottom of the second stage moving bed filtration chamber. Connected to an air pipe exiting the filter module for simple connection to AquaOxy 2000 aerator pump required to circulate and oxygenate Hel-X 13 biomedia. Mesh sleeve ensures all media particles are contained within the aeration chamber.

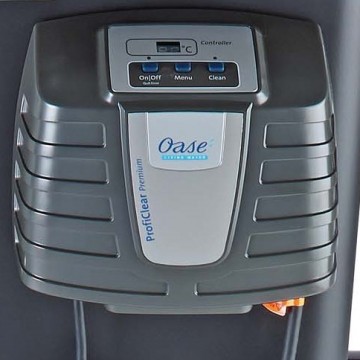

    The ProfiClear weatherproof control unit mounts externally. This digital control system connects and controls all devices within the filter unit, such as the drum motor and the cleaning pump. This allows the automated intelligent cleaning program or timed cleaning intervals to be set. The screen provides a visual water temperature reading on the digital display and detects issues.

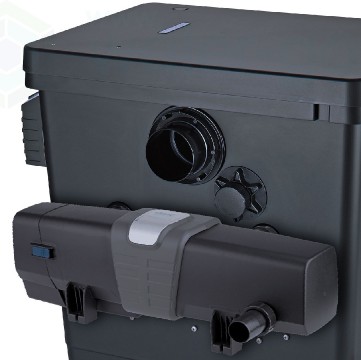

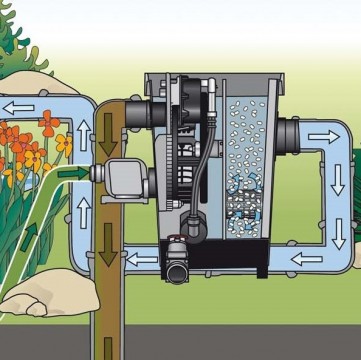

    The ProfiClear Compact filter unit allows for various methods of installation. The front features twin ports which allow a Bitron ECO UV to be directly mounted to the filter box. There is also a separate 2" inlet port which will accept a direct hose pipe connection, ideal if the installation incorporates an inline UVC which cannot be directly fit, or if UV is not being used at all.

    Accumulated solid waste is automatically flushed out of the filter every time the drum performs a cleaning cycle. This ensures a continuous and regular removal of waste produce before it can begin to breakdown and cause anoxic conditions, which in turn enables the aerobic bacteria in the moving bed to work efficiently in oxygen saturated water.



    OASE ProfiClear Premium Compact EGC - Technical Details.

    proficlear_premium_compact_egc_tech



    PondPads and Hel-X Media Maximum Quantities

     Only PondPadsMixture (Hel-X + PondPads)
     Max AmountMax Amount (Hel-X)Max Amount (PondPads)
    ProfiClear Premium FiltersLiterLiterLiter
    Compact M Pump Fed / Compact M Gravity Fed30400
    Compact L Pump Fed / Compact L Gravity Fed706020
    Moving Bed L505025
    Moving Bed XL10010050



    Performance Data

    Performance Data

    ProfiClear Premium Selection Table - Performance Capability.

    proficlear_ornamental

    proficlear_fish

    proficlear_koi

    ProfiClear Compact-M EGC - Pump Fed
